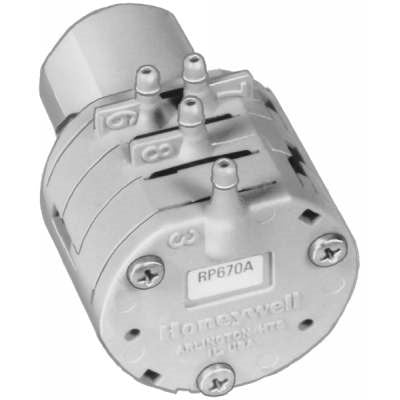

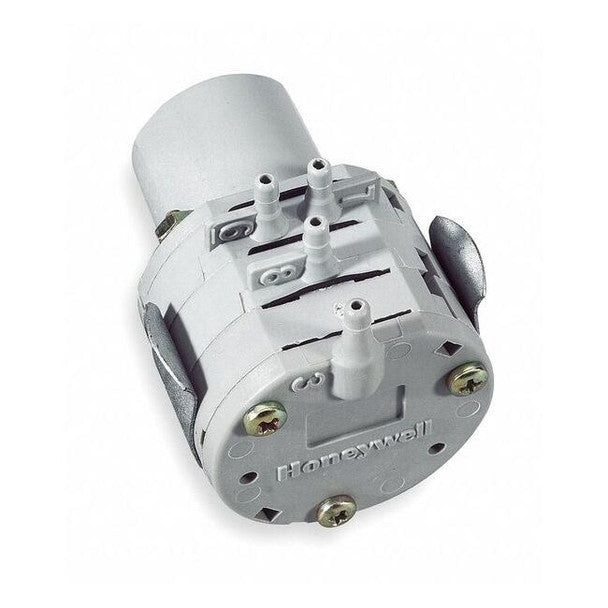

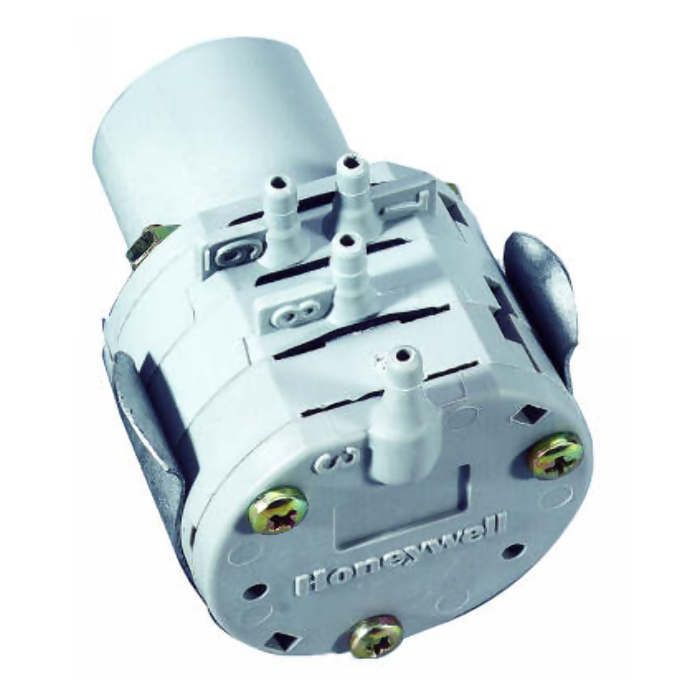

Honeywell RP670A1001/U pneumatic switching relay 3 and 7 psi with 1-1/2 inch mounting clip

Product Description

The HONEYWELL RP670A1001/U is a pneumatic switching relay designed for precise control in various pneumatic systems. This SPDT relay operates by blocking, diverting, or bleeding air lines when pilot pressure changes between 3 and 7 psi. It supports wall, in-line, or panel mounting, making it versatile for applications such as Day-Night, Summer-Winter, or Start-Stop systems. Constructed with molded plastic and neoprene diaphragms, it ensures reliable performance.

• SPDT relay operation for precise pneumatic control.
• Durable molded plastic construction with neoprene diaphragms and stainless steel lever.
• Versatile mounting options: wall, in-line, or panel, with included 1-1/2 inch mounting clip.

Product Highlights

This pneumatic switching relay offers SPDT operation within a 3-7 psi range, featuring durable construction and flexible mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RP670A1001/U
• Country of Origin: United States

Technical Specifications

• Relay Operation: SPDT
• Pressure Range: 3 And 7 psi
• Mounting Type: Wall, In-Line, or Panel
• Mounting Clip Size: 1-1/2 inch
• Application: Pneumatic Switching Relay
• Maximum Safe Operating Pressure: 30 psi
• Operating Temperature Range: 0 F to 140 F
• Operating Humidity Range: 5 to 95% RH
• Air Connections: Barb fittings 5/32 in. (4 mm) O.D. plastic tubing
• Air Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Category: Commercial Building Controls
• Product Type: Pneumatic Products
• Body Material: Plastic
• Control Action: Direct Acting
• Control Signal: Floating
• Diaphragm Material: Neoprene
• Maximum Differential Pressure: 0.5 psi
• Subcategory: Heating & Cooling
• Item Number: RP670A1001
• Alternate Part Numbers: 00085267083065, RP670A 1001, RP670A-1001
