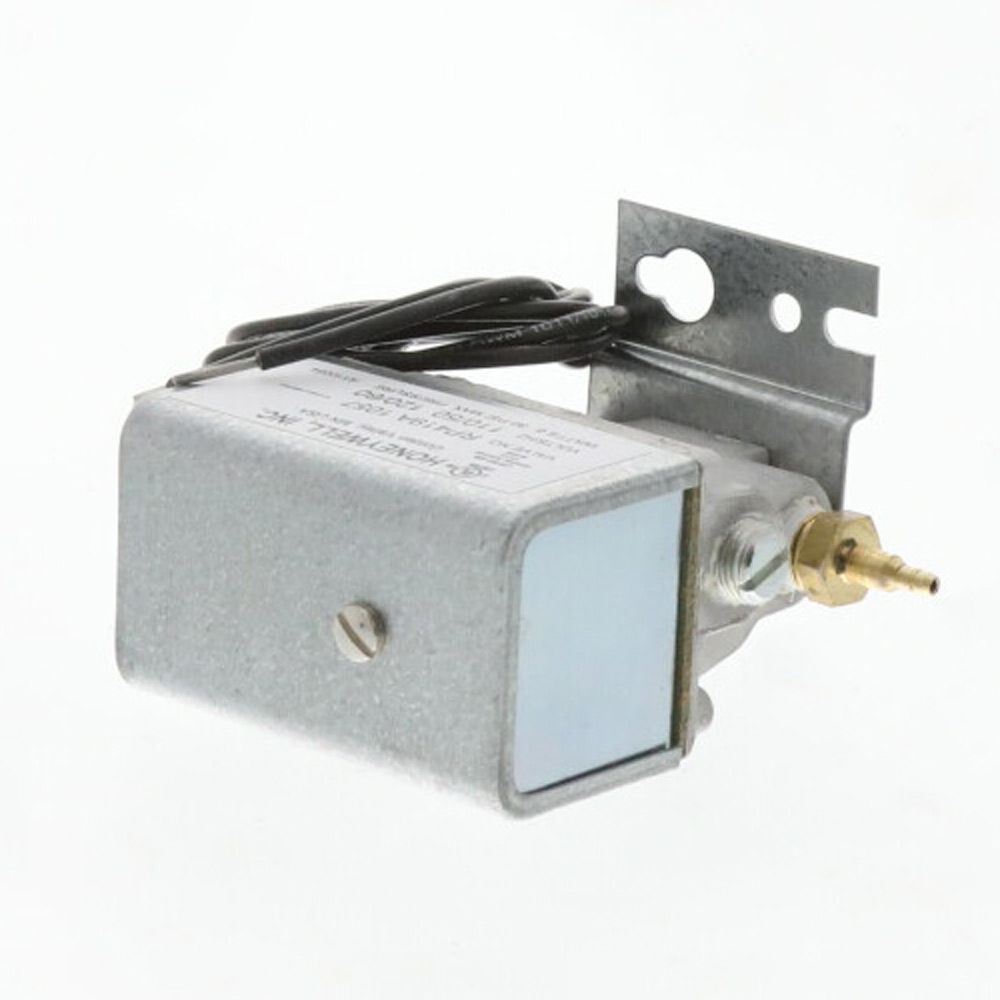

Honeywell RP419A1057 E-P Relay 120V 50Hz

Product Description

The Honeywell RP419A1057 E-P Relay is designed for industrial applications that require precise switching control. It operates on 120V with a frequency of 50Hz, providing reliable performance in various electrical systems.

• 120V operating voltage
• Industrial-grade construction
• Compact design

Product Highlights

This relay offers seamless integration into existing systems and can be used in automation, control systems, instrumentation, and machinery. It ensures dependable switching for critical applications.

Product Information

Standard Information

• Item Number: RP419A1057
• Brand: Honeywell
• Model: RP419
• Replaces: RP418A1057

Technical Specifications

• Type: Electric / Pneumatic Relay
• Operation: Energized: ports 1 and 3 connected, port 2 blocked; De-energized: ports 2 and 3 connected, port 1 blocked
• Airflow Usage: 0.42 scfm at 20 psi supply with 1 psi pressure drop
• Capacity: 0.075 Cv minimum
• Air Connections: Barbed fitting for 1/4 inch O.D. plastic tubing
• Electrical Connections: Junction Box and 15-inch leads
• Frequency: 50 Hz
• Mounting: Surface
• Operating Humidity Range: 5 to 95% RH
• Dimensions: 2 7/8 inches high x 3 13/16 inches wide x 1 1/4 inches deep
• Temperature Range: 0 F to 100 F / -18 C to +38 C
• Includes: Junction Box
