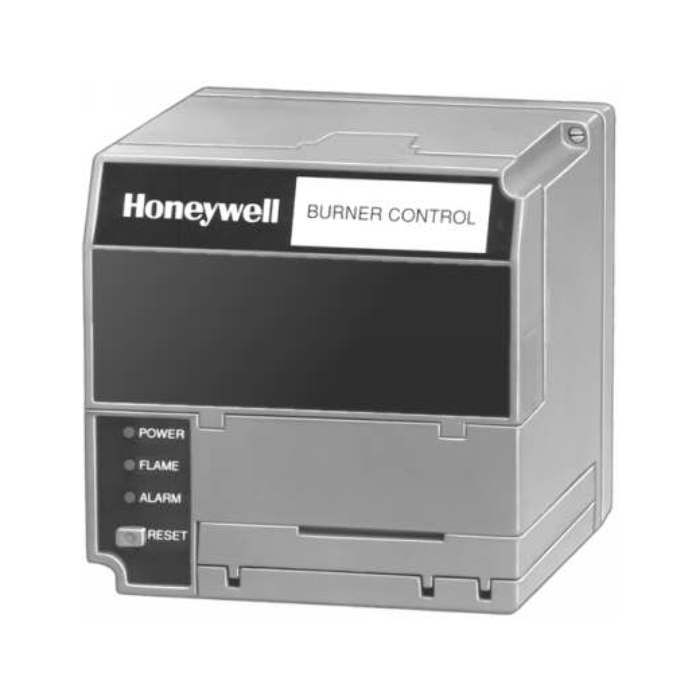

Honeywell RM7898A1000/U On-Off Primary Burner Control With VPS 120 VAC 50/60 Hz

Product Description

The HONEYWELL RM7898A1000/U is an On-Off Primary Burner Control with VPS, operating at 120 VAC, 50/60 Hz. It features selectable pilot types and a 4 or 10 second pilot flame establishing period. This control includes a blinking LED fault annunciation feature and is designed for use with 7800 Series Amplifiers. Its prepurge is determined by an ST7800A Purge Timer Card, and interlocks are selectable.

• Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics, and troubleshooting.
• Features programmable post purge and valve proving with an S7800A1142 Keyboard Display (not provided).
• Power LED blinks a fault code on safety shutdown for quick issue identification.

Product Highlights

Integrated primary burner control with automatic sequencing, flame supervision, and fault annunciation for gas, oil, or combination fuel applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RM7898A1000/U

Technical Specifications

• Prepurge: Determined By ST7800A Purge Timer Card
• Interlocks: Selectable
• Application: On-Off Primary Control With VPS
• Operating Temperature: -40 F To 140 F
• Approvals: UL, FM, CSA
