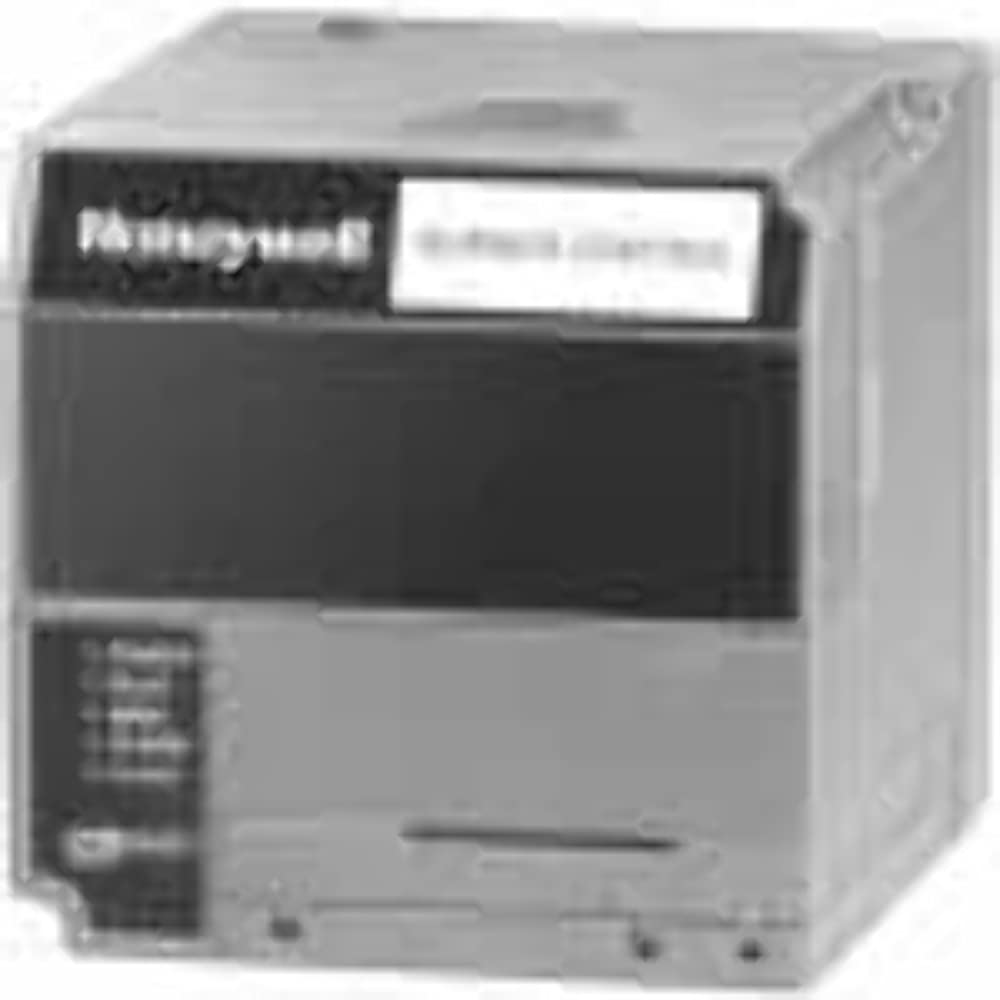

Honeywell RM7896C1010 On-Off Primary Control with Pre and Post-Purge

Product Description

The Honeywell RM7896C1010 is an On-Off Primary Control. This control includes pre and post-purge functionalities. It is designed for industrial burner applications. It features microprocessor-based integrated burner control for gas, oil, coal, or combination single burner applications. This product ensures safety and functional capabilities beyond conventional controls.

• Microprocessor-based burner control
• Flame supervision and system status indication
• Optional remote or local annunciation

Product Highlights

Provides automatic burner sequencing, system status indication, and troubleshooting capabilities. Includes options such as a PC interface, keyboard display module, and nonvolatile memory.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RM7896C1010

Technical Specifications

• Voltage: 120v
• Weight: 2.65 lbs
• Interlocks: Selectable
• Pilot Type: Interrupted
• Application: On-Off Primary Control with Pre and Post-Purge
• Shipping Depth: 30 inches
• Shipping Width: 15 inches
• Shipping Height: 12 inches
