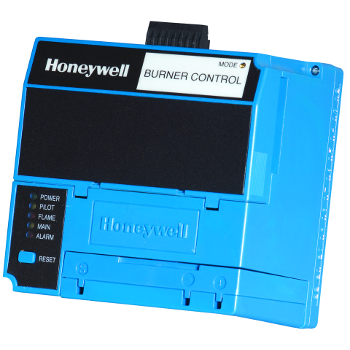

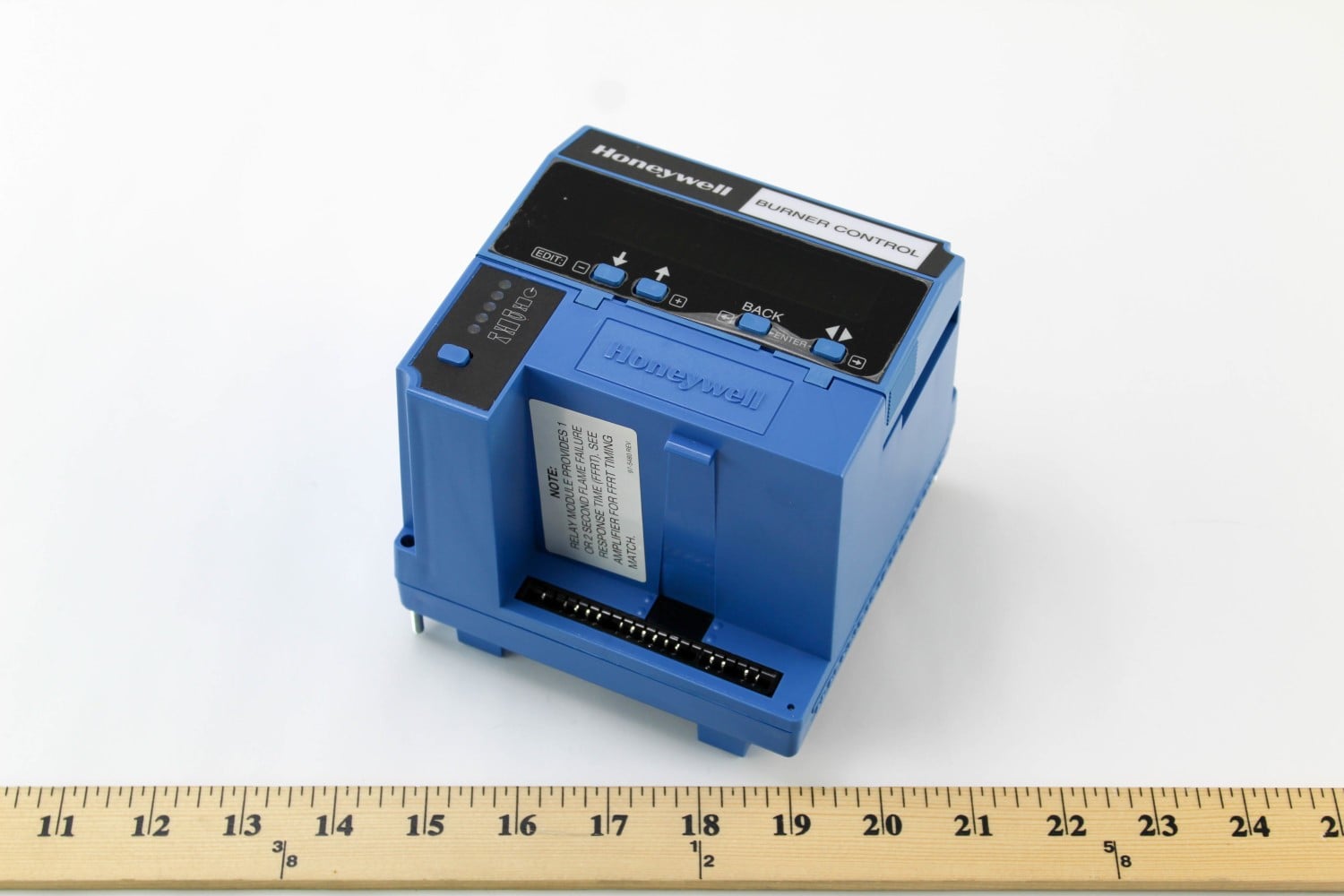

Honeywell RM7838C1020 F.S.G. Burner Control Module 120 VAC (EA)

Product Description

The Honeywell RM7838C1020 is a semi-automatic burner control module in the 7800 Series designed for combustion control applications. It operates at 120 VAC and provides preignition, interrupted-pilot ignition sequencing, lockout interlocks, and a display for status indication. Timing functions include a 5-second early spark termination, selectable 4- or 10-second pilot establishing periods, and a 10-second or intermittent main flame establishing period; prepurge is determined by an ST7800A purge timer card.

• 120 VAC operation for semi-automatic programming control and interrupted-pilot burner applications
• Selectable timing: 4 or 10 s pilot establishing period; 10 s or intermittent main flame establishing period; 5 s early spark termination
• Preignition supported, prepurge determined by ST7800A purge timer card, lockout interlocks and included display for status

Product Highlights

7800 Series relay module providing interrupted-pilot sequencing, programmable timing options, and lockout diagnostics for industrial combustion systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RM7838C1020
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• MPN: RM7838C1020
• Product Name: F.S.G. Burner Control Module
• Application: Semi Automatic Programming Control
• Input Voltage: 120 VAC
• Frequency: 50 Hz; 60 Hz (±10%)
• Pilot Type: Interrupted
• Prepurge: Determined by ST7800A purge timer card
• Preignition: Yes
• Early Spark Termination: 5 sec
• Pilot Flame Establishing Period: 4 sec or 10 sec
• Main Flame Establishing Period: 10 sec or intermittent
• Interlocks: Lockout
• Display Included: Yes
• Includes: S7800 display
• Compatible Subbases: Honeywell Q7800A/B
• Required Components: Q7800A/B wiring subbases; R7847, R7848, R7849, R7851, R7852, R7861, or R7886 flame signal amplifiers; ST7800C plug-in purge timer card
• Approvals: UL Component Recognized (File No. MP268; Guide No. MCCZ), CSA Certified (File No. LR95329-3), FCC Part 15 Class B, CSD-1 acceptable, Swiss RE acceptable, Factory Mutual (Report No. OX4A5.AF), Gastec EN268 Report 1156791
• Vibration Rating: 5 G environment
• Storage and Operating Temperature Range: -40 °F to +140 °F (-40 °C to +60 °C)
• Weight (manufacturer spec): 3.00 lb
• Country of Origin: Mexico
• Category: Combustion Controls > 7800 Series > Relay Modules
• Harmonized Code: 8537109170
