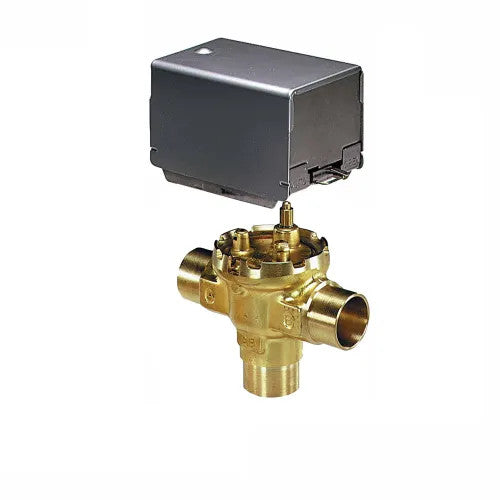

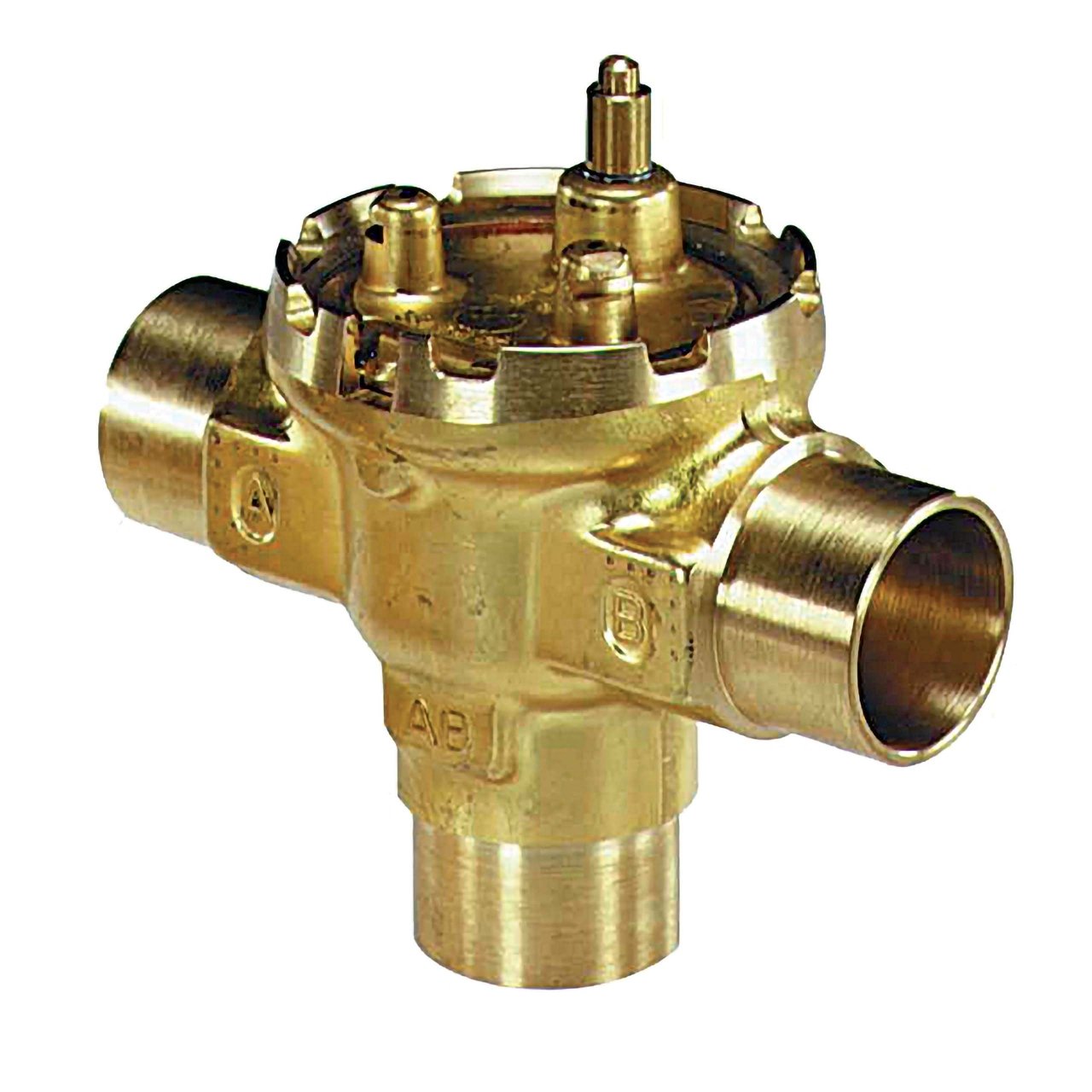

Honeywell Residential VU54S2024 1 inches Sweat 3 Way Fan Coil Valve Body 7 Cv 12 Psi Differential Short-body

Product Description

The HONEYWELL RESIDENTIAL VU54S2024 is a 1" sweat, 3-way fan coil valve body with a 7 Cv and 12 Psi differential. It is designed for controlling the flow of hot or chilled water in commercial HVAC equipment, such as fan coil units, terminal reheat coils, and convectors. The valve's three-way mixing design blends hot and chilled water to maintain stable room temperatures.

• Controls flow of hot or chilled water
• 7.0 Cv/6.5 Kvs flow coefficient
• Maximum operating pressure of 300 psi

Product Highlights

This valve ensures precise climate control in commercial and residential HVAC systems, reducing energy consumption and utility costs.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: VU54S2024

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: VU54S2024
• Valve Ball Material: Buna-N (NBR) Rubber
• Valve Disc Material: Buna-N (NBR) Rubber
• Product Height: 5.44 in, 138 mm
• Product Width: 2.5 in, 64 mm
• Connection Type: Sweat
• Differential pressure for close-off (Max): 10 psi, 69 kPa
• Flow Coefficient: 7.0 Cv|6.5 Kvs
• Media Temperature (Min): 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid
• Media Temperature (Max): 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid
• Operating Pressure (Max): 300 psi, 2000 kPA, PN20
• Valve Body Material: Brass
• Valve Body Pattern: Three-way, A-AB-B
• Valve Flow Characteristic: Quick Opening
• Valve Seat Material: Brass
• Valve Start Position: Diverting
• Valve Stem Material: Brass
• Manufacturer: Resideo
• Connection Size: 1"
• Other Info: CSA Certified
• Type: Mixing Valve
