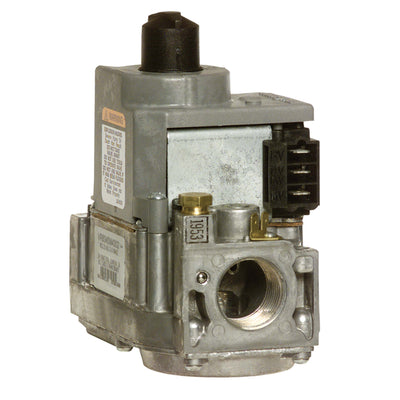

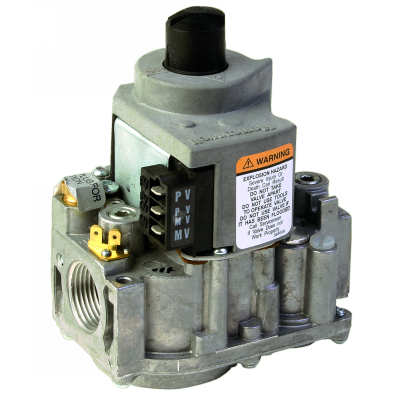

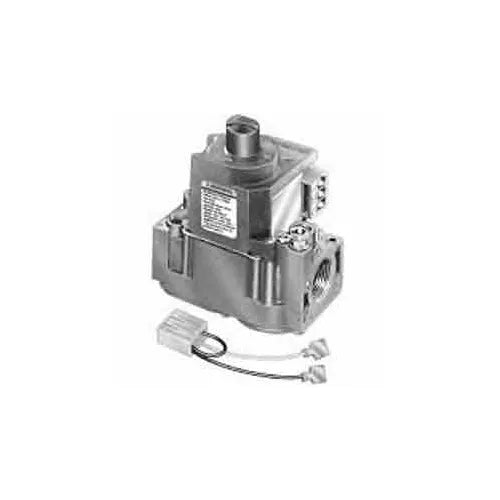

Honeywell Residential VR8345H4555 24 Vac Dual Direct Ignition/Intermittent Pilot Gas Valve with 3/4 inches X 3/4 inches Inlet/Outlet Slow Opening

Product Description

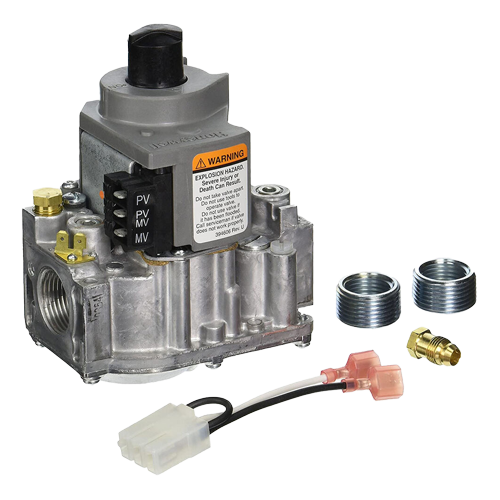

The Honeywell Residential VR8345H4555 is a 24 Vac Dual Direct Ignition/Intermittent Pilot Gas Valve with 3/4" X 3/4" inlet/outlet and slow opening. Designed for residential and commercial applications, it features a 3.5" WC pressure regulator setting. The valve includes an LP kit and reducer bushings for added versatility. With a maximum BTU rating of 300000.

• 24 Vac operation
• Dual direct ignition/intermittent pilot
• 3/4" X 3/4" inlet/outlet
• Slow opening
• 3.5" WC pressure regulator setting

Product Highlights

This gas valve offers reliable and efficient operation, a versatile design, and easy installation, making it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: VR8345H4555

Technical Specifications

• Item Number: VR8345H4555
• Brand: HONEYWELL RESIDENTIAL
• Product Category: Thermostats and Controls
• Product Line: VR8345
• Gas Type: Natural Gas
• Ignition Type: Direction Ignition/Intermittent Pilot
• Opening Characteristic: Slow Opening
• Gas Conversion Kit: Not Convertible
• Voltage: 24 Volts
• Phase: 1
• Frequency: 60 Hz
• Supply Connection: 3/4 Inch
• Return Connection: 3/4 Inch
• UL Listed: Yes
• American Gas Association Certification: Yes
• Canadian Gas Association Certification: Yes
• Material: Stainless Steel
• Exterior Finish: Brass
• Inlet Connection Type: Threaded
• Number of Ports: 2
• Specification Met: CSA, ULC
• Manufacturer: HONEYWELL
• Part Number: VR8345H 4555
• Item model number: VR8345H4555
• Is Discontinued By Manufacturer: No
• Outlet Size: 3/4 in
• Inlet Size: 3/4 in
• Type: Straight-Through
• Opening Type: Slow
• For Use With: Natural/Manufactured Gas,LP Gas
• BTU/hr Max: 300000
• BTU/hr Min: 30000
• Description: Dual Direct Ignition/Intermittent Pilot Gas Valve
• Max Operating Pressure: 1/2 psi
• Manufacturers Part Number: VR8345H4555
• Fuel Type: Natural Gas
• Warranty: 1 yr
• Size: 3/4
