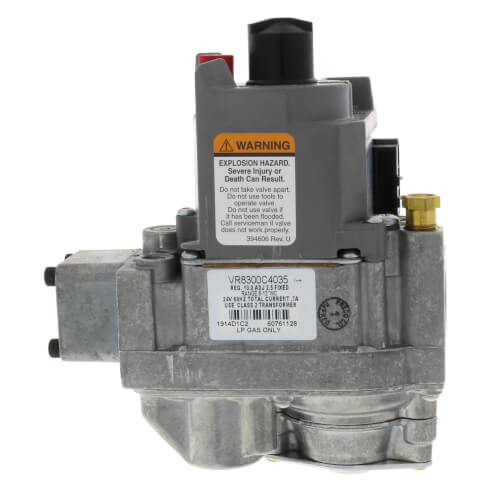

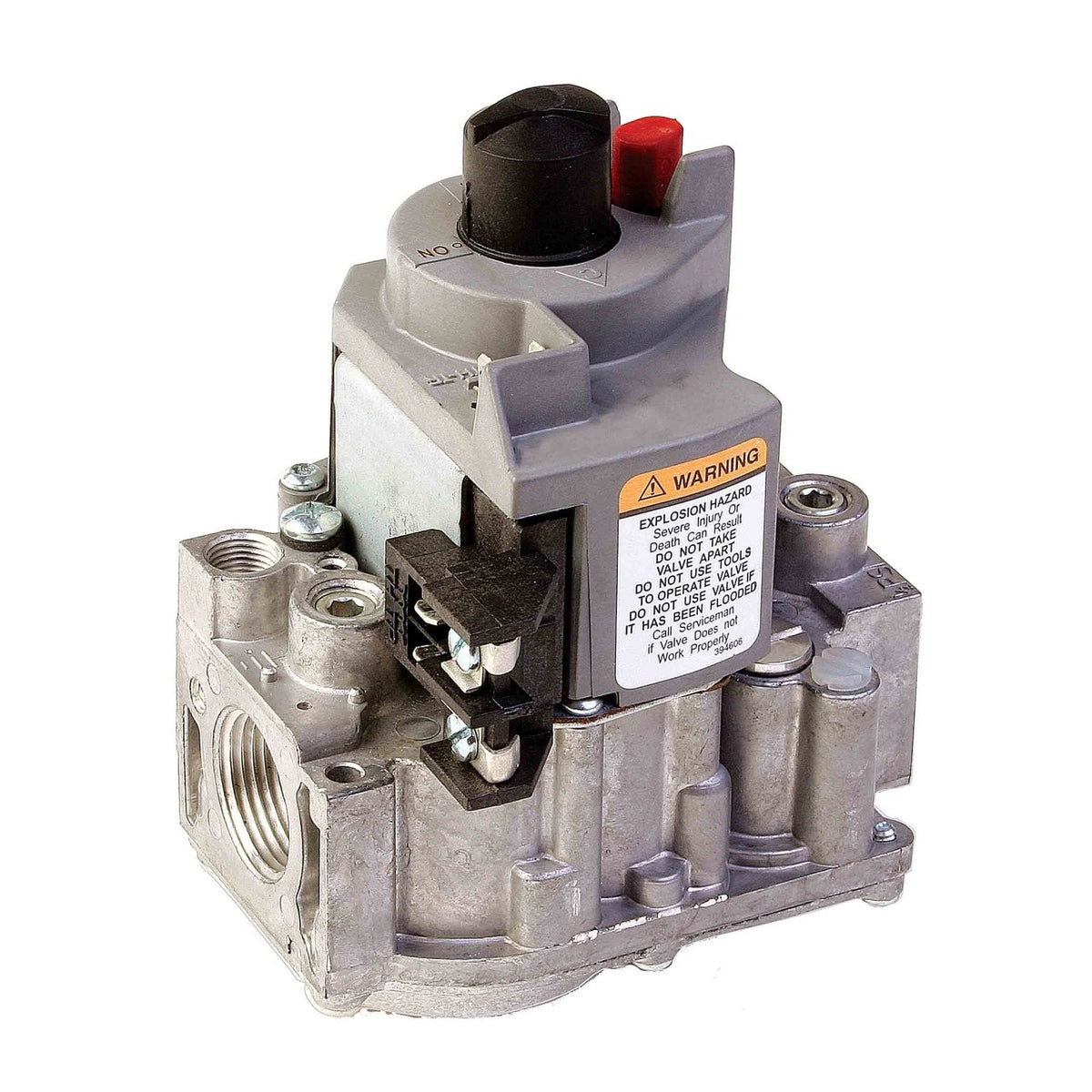

Honeywell Residential VR8300C4035 Dual Standing Pilot Gas Valve 3/4 inches X 3/4 inches

Product Description

The Honeywell Residential VR8300C4035 is a 24 VAC dual standing pilot gas valve designed for continuous pilot appliances. It features a 3/4" x 3/4" inlet/outlet and supports capacities from 20 to 300 cfh. This valve includes a manual valve, two automatic operators, a servo pressure regulator, and pilot adjustment. It is suitable for furnaces, boilers, and water heaters.

• Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
• Use with S86F,H; S8600F,H and S8610 Control Modules.
• Compact size.

Product Highlights

Dual standing pilot gas valve with 3/4" x 3/4" connections, designed for continuous pilot appliances with capacities from 20 to 300 cfh.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: VR8300C4035
• Country of Origin: US

Technical Specifications

• Ignition Type: Standing Pilot
• Fuel Type: Propane
• Body Pattern: Straight-Through
• Capacity (BTU): 200000
• Pressure Rating: 1/2 psi
• Min Temp (F): 0 °F
• Max Temp (F): 175 °F
• Temperature Range (F): 0 °F to 175 °F
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Application: Single-Stage Step Opening Valve for Standard Pilot
• Type of Fuel: LPG
• Capacity (Min): 30,000 BTU/h
• Operating Voltage: 24 V AC
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Regulation Type: Step Opening
• Operating Pressure (Max): 1/2 psi
• Product Features: Lite-Rite (OFF-PILOT-ON) lighting sequence
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): 0 °F, -18 °C
• Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association: 4717
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
• Product Height: 5.38 in, 135 mm
• Product Width: 4.06 in, 104 mm
• Item Number: VR8300C4035
• Brand: HONEYWELL RESIDENTIAL
• Manufacturer: Honeywell
• Product Type: Replacement Part
• Compatibility: Gas Valves
