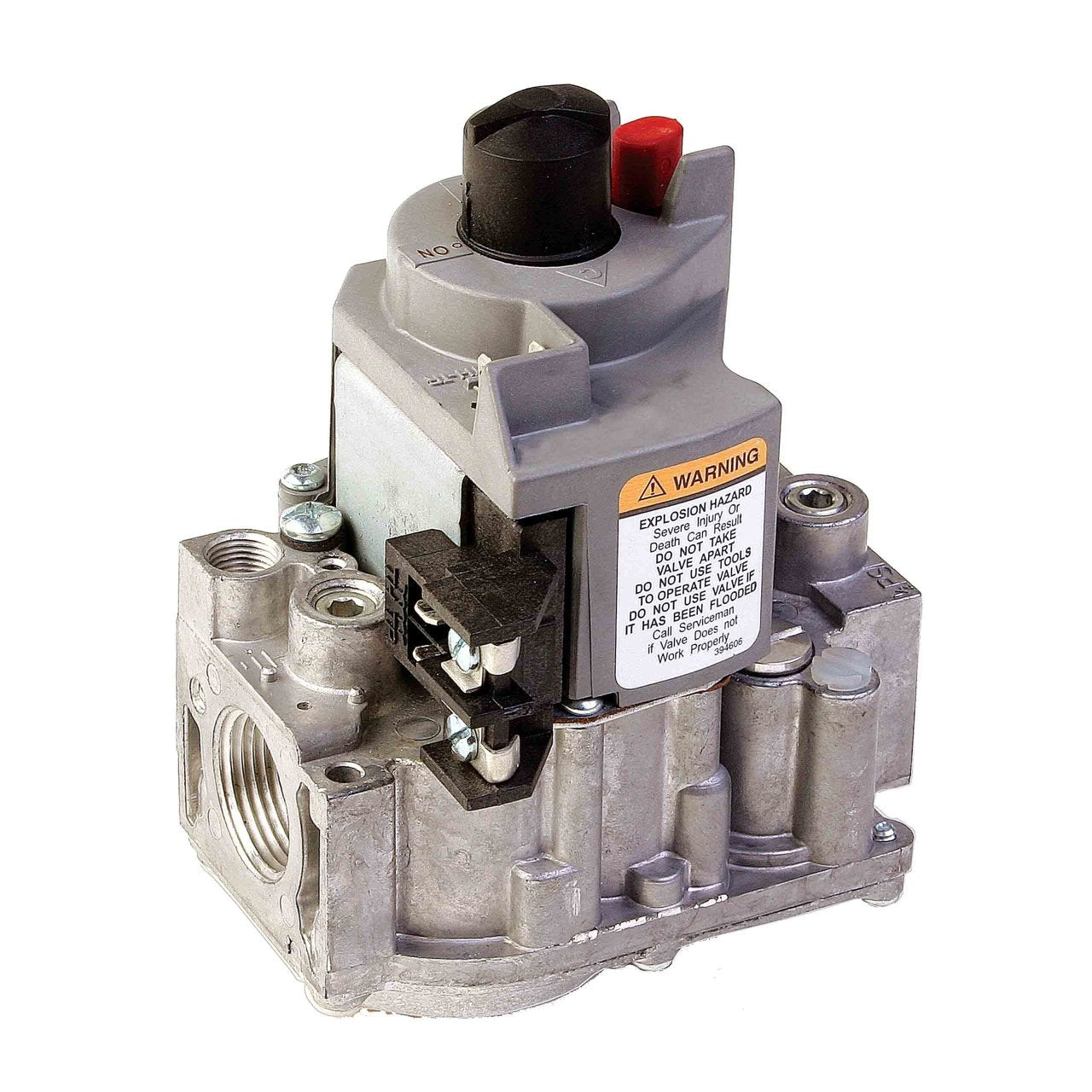

Honeywell Residential VR8300A3500 24v Standing Pilot Natural Gas Valve 1/2 inches x 3/4 inches 190000 BTU

Product Description

The HONEYWELL RESIDENTIAL VR8300A3500 is a 24v standing pilot natural gas valve with 1/2" X 3/4" connections and a 190000 BTU capacity. It offers safety shutoff, a manual valve, two automatic operators, a pressure regulator, and pilot adjustment. The valve includes an LP kit and one reducer bushing for versatile installation.

• Includes LP Kit
• Includes One Reducer Bushing
• 190000 BTU

Product Highlights

This gas valve provides precise gas flow control and leak prevention for industrial applications. It ensures reliable operation and reduces maintenance costs.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: VR8300A3500
• Country of Origin: Unknown

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: VR8300A3500
• Gas Type: Natural Gas
• Ignition Type: Standing Pilot
• Opening Characteristic: Standard
• Gas Conversion Kit: Convertible with included LP Kit
• Voltage: 24 Volts AC
• Frequency: 60 Hz
• Supply Connection: 1/2 Inch
• Return Connection: 3/4 Inch
• Product Height: 5.38 in
• Product Width: 4.06 in
• Product Length: 2.69 in
• UL Listed: Yes
• American Gas Association Certification: Yes
• Canadian Gas Association Certification: Yes
• Material: Metal
• Inlet Connection Type: Threaded
• Outlet Connection Type: NPT
• Number of Ports: 2
• Outlet Connection Size: 3/4 in
• Manufacturer: Honeywell
• Item model number: VR8300A3500
• Valve Size: 1/2" x 3/4"
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Iron Body
• Valve Application: Gas
• Max Pressure: 1/2 psi WOG
• Gas Control Valve Type: Single Stage
• Applicable Standard: CSA, UL
• Port Connection: 1/2" x 3/4"
• Input Supply Rating: 24 Volt AC at 60 Hertz
• Temperature Rating: 0 to 175 Deg F
• Pressure Rating: 1/2 PSI
• Mounting Details: Vertical Mount
• Media Handled: Gas
• Application: Residential Combustion Control
• Overall Dimension: 4-1/16" Length x 2-11/16" Depth x 5-3/8" Height
• Electrical Connection: 1/4" Quick-Connect Male Terminal
• Body Pattern: Straight-Through
• Capacity (Max): 290,000 BTU/h Natural Gas
• Capacity (Min): 30,000 BTU/h Natural Gas
• Operating Voltage: 24 V AC
• Inlet Connection Size: 1/2 in
• Regulation Type: Standard Opening
• Includes: Natural to LP Conversion Kit, One 3/4 in x 1/2 in Reducer Bushings
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): 0 °F, -18 °C
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Operating Frequency: 60 Hz
• Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
