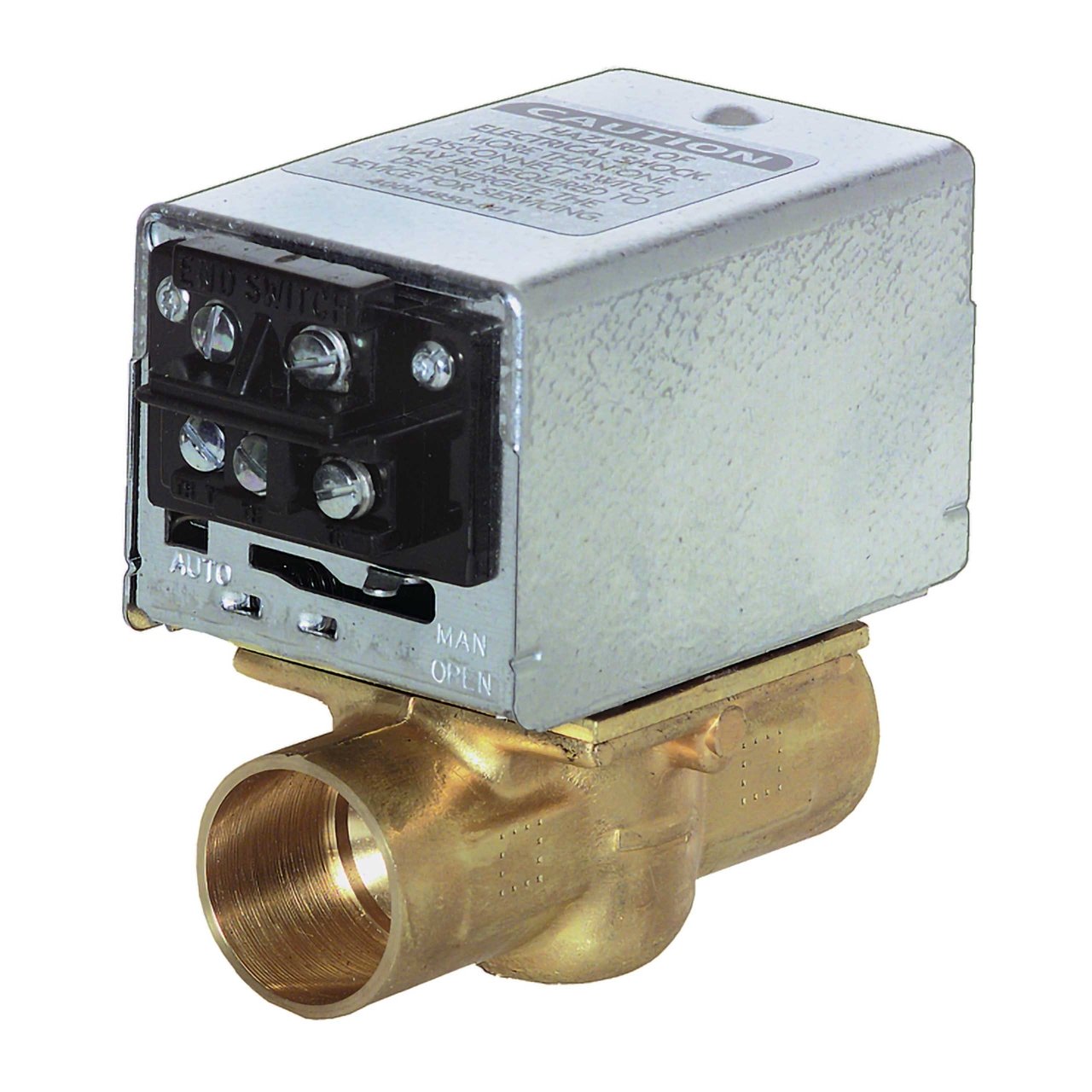

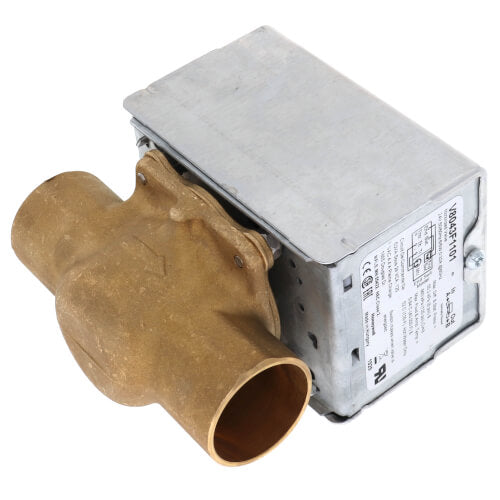

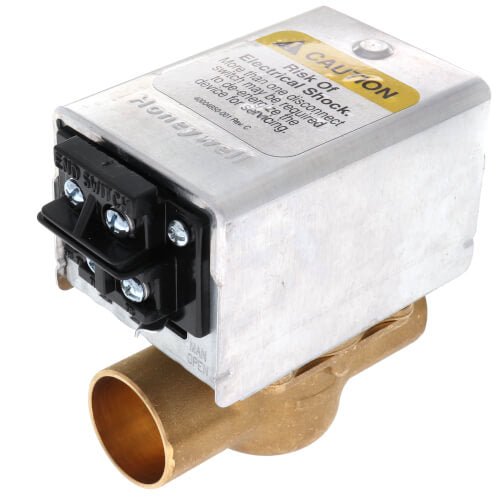

Honeywell Residential V8043F1101 24v Zone Valve 1 inches Sweat 2 Pos N/C With End Switch Cv=8.0

Product Description

The Honeywell Residential V8043F1101 24v Zone Valve is an essential component for controlling the flow of hot water in your hydronic heating system. Features two-position operation for precise control, a 1" sweat connection for easy installation, and a normally closed configuration to prevent unwanted water flow. It has a Cv rating of 8.0 and includes an end switch for system monitoring.

• Provides precise control over water flow with two-position operation.
• Features a 1" sweat connection for easy installation with copper piping systems.
• Ensures the valve remains closed when not energized with its normally closed configuration.

Product Highlights

This zone valve is ideal for industrial and commercial buildings, offering reliable performance and advanced features for optimal HVAC system control.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: V8043F1101
• Country of Origin: US

Technical Specifications

• Item Number: V8043F1101
• Brand: HONEYWELL RESIDENTIAL
• Application: Hydronic Control
• Connection Type: Sweat
• Pipe Size: 1”
• Body Pattern: Two-way, Straight-through
• Capacity: 8 Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure (psi): 8 psi
• Fluid Temperature Range: 200 F Max.
• Electrical Connections: screw terminal block
• Power Consumption: 7.7 VA
• Nominal Timing (sec, min): 15 Seconds
• Valve Action: Spring return to close
• Maximum Ambient Temperature (F): 125F
• Auxiliary End Switch: SPST
• End Switch Rating: 50 VA pilot duty @ 24 V
• Type: 2 position
• Static Pressure: 300 psi
• Voltage: 24v
• Frequency: 60 Hz
• Manual Opener: Yes
• Valve Type: Zone
• CV Value: 8
• Phase: 1
• Connection Size: 1 Inch
• Product Height: 3 9/16 Inches
• Product Width: 2 3/4 Inches
• Product Length: 3 3/4 Inches
• UL Listed: Yes
• Parts Warranty: 1 Year
• MPN: V8043F1101
• UPC: 85267109796
• Model: V8043F
• Valve Size: 1"
• Valve Connection: Sweat
• Piping Configuration: Straight
• Body Material: Brass
• Valve Application: Water
• Max Pressure: 125 psi WOG
• Amperage Rating: 0.32 A
• Coefficient of Volume: 8 Cv
• Domestic/Import: Import
• End Style: C
• Material: Brass
• Nominal Size: 1 in
• Pressure Rating: 125 psi
• Series: V8043
• 2-Way Low Voltage: 2-Way Low Voltage
• Voltage Rating: 24 VAC
• Water Temperature: 50 to 200 deg F
