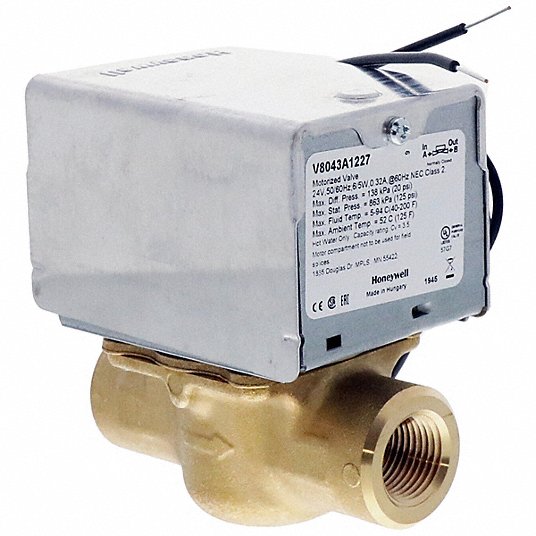

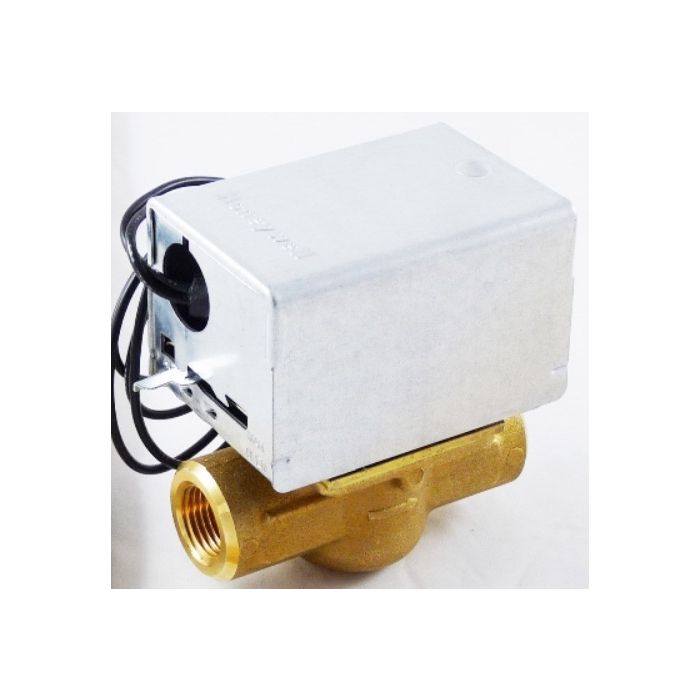

Honeywell Residential V8043A1227 2 Way N.C. Zone Valve 1/2 inches NPT 3.5 Cv Less Aux. Switch

Product Description

The HONEYWELL RESIDENTIAL V8043A1227 2-Way Zone Valve is designed for fluid control in hydronic heating and cooling systems. This valve isolates and controls the flow of water or other liquids, ensuring temperature regulation. It features 1/2-inch NPT connections for integration into existing piping. The valve's 3.5 Cv capacity handles flow rates up to 3.5 gallons per minute.

• 24-volt operation for precise flow control and energy efficiency
• 1/2-inch NPT (National Pipe Thread) connections for seamless integration
• 3.5 Cv capacity handles flow rates up to 3.5 gallons per minute

Product Highlights

Ideal for hydronic heating and cooling systems, offering flow control, energy efficiency, and durability.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: V8043A1227
• Country of Origin: Hungary

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: V8043A1227
• Application: Chilled/Hot Water
• Control Signal: On/Off
• Spring Action: Spring Return
• Port Connection Size: 1/2 in
• Port Connection Gender: Female
• Port Connection Type: NPT
• Distance Between Inlet and Outlet Port: 3-11/16 in
• Cv Flow Rate: 3.5
• Close-Off Pressure: 20 psi
• Valve Type: Ball
• Valve Action: Normally Closed
• Gasket Material: Buna-N
• Body Material: Brass
• Stem Material: Stainless Steel
• Installation Orientation: Horizontal
• For Media: Water
• Voltage: 24V AC
• Frequency: 50/60 Hz
• Includes Electrical Leads: Electrical Leads Included
• Electrical Lead Length: 18 in
• Includes Actuator: Actuator Included
• Actuator Type: Electric
• Actuator Return Action: Spring Return
• Fluid Temperature - Minimum: 50 °F
• Fluid Temperature - Maximum: 200 °F
• Operating Temperature - Maximum: 125 °F
• Standards: CSA; UL Listed
• Overall Length: 4 in
• Overall Width: 3-3/4 in
• Overall Depth: 2-3/8 in
• Valve Size: 1/2"
• Valve Connection: NPT
• Piping Configuration: Straight
• Max Pressure: 125 psi WOG
• Type: Normally Closed
