Product Description

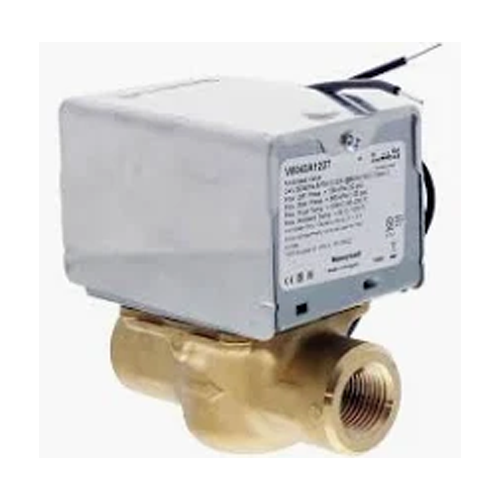

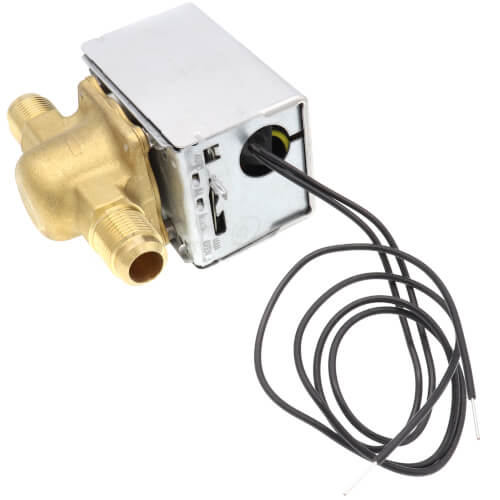

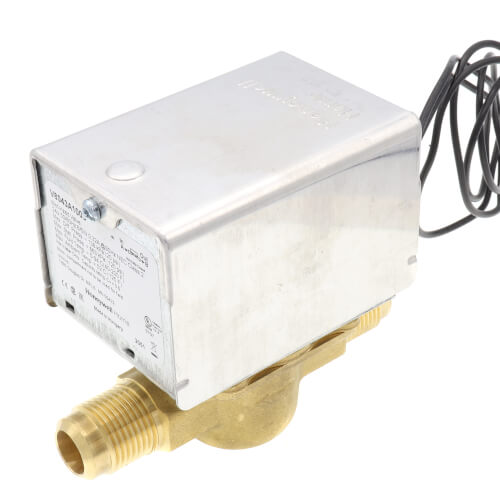

The HONEYWELL RESIDENTIAL V8043A1003 is a 24V zone valve with a 1/2" flare connection and a 2-position normally closed (NC) configuration. This low voltage valve consists of an actuator and valve assembly for controlling the flow of hot water in hydronic systems. It features a manual opener for valve operation during power failures.

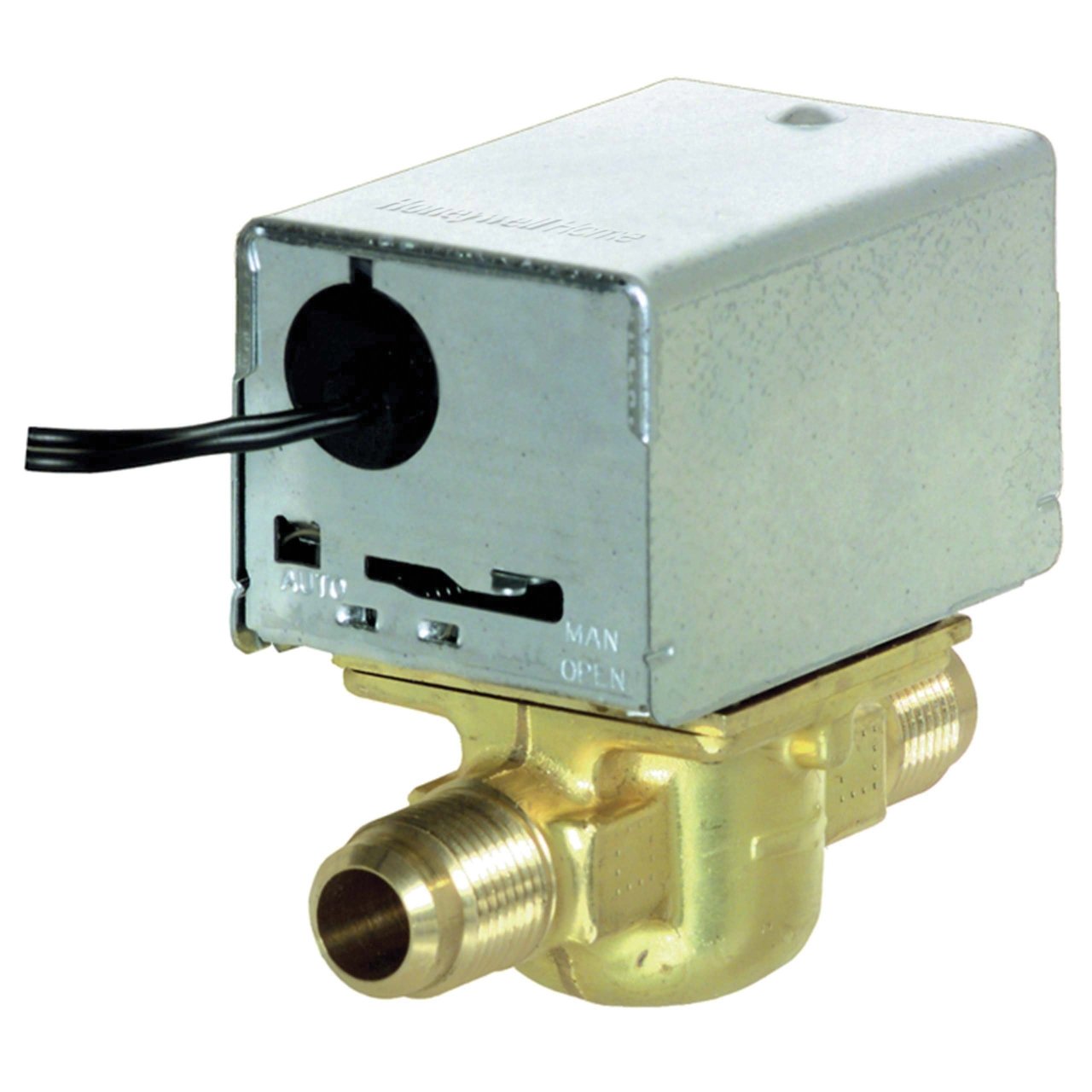

- Manual opener for valve operation on power failure; valve returns to automatic position when power is restored.
- May be installed without disassembling the valve.

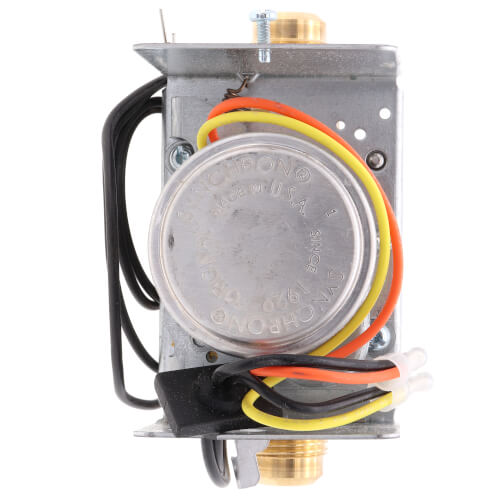

- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Product Highlights
The V8043A1003 zone valve provides reliable two-position hot water control for baseboard radiators, convectors, and radiant-heat panels.
Product Information
Standard Information
-
Brand: HONEYWELL RESIDENTIAL
-
Manufacturer Part Number: V8043A1003
Technical Specifications
-
Brand: HONEYWELL RESIDENTIAL
-
MPN: V8043A1003
-
Connection Type: Flare
-
Pipe Size: 1/2"
-
Body Pattern: Straight-Through 2-Way
-
Capacity: 3.5 Cv
-
De-Energized Position: Normally Closed
-
Maximum Close-off Pressure (psi): 20 psi
-
Fluid Temperature Range: 50 F to 200 F
-
Electrical Connections: 18 in. leads
-
Power Consumption: 7.7 VA
-
Nominal Timing (sec, min): 15 Seconds
-
Valve Action: Spring Return to Close
-
Maximum Ambient Temperature (F): 125F
-
Voltage: 24V
-
Flow Capacity (Cv): 3.5
-
Wiring: 18" Leads
-
Hertz: 50 60
-
Max Ambient Temp (°F): 125°F
-
Max Close-Off PSI: 20 psi
-
Max Temp (F): 200°F
-
Temperature Range (F): 50°F - 200°F
-
Min Temp (F): 50°F
-
Nominal Timing: 15 Seconds
-
Static Pressure: 125 psi
-
End Switch: No
-
Model: V8043A
-
Valve Size: 1/2"
-
Valve Connection: Flare
-
Piping Configuration: Straight
-
Body Material: Brass
-
Valve Application: Water
-
Max Pressure: 125 psi WOG
-
Valve Ball Material: Buna-N (NBR) Rubber
-
Approvals and Standards: UL Listed: File MH11826
-
Includes: End switch enclosure, Manual Opener
-
Product Height: 4 in, 102 mm
-
Product Length: 2.38 in, 60 mm
-
Product Width: 4.69 in, 118 mm
-
Ambient Operating Temperature (Max): 125 °F, 52 °C
-
Differential pressure for close-off (Max): 20 psi, 138 kPa
-
Flow Coefficient: 3.5 Cv|3 Kvs
-
Media Temperature (Min): 50 °F, 10 °C
-
Media Temperature (Max): 200 °F, 93 °C
-
Static Pressure Rating: 125 psi, 862 kPa
-
Valve Body Material: Brass
-
Valve Body Pattern: Two-way, Straight Through
-
Valve Plug Material: Buna-N (NBR) Rubber
-
Valve Seat Material: Brass
-
Valve Start Position: Closed
-
Valve Stem Material: Stainless Steel
