Honeywell Residential V2040ESL20 Thermostatic Valve 3/4 inches Angle Female NPT Inlet NPT Tailpiece Outlet V100E1063

Product Description

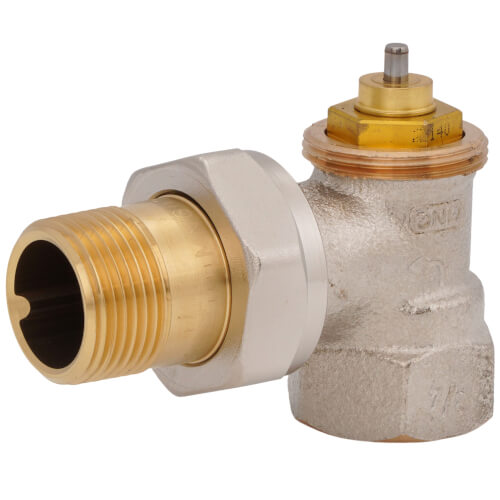

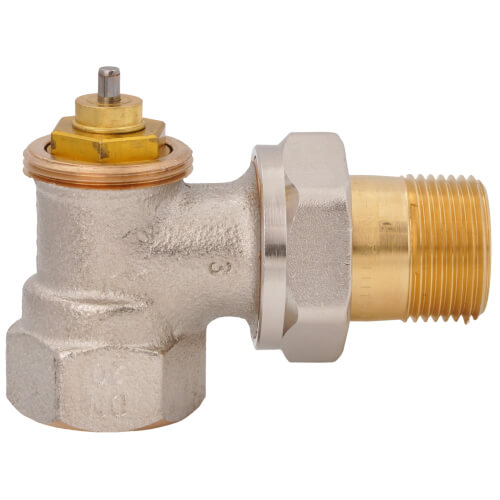

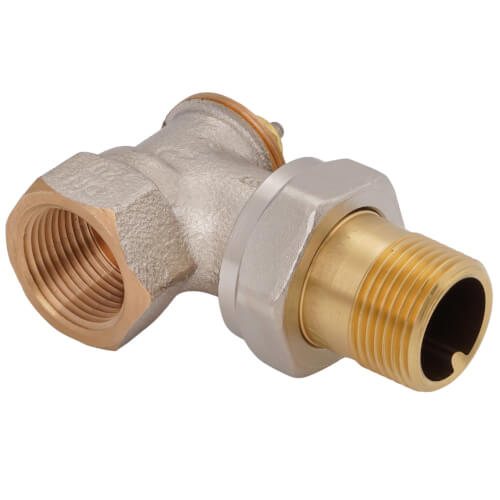

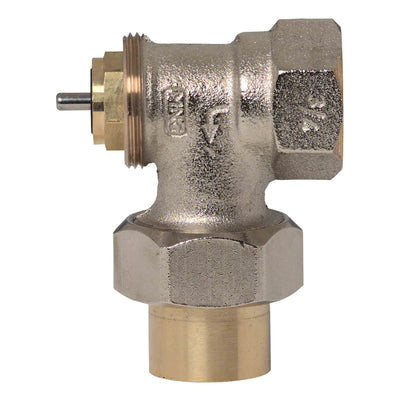

The HONEYWELL RESIDENTIAL V2040ESL20 is a thermostatic valve with a 3/4" angle female NPT inlet and NPT tailpiece outlet. Designed for use with the T100BCF system. It allows automatic temperature control in one-pipe steam or hot water systems for free standing radiators and convectors. This valve replaces V100E1063 and V1.

• Thermostatic valve
• 3/4" Angle Female NPT Inlet
• NPT Tailpiece Outlet

Product Highlights

Designed for use with T100BCF, the V2040ESL20 thermostatic valve provides automatic temperature control in steam or hot water systems.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: V2040ESL20

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: V2040ESL20
• Item Number: V2040ESL20
• Size: 3/4"
• Connection Type: Threaded
• Body Pattern: Angle
• Position: Normally Open
• Temperature Range (F): 248°F Max
• Flow Capacity (Cv): 2.7
• Capacity: Standard
• Capacity (BTU): 63800
• BTU: 63800 Btu/hr (steam)
• Inlet Size: 3/4"
• Inlet Type: NPT
• Outlet Type: Threaded (IPS)
• Material: Nickel Plated Bronze
• Max Pressure (PSI): 15 (Steam) 150 (Hot Water)
• Application: Hot Water
• Valve Size: 3/4"
• Valve Connection: NPT
• Piping Configuration: Angle
• Body Material: Brass
• Valve Application: Hot Water, Steam
• Max Pressure: 15 psi WSP, 125 psi WOG
• Replaces: Honeywell V100E1063
• Manufacturer: Honeywell
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
