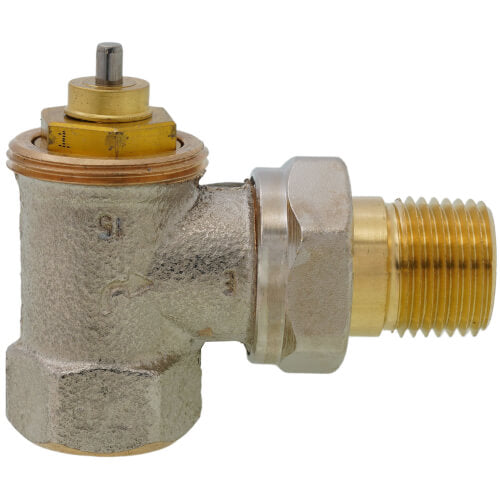

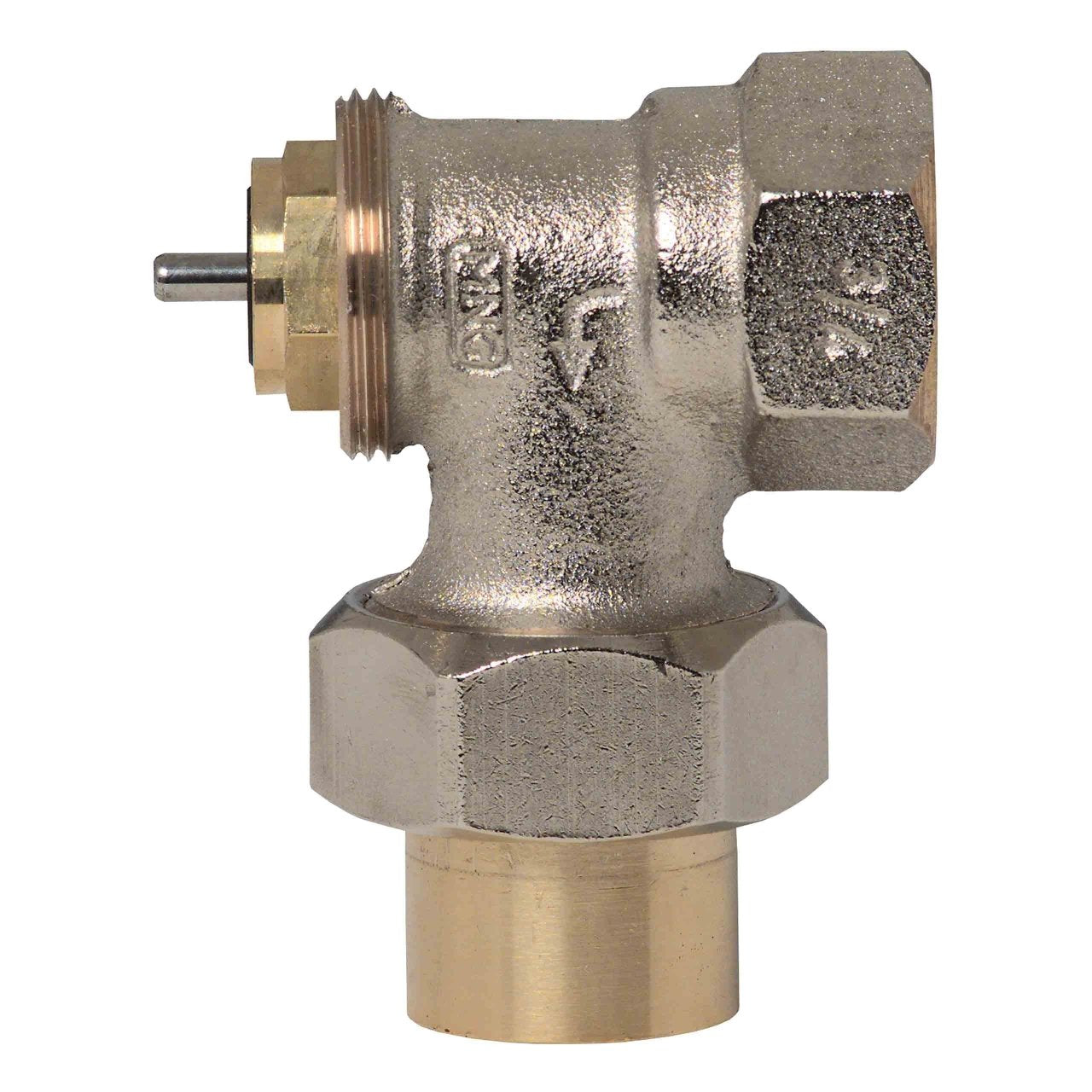

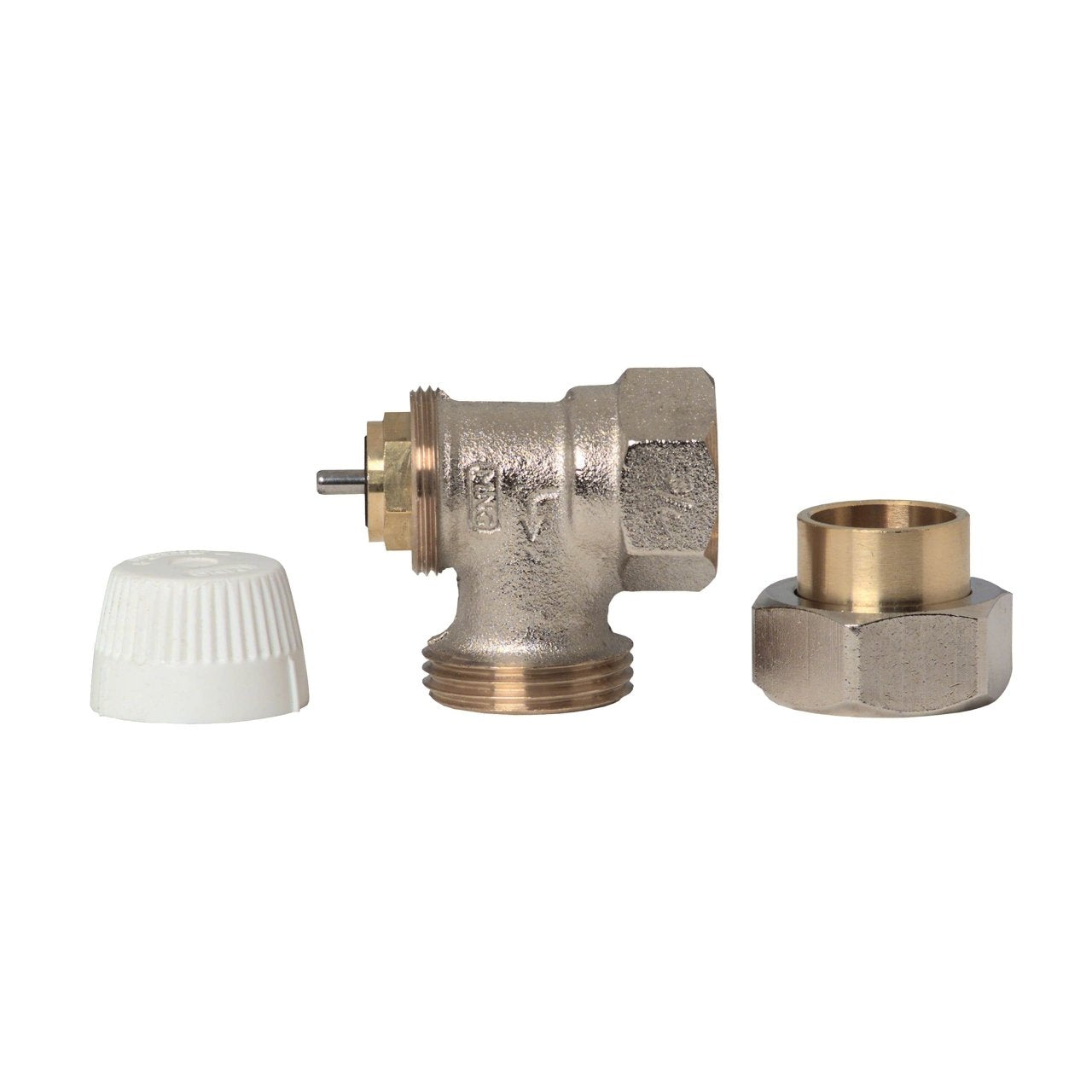

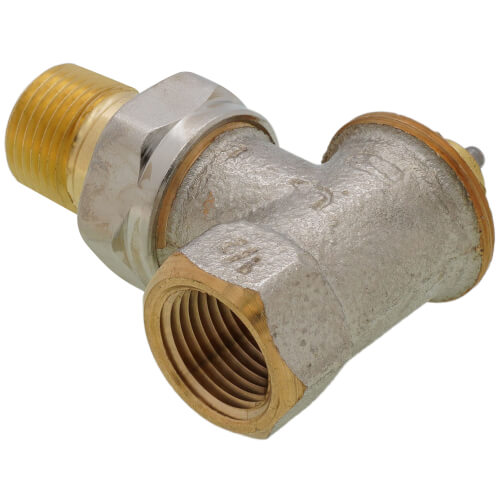

Honeywell Residential V2040ESL15 Thermostatic Valve 1/2 inches Angle Replaces V100e1055

Product Description

The HONEYWELL RESIDENTIAL V2040ESL15 thermostatic valve allows automatic temperature control in one-pipe steam or hot water systems for free standing radiators and convectors with standard capacity requirements. It continually monitors and adjusts room temperature for consistent comfort. The valve features an adjustable balancing cartridge design made from resilient material (EPDM).

• 1/2" Threaded Connection
• Angle Pattern valve for standard capacity radiator
• Normally Open without control mounted

Product Highlights

Provides automatic temperature control in steam or hot water systems. Ensures tight shut-off with adjustable cartridge. Nickel plated brass body.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: V2040ESL15
• Country of Origin: Import

Technical Specifications

• Application: Hot Water
• Size: 1/2"
• Connection Type: Threaded
• Body Pattern: Angle
• Position: Normally Open
• Temperature Rating: 248 deg F
• Flow Coefficient: 2.5 Cv
• Capacity: Standard
• Steam Capacity: Yes
• BTU: 59100 Btu/hr (steam)
• Inlet Size: 1/2"
• Inlet Type: NPT
• Outlet Type: Threaded (IPS)
• Material: Nickel Plated Bronze
• Max Pressure (PSI): 150 (Hot Water)
• Differential Pressure (Max): 15 psi with T100 or T200, 36 psi with MV100: 36 psi, 3 psi for low noise
• Max Pressure (PSI) (Steam): 15
• Manufacturer: Honeywell
• Part Number: V2040ESL15
• Item model number: V2040ESL15
• Item Package Quantity: 1
• DN Size: DN15
• Connection Size: 1/2 in
• Valve Body Material: Nickel Plated Bronze
• Valve Capacity: Standard - 59,100 Btu/hr
• Compatible With: Hot Water, Steam
• Warranty: 1 Year
• For Use With: T100C, T100B, and T100F Thermostatic Controls
• Product Height: 3.19 in, 124 mm
• Brand: Honeywell Home
• End Style: MNPT x FNPT
• Media: Steam/Water
• Nominal Size: 1/2 in
• Pressure Rating: 150 psi (Hot Water)/15 psi (Steam)
• Series: V2000
• Softgoods Material: EPDM Cartridge
• Type: Angle Pattern
• Temperature Rating (F): 248°F Max
• Dimensions: 1 x 2-5/16 in
• Domestic/Import: Import
• Condition: New
• Production Status: Active
