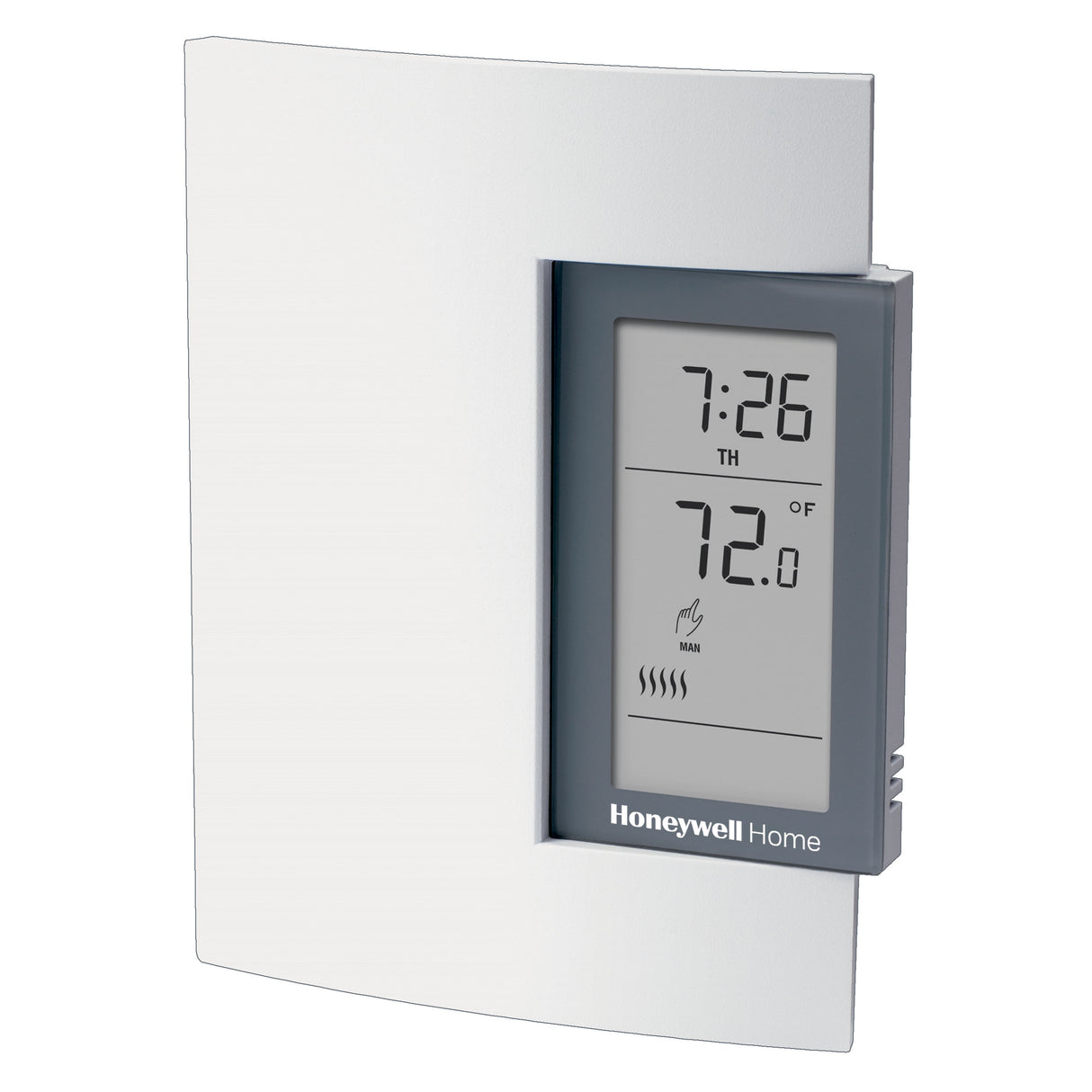

Honeywell Residential TL8100A1008 24/120/240v - Compatible W/ Millivolt Systems Battery Powered/hardwired Digital Single Stage 7-day P

Product Description

The HONEYWELL RESIDENTIAL TL8100A1008 is a programmable thermostat designed for hydronic heating systems. It offers flexible control with a digital display, 7-day programming, and compatibility with millivolt and 24/120/240V systems. It can control 2-way zone valves, 3-way zone valves, or circulator pumps. The thermostat features special protection modes to prevent system seizures and reduce callbacks.

• Accurate Temperature Control
• 7-Day Programming
• Battery or Hardwired

Product Highlights

This thermostat provides energy savings with programmable control for hot water, hot air, and millivolt systems. It features a backlit display, economy mode, holiday mode, and temporary override.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TL8100A1008
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TL8100A1008
• Item Number: TL8100A1008
• Model Name: TL8100A1008 13284252
• Controller Type: Push Button
• Special Feature: Programmable
• Specific Uses For Product: Boiler, Electric Baseboard Heater, Furnace, Heat Pump
• Temperature Control Type: Programmable
• Included Components: Honeywell TL8100A1008 Programmable Hydronic Thermostat
• Power Source: Corded Electric
• Material: Plastic
• Display Type: Digital
• Control Type: Button Control
• Mounting Type: Vertical
• Backlight: Yes
• Thermostat Type: Programmable; Line Voltage
• RedLINK: No
• Includes: Power base; Screws; Solderless connectors for copper wires
• Stages: 1 Heat
• Modes of Operation: Heat
• Programming Features: Economy Mode; Holiday Mode; Temporary Override
• Program Type: 7-Day Programmable
• Displayed Information: Indoor Temperature; Status Display; Time/Date; Mode Icons
• Features: Backlit Display
• Power Type: Battery, Hardwired
• Product Height: 4.9 in; 124 mm
• Product Width: 3.8 in; 97 mm
• Warranty: 2 Years
• Terminal Designations: R, W
• Display: LCD
• Programmability: Programmable
• Differential: 0.1
• Dimensions: 3.8 in H x 4.9 in W x 1 in D
• Domestic/Import: Import
• Humidity Range: 0 to 95% RH, Non-Condensing
• Sensor Type: Thermistor
