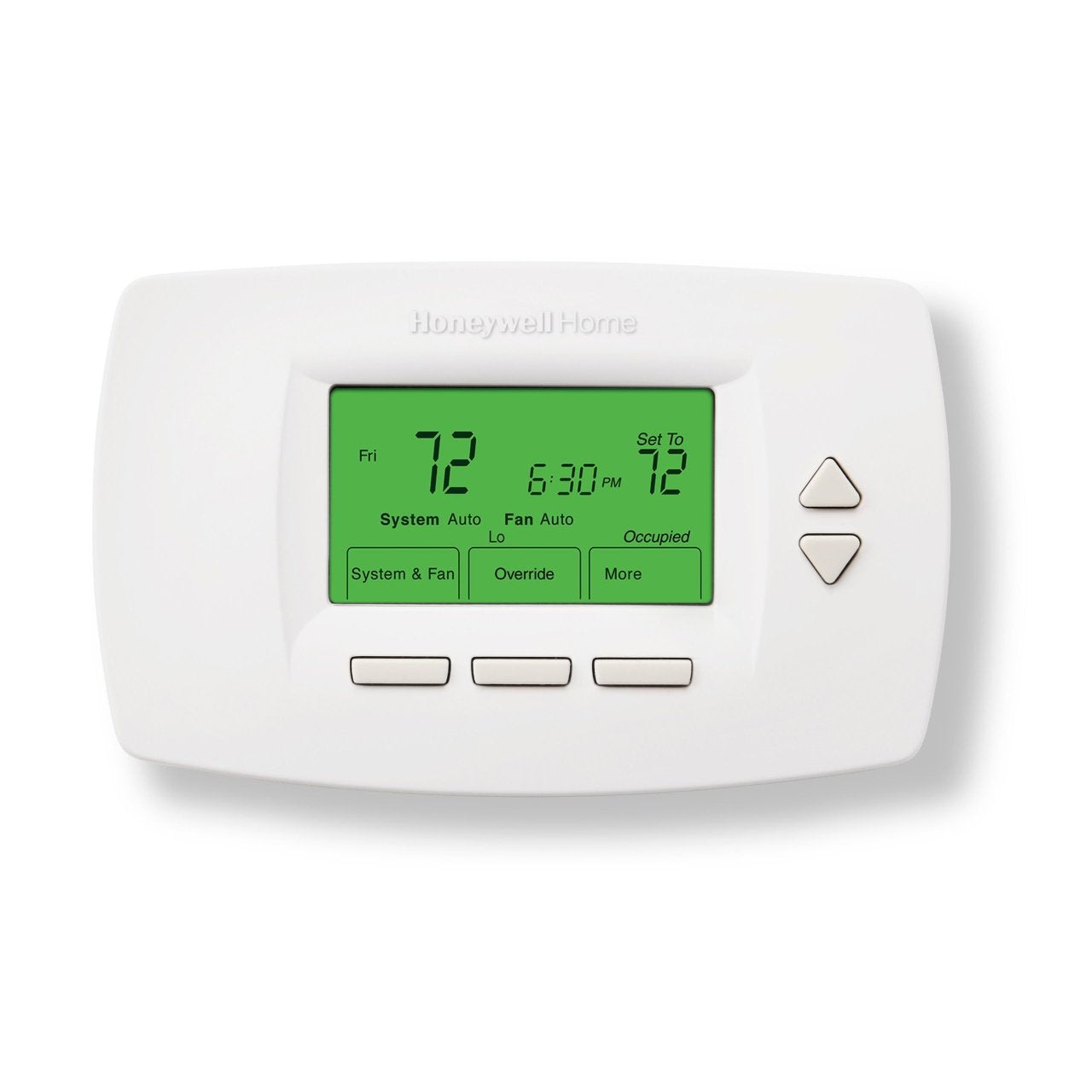

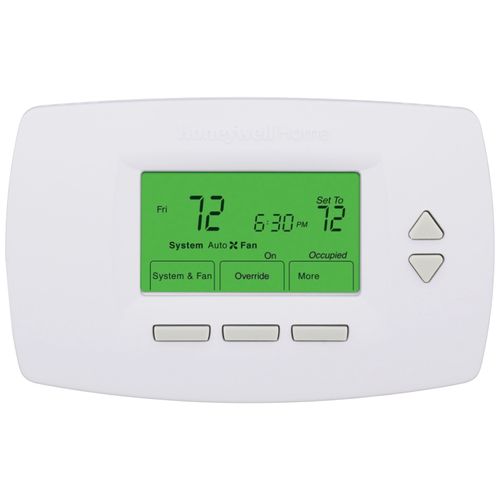

Honeywell Residential TB7100A1000 24v Multipro 7000 7 Day Programmable Thermostat

Product Description

The HONEYWELL RESIDENTIAL TB7100A1000 is a 24v Multipro 7000, a 7-day programmable thermostat designed for conventional heat pump and fan coil systems. It provides temperature control for gas, oil, electric, heat pumps, PTACs, and fan-coil equipment. The thermostat is easy to program and provides precise comfort with universal system compatibility.

• 7-Day Programmable
• Programmable or Non-Programmable
• Compatible with conventional heat pump, fan coil, and P-TAC systems

Product Highlights

The MultiPRO thermostat provides temperature control for various systems and offers precise comfort with easy programming.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TB7100A1000

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TB7100A1000
• Application: Multi-Stage (Heat/Cool), Heat Pump, Commercial
• Stages: 2 Heat/1 Cool (Heat Pump)
• Programmability: Programmable
• User Interface: Push Button
• Mount: Horizontal, Vertical
• Options: Fan Control, Large Display, Works with Sensor, Auto Changeover
• Voltage: 24V
• Humidity Control: No
• Wireless: No
• Thermostat Type: Programmable
• Approvals and Standards: Meets the same requirements as UL-873
• Smart Home Integration: No
• Display Type: LCD Screen
• Display Size: 3.75 sq in
• Modes of Operation: Heat, Cool, Auto, Off
• Alerts and Reminders: Battery Replacement
• Power Supply: Battery Powered, Hardwired
• Power Source: Battery Operated, Hardwired
• Number of Batteries: 2
• Battery Life: 1 Year
• Battery Size: AA
• Battery Type: Alkaline
• Warranty: 5 Years
• Includes: 3 Speed Fan Control and Configurable Sensor Input for Indoor Temperature, Occupancy Sensor, Changeover
• WiFi: No
• Z-Wave: No
• RedLINK: No
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 2.8 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Clock Type: Year Clock
• Temperature Accuracy: ±0.5 °C, ±1 °F
• Mounting Type: Horizontal Mount
• Number of Fan Speeds: 3
• Operating Frequency: 50 Hz, 60 Hz
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Heat: 4 °C, Cool: 50 °F, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Product Depth: 1.5 in, 38 mm
• Power Type: Battery, Hardwired
• Display: Digital

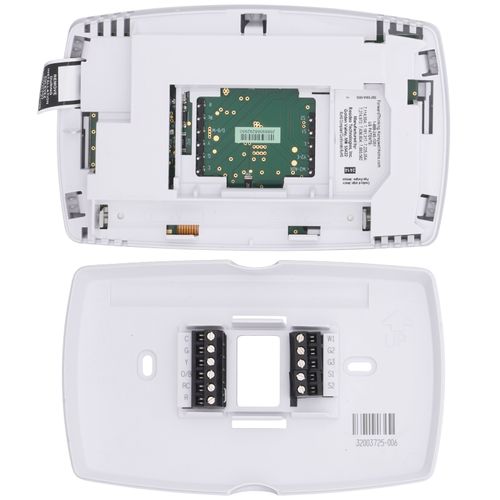

• Terminal Designations: C, G, O/B, RC, W1
• System Type: Heat Pump Systems
• Imprinting Available: Yes
