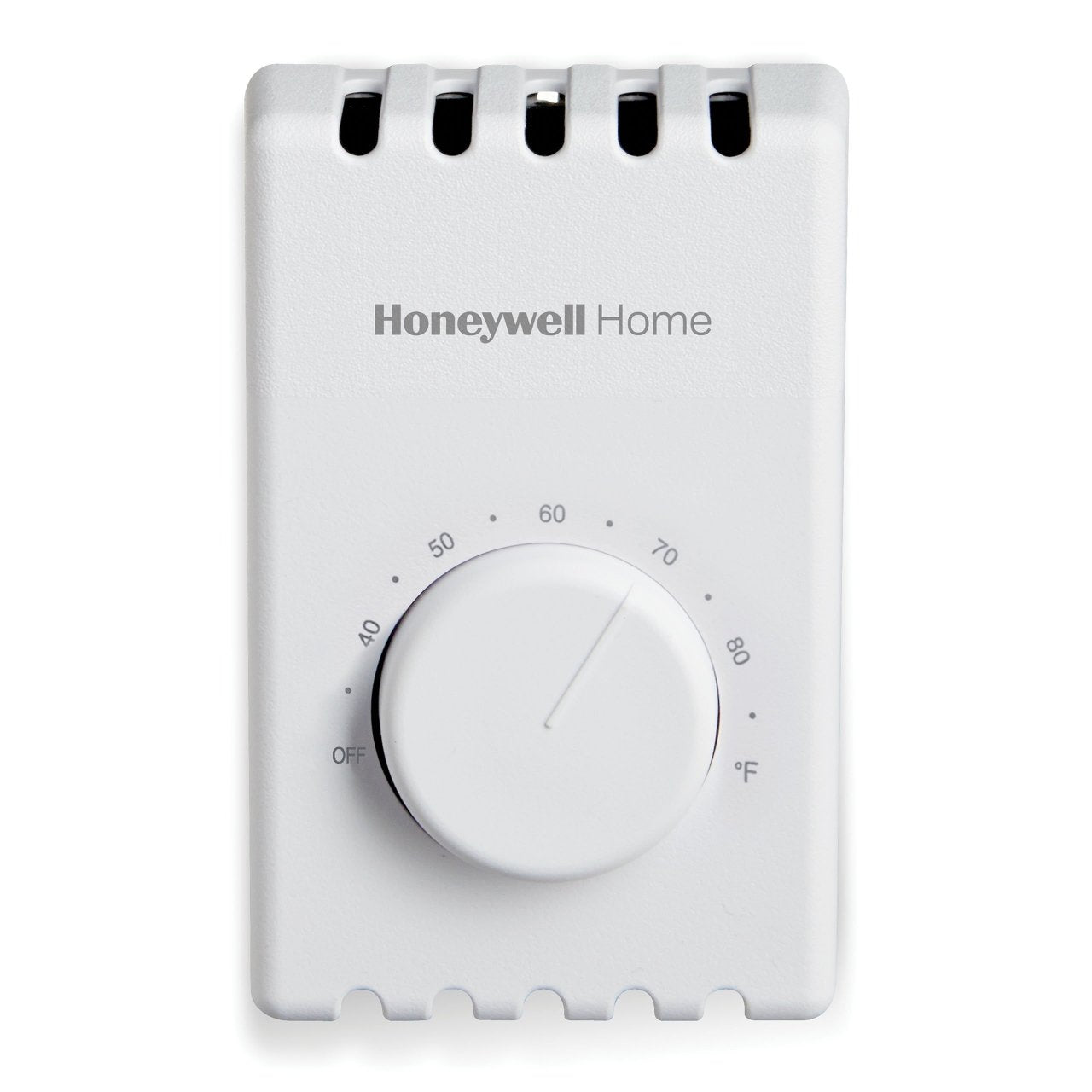

Honeywell Residential T410B1004 120/208/240/277V Four Wire Premier White DPST Bimetal Electric Heat Thermostat With Positive Off 40-

Product Description

The HONEYWELL RESIDENTIAL T410B1004 is an electric heat thermostat that provides reliable line voltage control of resistive-rated electric heating equipment. It features a snap-action twist to make the circuit temperature rise or fall. This baseboard thermostat is easy to install and comes with 6-inch color-coded leads. The thermostat offers positive OFF and DPST switching action.

• Replaces virtually any two-wire (T410A) or four-wire (T410B) line voltage wall-mounted electric heating thermostat
• Easy to install with 6 in. (150 mm) color-coded leads
• Ideally suited to new construction applications

Product Highlights

Provides line voltage control for electric heating equipment. Easy to install with color-coded leads and positive OFF.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: T410B1004

Technical Specifications

• Voltage: 120/208/240/277 Volt
• Temperature Range: 40 to 80 Degrees F
• Thermostat Mount Orientation: Vertical Mounting
• Thermostat Type: Line Voltage Thermostat
• Application: Electronic Baseboard Heat
• Programmable: Non-Programmable
• Stages: 1 Heat
• Setting Temperature Range (F): 40 to 80
• Differential Temperature (F): 3
• Electrical Ratings: Noninductive Resistive 22A at 120/208/240 VAC 19A at 277 VAC
• Mounting: Vertical Mount
• Sensor Element: Bimetal
• Switching Action: DPST
• Frequency (Hz): 60
• Height (In.): 4.50
• Width (In.): 2.75
• Depth (In.): 2.25
• Standards: UL Listed and CSA Certified
• Internet Connectivity: No
