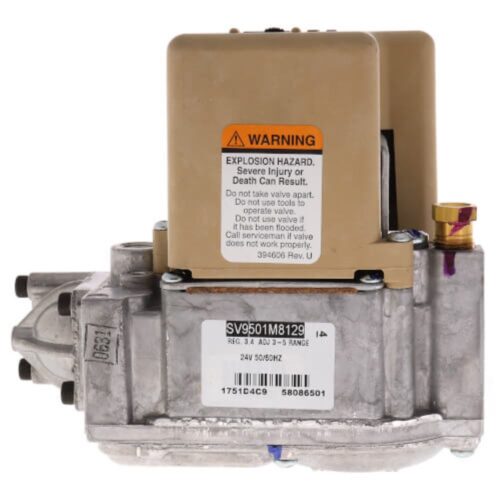

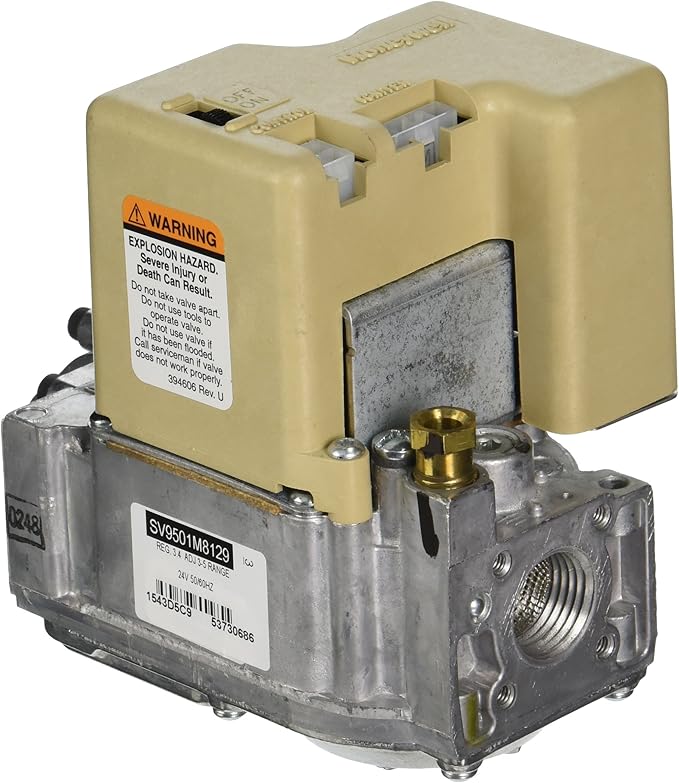

Honeywell Residential SV9501M8129 24v 1/2 inches X 1/2 inches Smart Valve Gas Valve W/ignition Control Includes Lp Kit Fast Open

Product Description

The HONEYWELL RESIDENTIAL SV9501M8129 is a 24v 1/2" X 1/2" smart valve gas valve with ignition control and LP Kit, designed for fast opening. This smart valve system offers easy field replacement and provides intermittent pilot gas ignition sequencing, pilot flame sensing, and both pilot and main gas control functions in a single control.

• Smart Valve with Ignition Control
• Includes LP Kit for conversion
• Fast Opening

Product Highlights

The HONEYWELL RESIDENTIAL SV9501M8129 combines gas flow control and electronic intermittent pilot sequencing functions into a single unit.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: SV9501M8129
• Country of Origin: China

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: SV9501M8129
• Material: Metal, Plastic
• Inlet Connection Type: National Pipe Tapered
• Number of Ports: 2
• Manufacturer: HONEYWELL
• UPC: 085267791083
• Item model number: SV9501M8129
• Is Discontinued By Manufacturer: No
• Shape: Inline
• Item Package Quantity: 1
• Mounting: 0? to 90?, Any Upright Position from Gas Control Knob, Includes Vertical Placement
• Electrical Ratings: 24 VAC
• Frequency: 50 Hz/60 Hz
• Tradeline Value: Universal
• Flame Failure Response Time: 1.6 sec @ 3?A
• Ambient Temperature: -40?F to 175?F
• Ignition System Type: Intermittent Hot Surface Pilot Ignition
• Ignition Sequence: Intermittent Pilot
• Type of Gas: Natural (LP with included conversion kit)
• Ignition Source: Pilot
• Ignition Trials to Lockout: Continuous Retry
• Ignition Trial Time: 90 seconds
• Typical Ignition Hardware: Q3450, Q3480
• Body Pattern: Straight-through
• Opening Characteristics: Fast-Fast
• Pressure Regulator Setting: 0.87 kPa
• Pressure Ratings: 3.5 kPa
• Inlet Size: 1/2" NPT
• Outlet Size: 1/2" NPT
• Pilot Gas Outlet: Yes
• Capacity: Maximum at 1" P.D.–150 ft?/hr; Maximum–200 ft?/hr; Minimum–20 ft?/hr
• Pressure Tapping: 1/8" NPT
