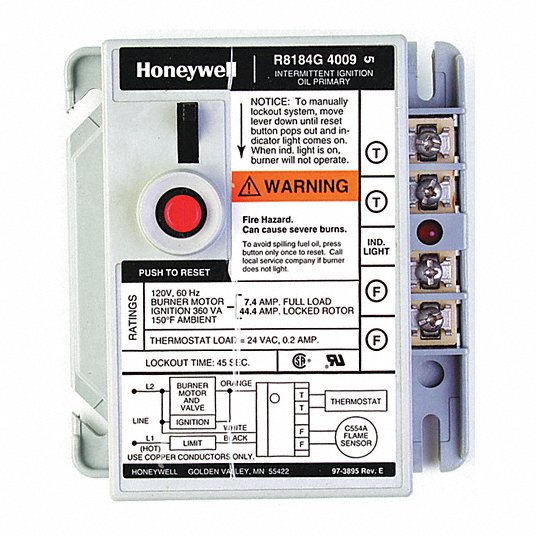

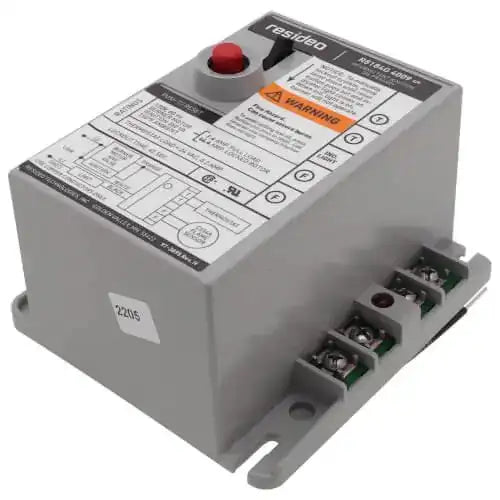

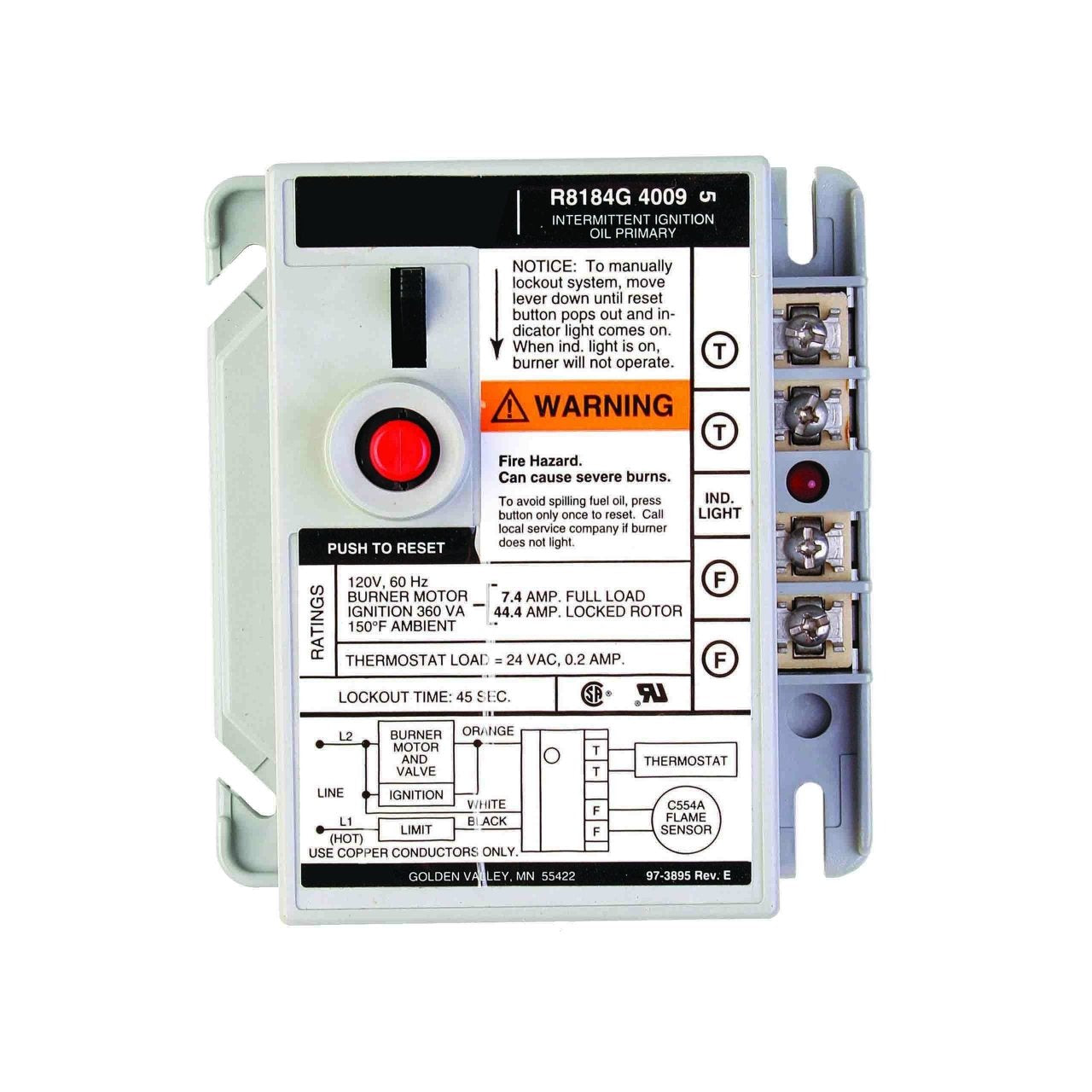

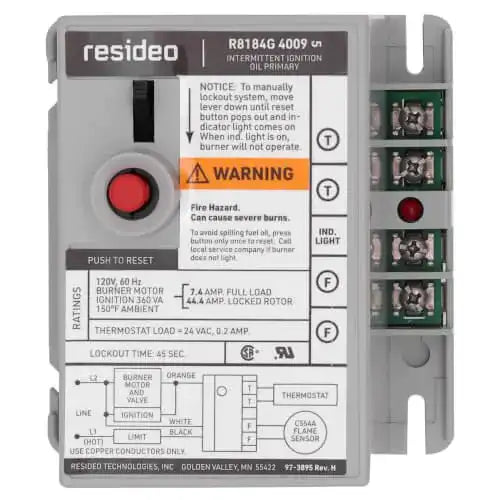

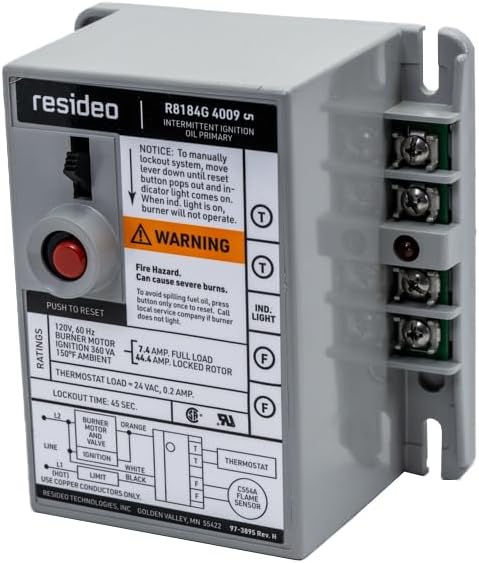

Honeywell Residential R8184G4009 Cad Cell Relay (45 Sec) Intermittent 120v

Product Description

The HONEYWELL RESIDENTIAL R8184G4009 is a cad cell relay with a 45-second intermittent timer and 120V power. It controls the oil burner, oil valve, and ignition transformer in response to a call for heat. Features a solid-state flame sensing circuit and an enclosed safety switch with an external reset button. Manual trip lever opens safety switch for system maintenance.

• Oil Burner Protector lay Intermittent Control
• Three wiring terminal options available for easy installation
• Manufactured in the United States

Product Highlights

This relay provides automatic, non-recycling control of an intermittent ignition oil burner system and is designed for use with oil-fired heating equipment.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: R8184G4009
• Country of Origin: USA

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: R8184G4009
• UPC: 85267990127
• Voltage: 120 Volts
• Material: Plastic
• Safety Switch Timing: 45 sec
• Overall Height: 4-3/8 in
• Overall Width: 4-1/8 in
• Mounting Type: Junction Box/Direct Mount
• Control Type: Intermittent ignition primary control with flame sensing
• Input Voltage: 120 VAC, 60 Hz
• Full Load Amperage: 7.4 A
• Locked Rotor Amperage: 44.4 A
• Operating Temperature: -40°F to 130°F (-40°C to 54°C)
