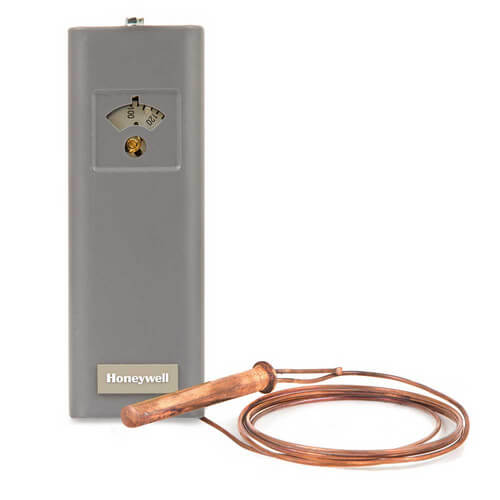

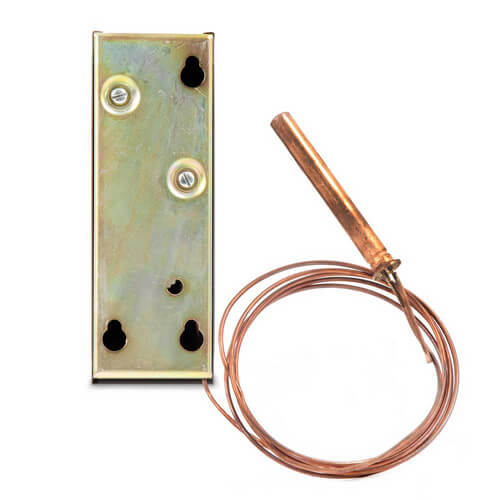

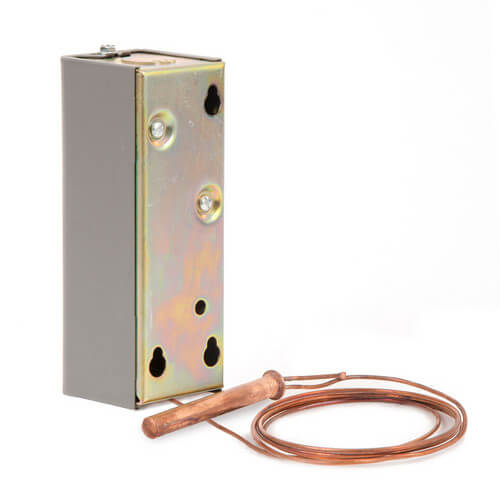

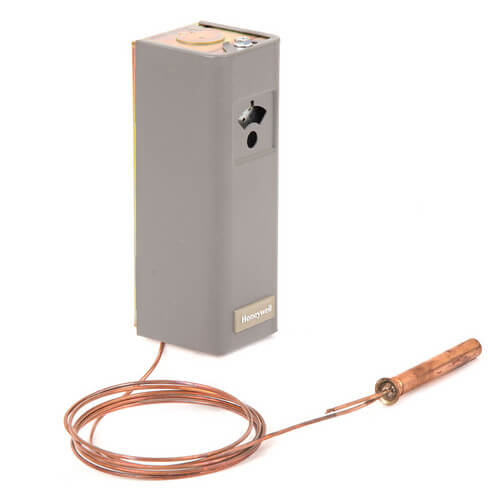

Honeywell Residential L4008A1130 Remote Bulb Aquastat 130-270F

Product Description

The HONEYWELL RESIDENTIAL L4008A1130 is a remote bulb aquastat with a temperature range of 130-270F and a 10' capillary. It functions as a high or low limit aquastat controller with an adjustable differential of 5-30F. The SPST switch action breaks contact on temperature rise.

• Remote bulb aquastat
• Temperature range: 130-270F
• Differential: 5-30F

Product Highlights

Remote bulb aquastat with adjustable temperature differential and a 10' capillary.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: L4008A1130

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: L4008A1130
• Capillary Length: 120 in
• Application: Low Limit, High Limit
• Bulb Size: 3/8" x 2-7/8"
• Switch Action: SPST, Contacts Break on Temp Rise
• Temperature Range (F): 130°F to 270°F
• Electrical Rating: 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac
• Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
• Min Temp Differential: 5°F
• Differential: 5° to 30°F, Adjustable
• Max Ambient Temp (°F): 150°F
• Height: 5-5/8"
• Width: 2"
• Depth (Inches): 2-1/8"
• Well Included: No
• Mount: Vertical, Horizontal
• Item model number: L4008A1130
• Item Package Quantity: 1
• Temperature Control Range: 130 to 270 °F
• Description: High or Low Limit Aquastat Controller
• Manufacturers Part Number: L4008A1130
• For Use With: High or Low limit
• Switch Type: SPST, contacts break on temperature rise
• Length: 2-7/8 in
• Diameter: 3/8 in
