Honeywell Residential HZ221K Truezone Kit With Dats Transformer And HZ221 Panel Not Redlink Enabled

Product Description

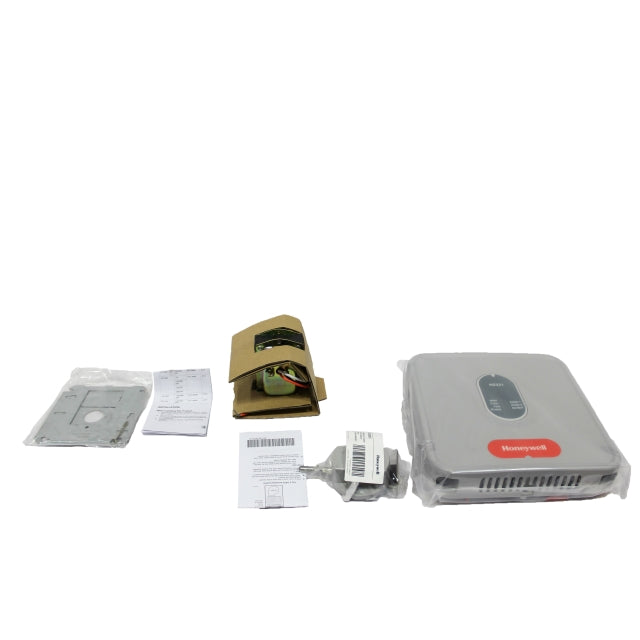

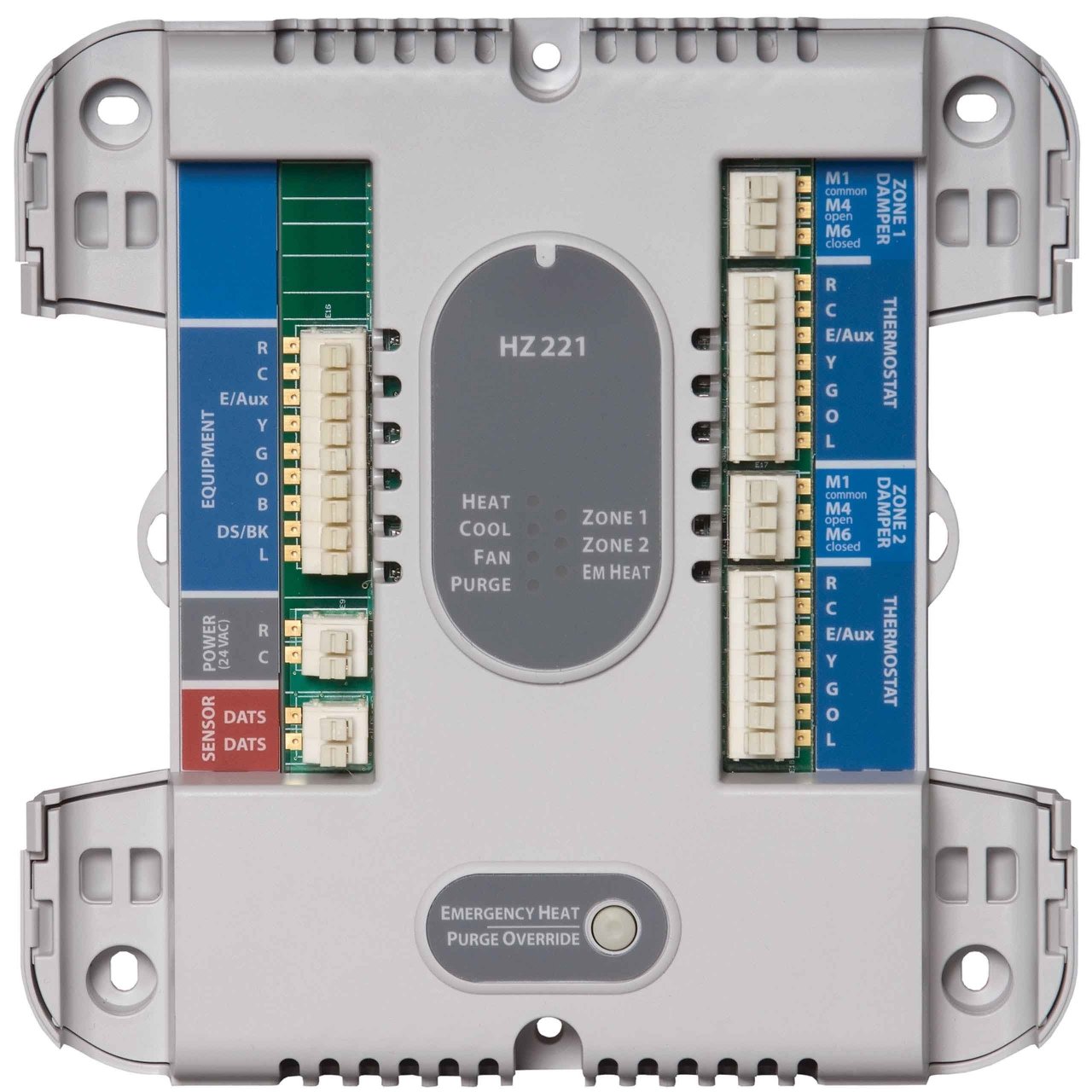

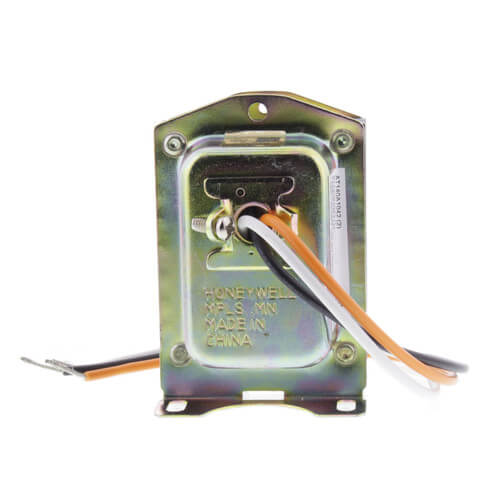

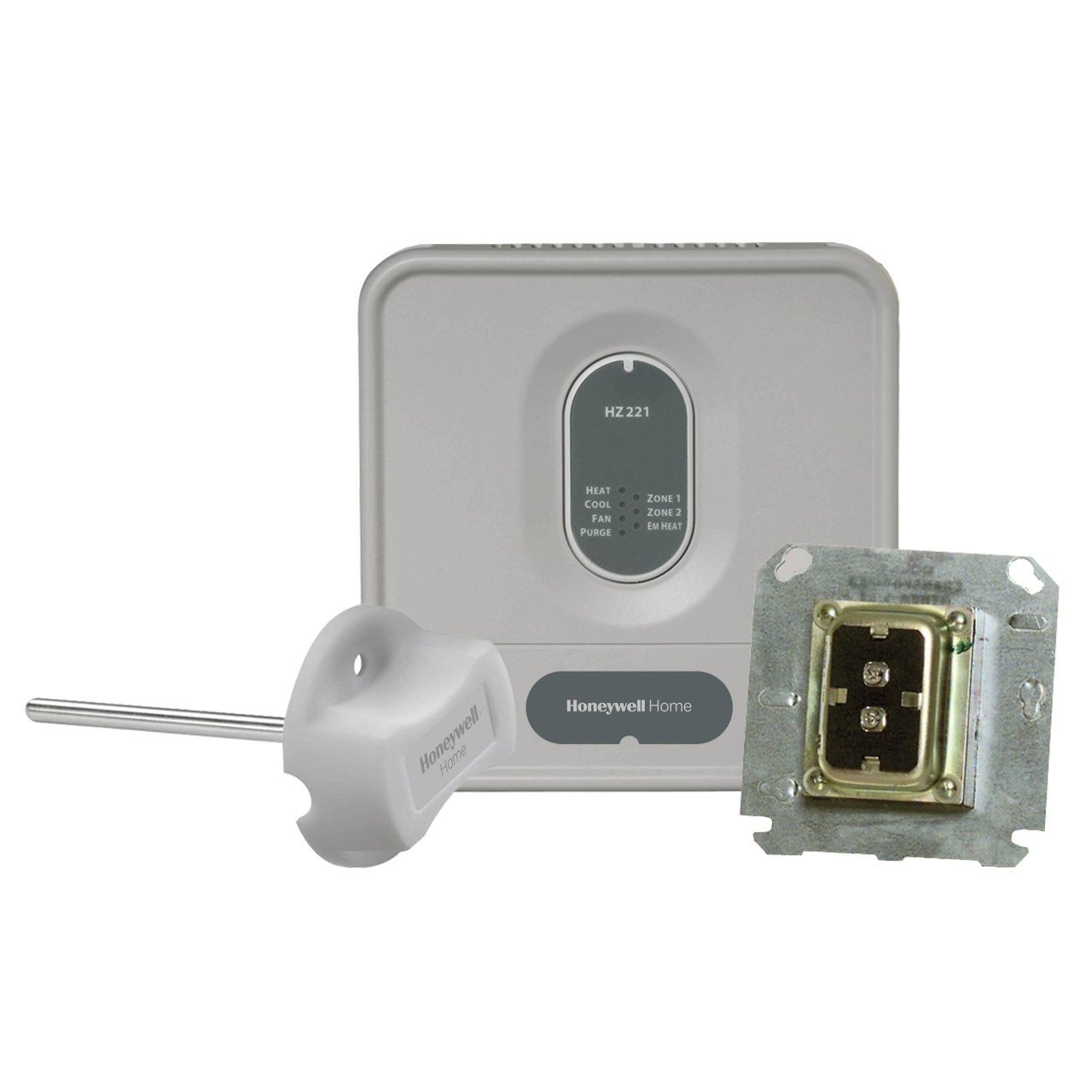

The Honeywell Residential HZ221K TrueZone Kit is designed for home comfort management. This kit includes a DATS transformer and HZ221 panel, but is not Redlink enabled. It provides precise temperature control and can be used to upgrade existing systems or for new installations. Designed for single stage heat pumps with auxiliary heat applications up to two zones.

• Features robust push terminals for easy connections.
• Includes common-sense LEDs for clear indication of status.
• Offers variable-speed fan control for customized comfort.

Product Highlights

The HZ221K TrueZone kit offers precise temperature control for single stage heat pumps with auxiliary heat applications up to two zones.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: HZ221K

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: HZ221K
• UPC: 8526718468
• Application: Zoning
• Number of Zones: 2
• Network Zoning: No
• Heat Pump Compatible: Yes
• Stages: 1 Heat
• Auto Changeover: Yes
• Voltage: 24V
• Discharge Air Temp Compatible: Yes
• Emergency Heat Switch: Yes
• Resettable Fuse: Yes
• Individual Zone Fan Control: Yes
• LEDs: Yes
• Wiring: 18-20 Gauge Solid
• Hertz: 60 50
• Temperature Range (F): -40°F - 165°F

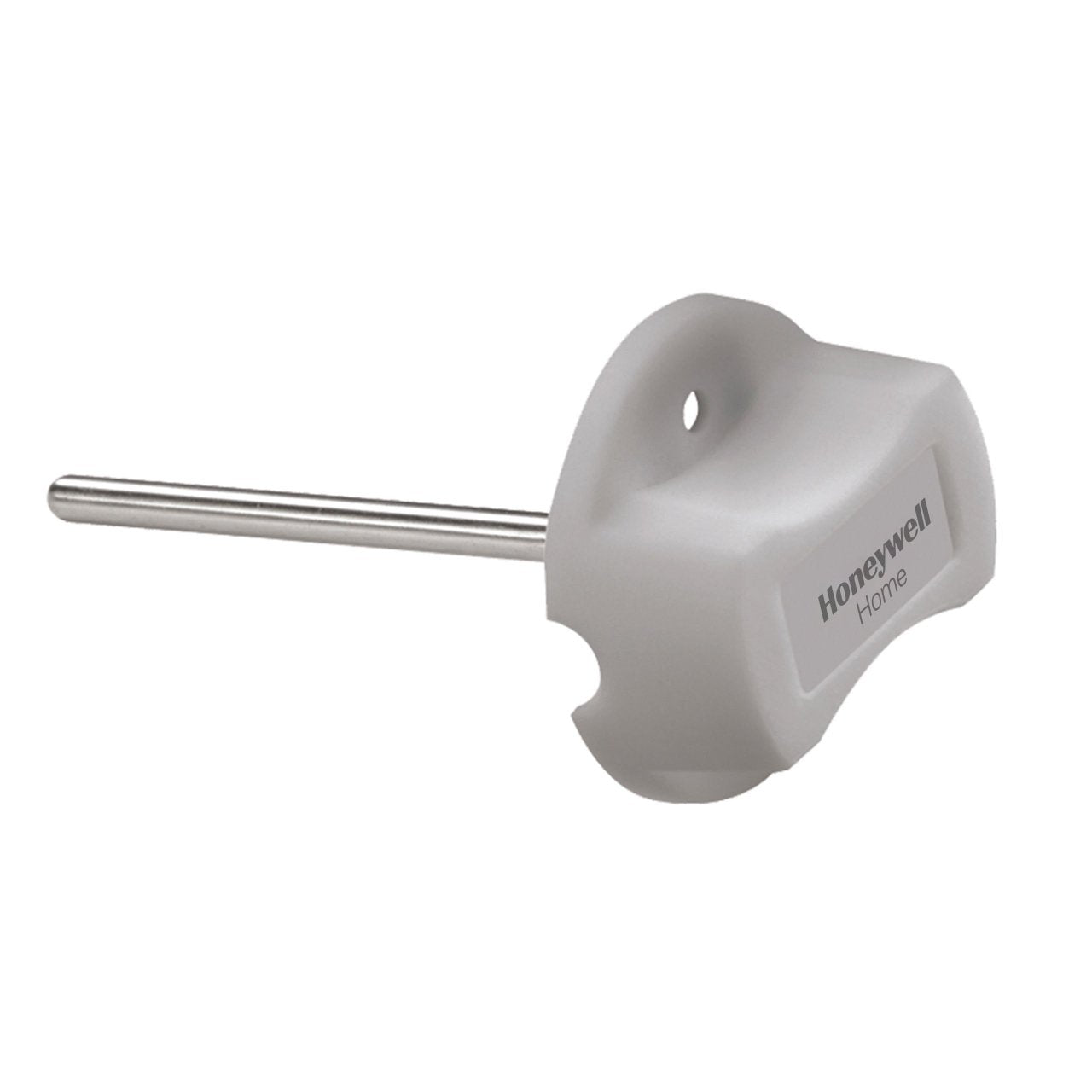

• Includes: DATS
• LED Functions: Heat, Cool, Fan, Purge, Zone 1, Zone 2, Emergency Heat
• Voltage Rating: 24 Volt
• Used On Item: 1-Stage Heat Pump with Auxiliary Heat
• LED Indicators: Yes
