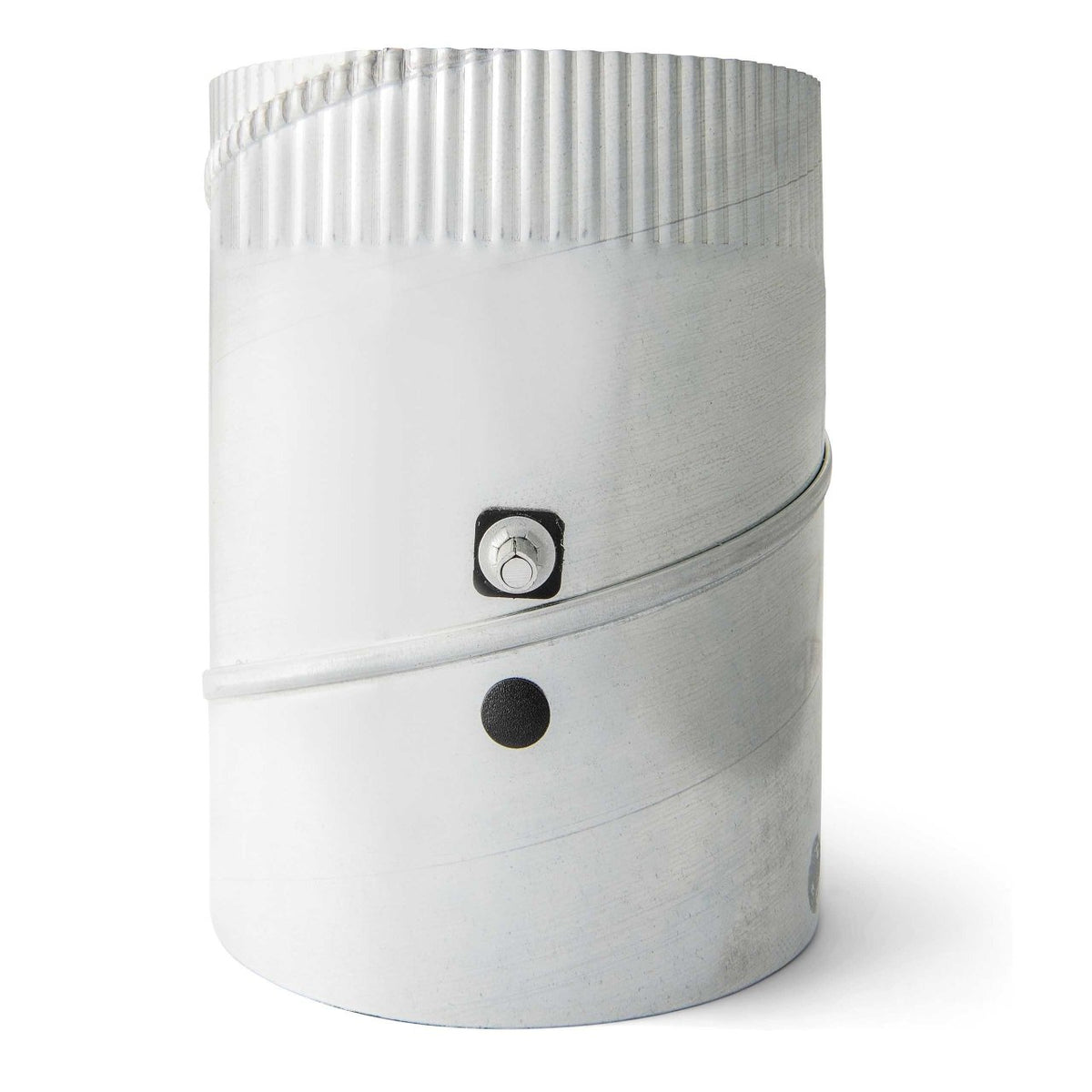

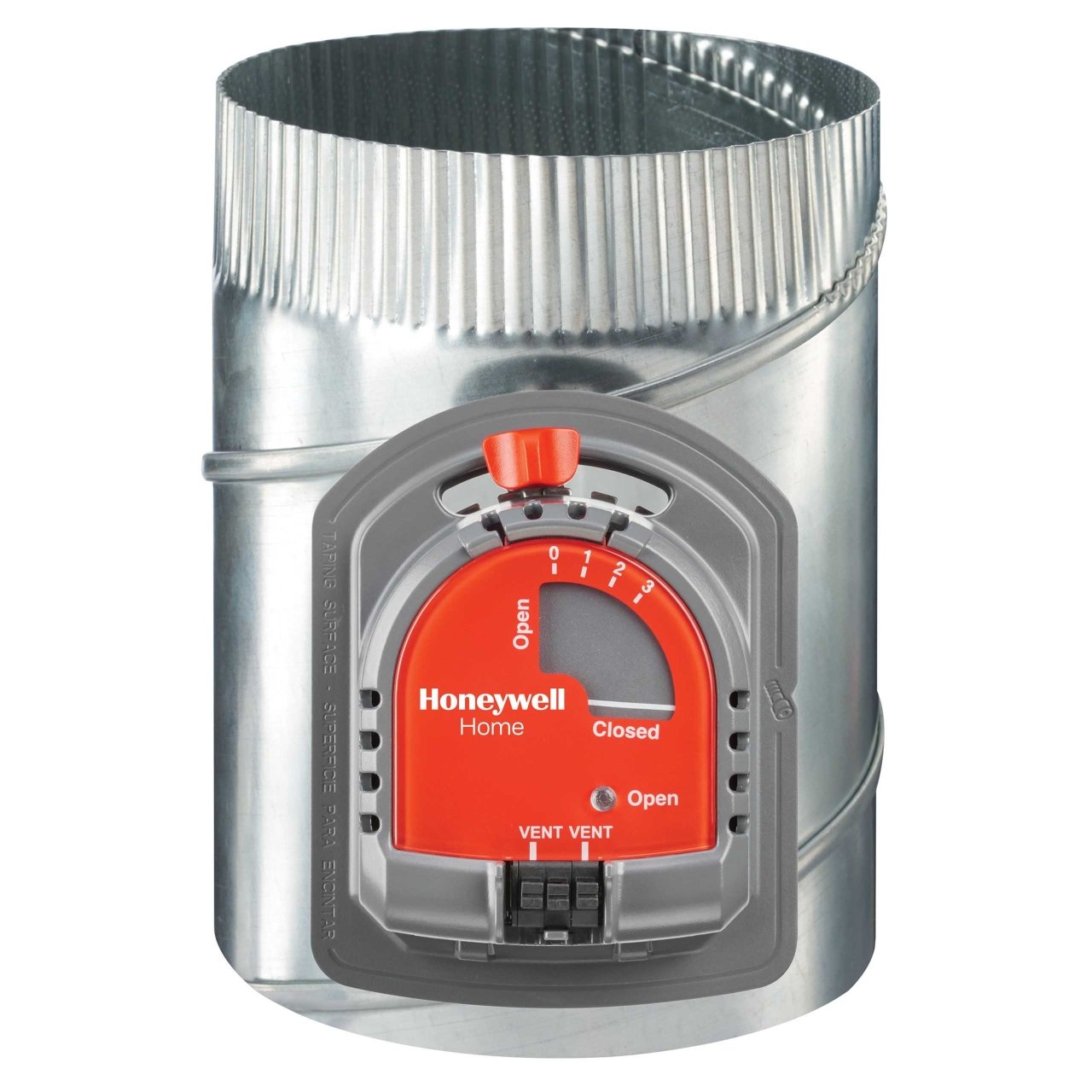

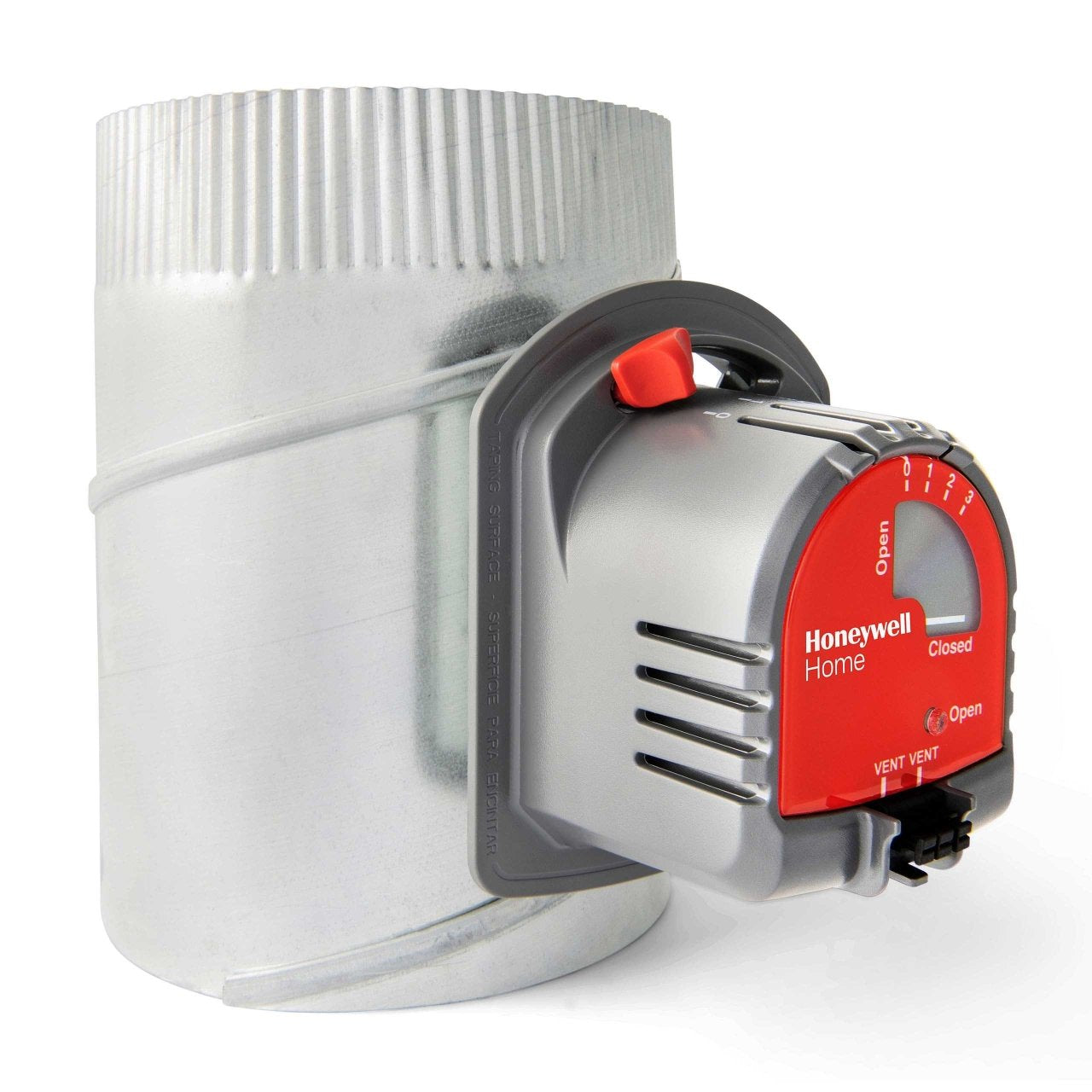

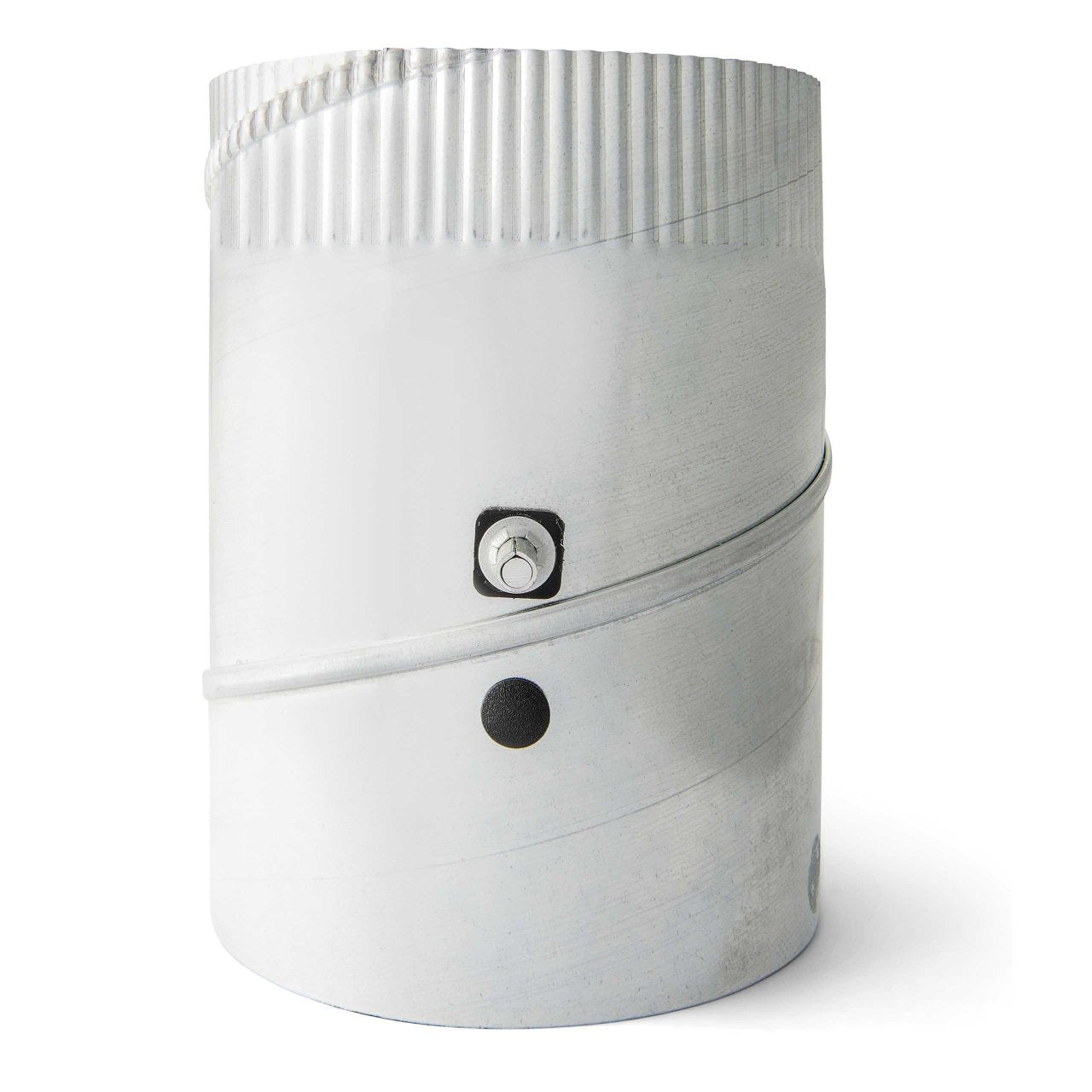

Honeywell Residential EARD8TZ Economizer Round Ventilation Damper 8 inches Truezone

Product Description

The HONEYWELL RESIDENTIAL EARD8TZ is a 24v Economizer Round Ventilation Damper designed for streamlined zoning in HVAC and ventilating systems. It features a single blade for quiet operation and is shipped as a power open/spring return closed damper. The damper can be field-converted to power closed/spring return open. It is ideal for circulating fresher air throughout a home's zones.

• Adjustable damper position range stops
• Single-blade damper for quiet operation
• Blade closes tightly against gasket for minimal leakage

Product Highlights

The Honeywell Home Round Fresh Air Damper has a 24-volt, spring-return damper actuator for fresh air intake for ventilation or combustion makeup air.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: EARD8TZ
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: EARD8TZ
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Ventilation Damper
• Damper Material: Galvanized Steel
• Warranty: 5 Years
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Actuator Frequency: 60 Hz
• Airflow (Max): 160 CFM
• Airflow (Min): 50 CFM
• Product Diameter: 8 Inches
• Model: EARD
• Diameter: 8 in
• Voltage Rating: 24 VAC
• Frequency Rating: 60 Hz
• Number of Blades: 1
• Pressure Drop: 0.0329 in-WC
• Material: Steel
• Finish: Galvanized
• Mounting Type: Side, Top
• Motor Type: Power Open, Spring Closed
• Motor Specifications: 24 V, 60 Hz, 8 VA
• Shape: Round
• Temperature Rating: 40 to 140 deg F
• Length: 3.95 in
• Width: 4.94 in
• Height: 4.64 in
• Domestic/Import: Import
• Series: EARD
• Size: 8 in Dia
• Timing: 30 sec Power Closed/10 sec Spring Return
