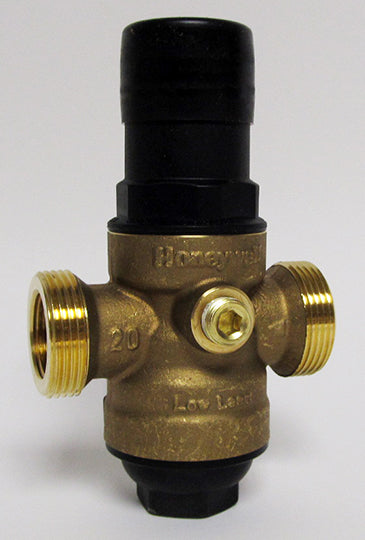

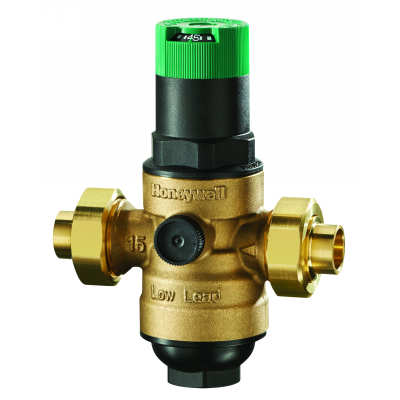

Honeywell Residential DS06-101-LF 3/4 inches Female NOT. DS06 "Dialset" Low Lead Pressure Regulating Valve (PRV)

Product Description

The HONEYWELL RESIDENTIAL DS06-101-LF is a pressure regulating valve designed to control and maintain consistent water pressure in residential plumbing systems. It features a union body and is suitable for use with potable water systems due to its low lead construction. Maintains a constant outlet pressure over a wide range of inlet supply pressures.

• Pressure Regulating Valve (PRV)
• 3/4" Female connection
• "Dialset" design
• Low Lead construction

Product Highlights

This pressure regulating valve is designed for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: DS06-101-LF

Technical Specifications

• Inlet Pressure Max: 250 psi (1723.69 kPa)
• Lead Free: Yes
• Differential Pressure: 14.5 PSI Minimum, 99.97 kPa Minimum
• Valve Body Material: Brass
• Gauge Tap Connection: NPT
• Warranty: 1 Year
