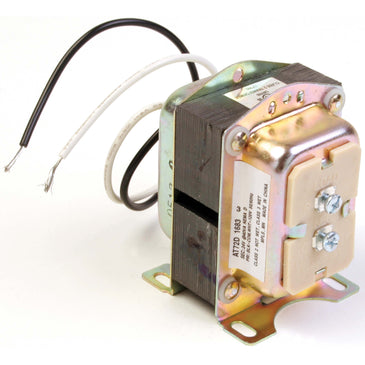

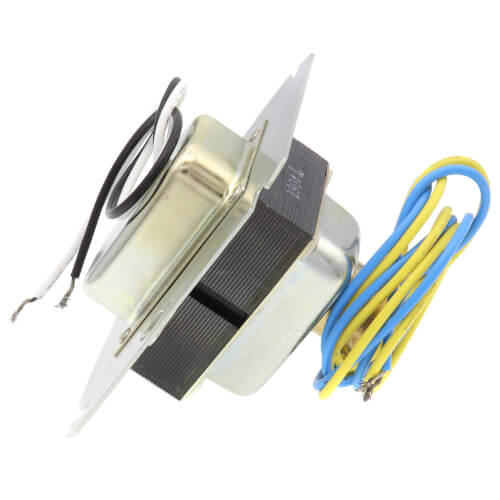

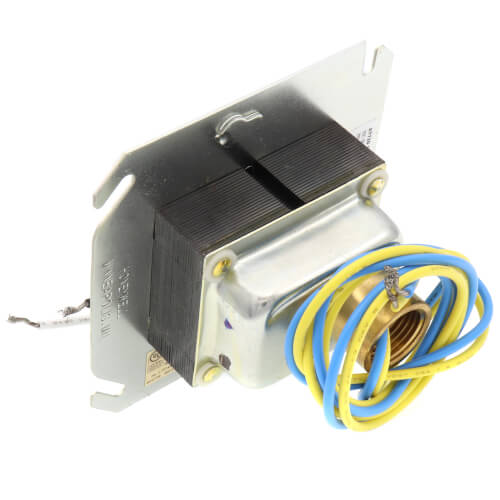

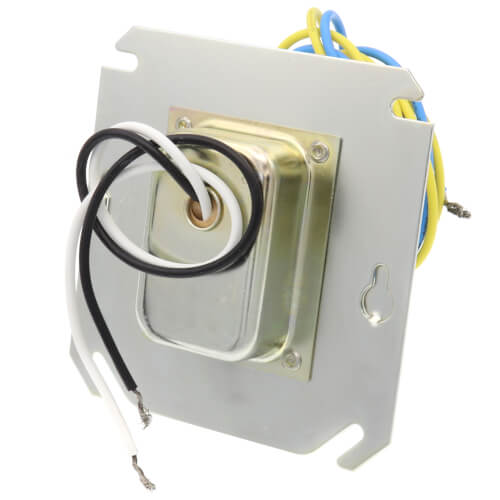

Honeywell Residential AT72D1048 40va Trans 120v-24v (Panel) Mount

Product Description

The HONEYWELL RESIDENTIAL AT72D1048 40VA Transformer is designed to convert 120V input voltage to 24V output voltage. Typically used in panel-mounted applications, this transformer provides a stable and isolated power source for various electronic devices and systems. It is designed to power any 24V control system, including thermostats, gas valves and relays.

• Override protection provided.
• Color-coded leadwires for primary connections.
• Energy limiting, meets NEMA Standard DC20-1992.

Product Highlights

This 40VA transformer provides a safe and reliable power source for 24V devices with a panel-mount design for easy installation. Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: AT72D1048

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: AT72D1048
• Application: 24v Controls
• Mount: Plate
• Voltage (Primary): 120V
• Voltage (Secondary): 26.5 V.O.C.
• Hertz: 60 Hz 50 Hz
• Temperature Range (F): -20°F - 105°F
• VA Rating: 40
• Height: 3-7/32"
• Width: 2-7/32"
• Depth: 1-1/16" into plate x 2" above plate
• Wiring: 1/2" female conduit spud w/ 32" leadwires 9" leadwires
• Electrical Output: 24 Vac at 40 VA
• Electrical Ratings: 120 Vac
• Electrical Connections (Primary)(in): 1/2 in female conduit spud w/32 in. leadwires
• Electrical Connections (Secondary)(in.): 2 (2) screw terminals
• Electrical Ratings -Output: 24 Vac at 40 VA
• Frequency: 60 Hz 50 Hz
• Mounting: 4 x 4 in. plate-mounted, protruding into junction box
