Honeywell Residential ARD5TZ 24v Automatic Round Damper 5 Inch - Truezone

Product Description

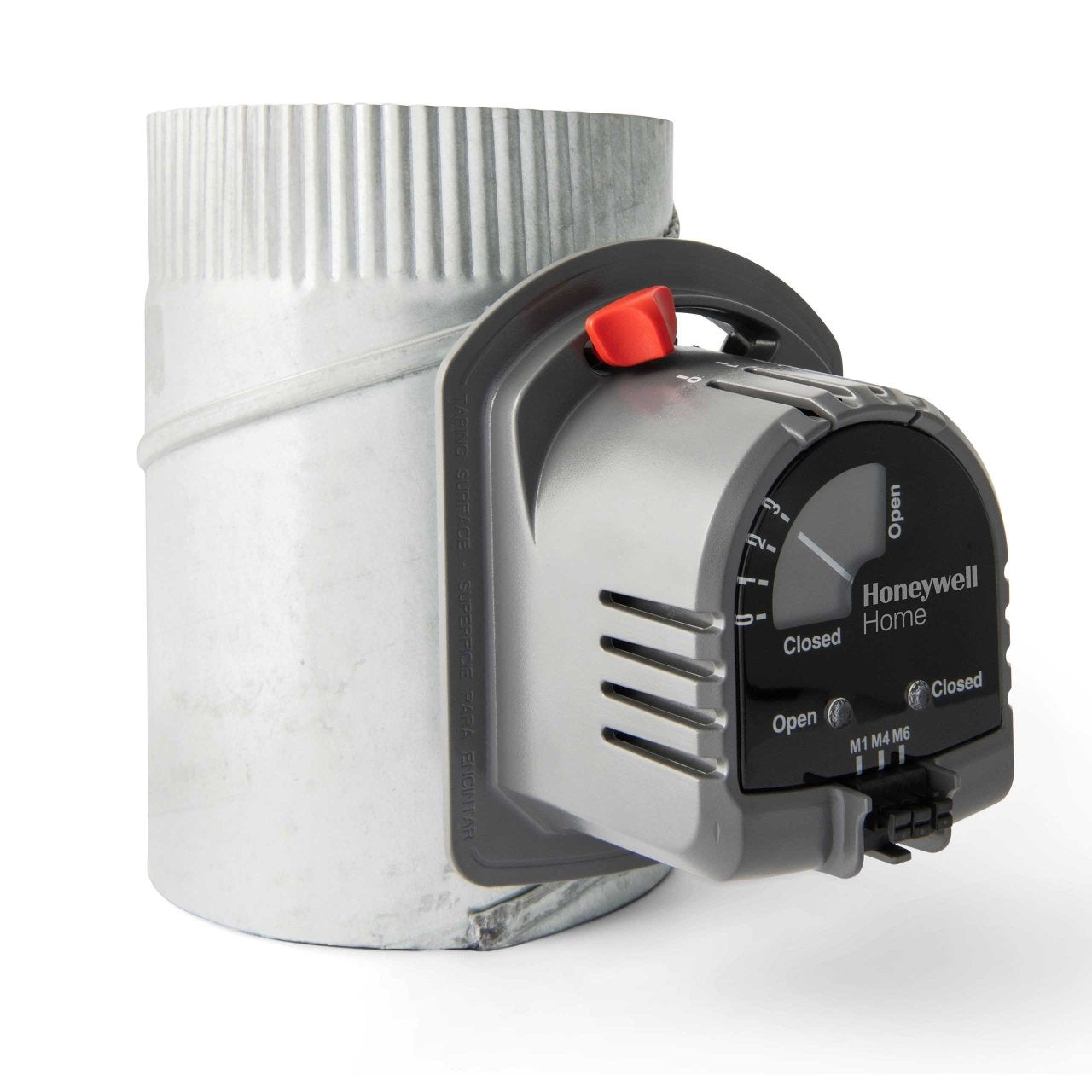

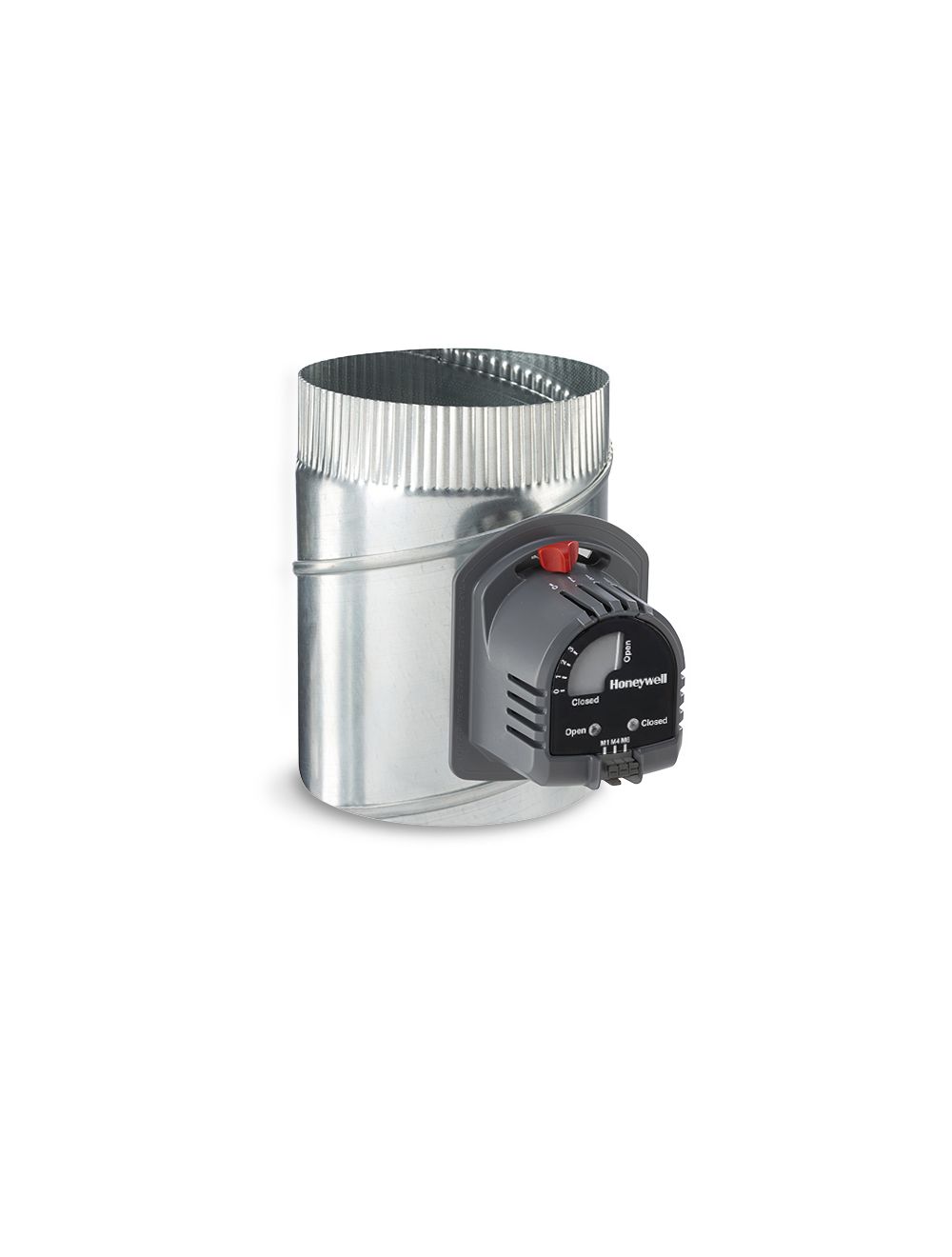

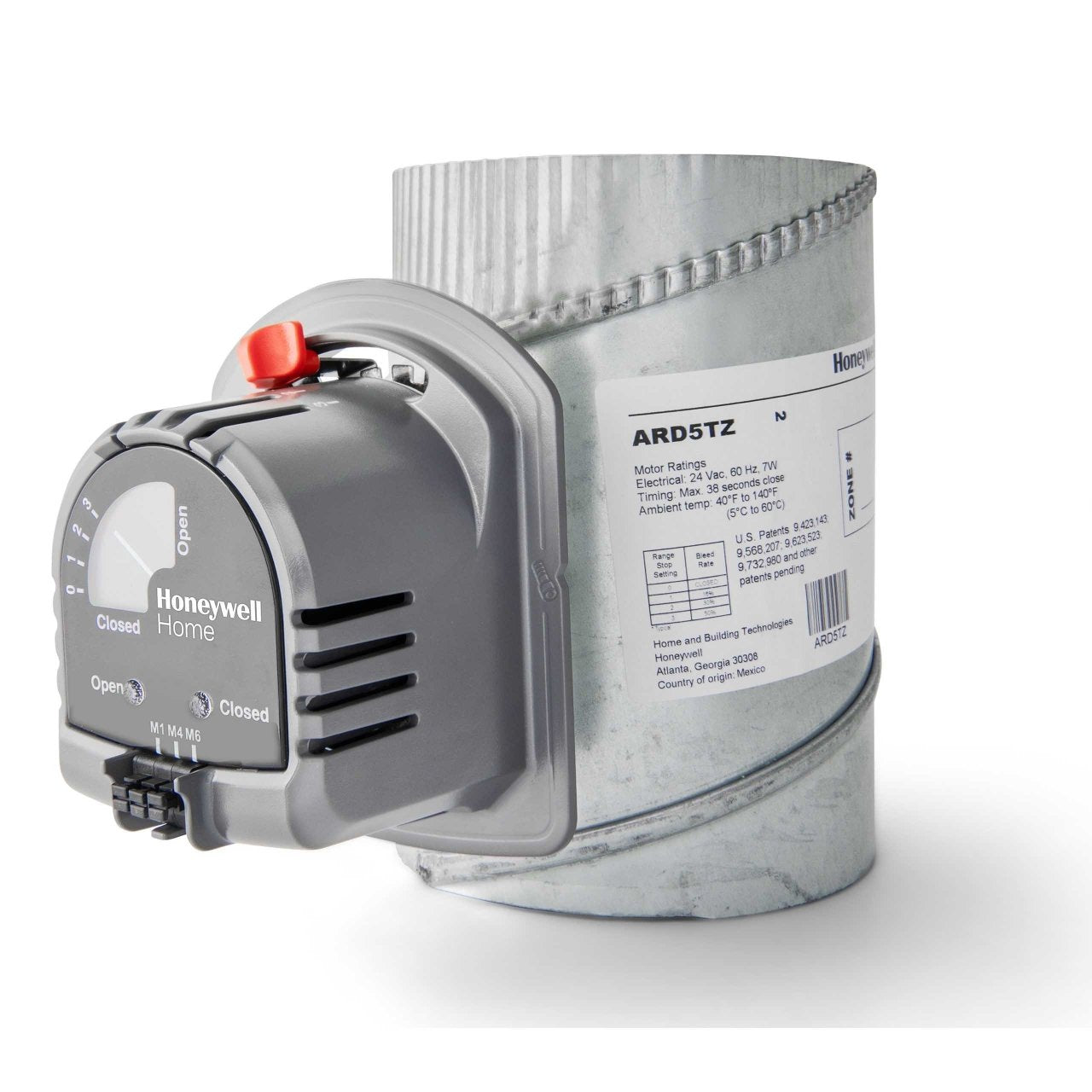

The Honeywell Residential ARD5TZ is a 24-volt automatic round damper designed for HVAC systems. Featuring a normally open configuration, this 5-inch damper ensures optimal airflow by automatically opening when the system is active and closing when the system is turned off. Constructed of galvanized steel with a single blade, it ensures minimal leakage.

• Automatic operation for efficient system control
• Normally open design for unobstructed airflow
• 5-inch diameter suits various ductwork sizes
• Truezone functionality ensures precise airflow adjustments

Product Highlights

Enhance HVAC system efficiency with the Honeywell ARD5TZ, designed to control airflow and ensure optimal system performance in commercial and industrial applications.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: ARD5TZ
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: ARD5TZ
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper

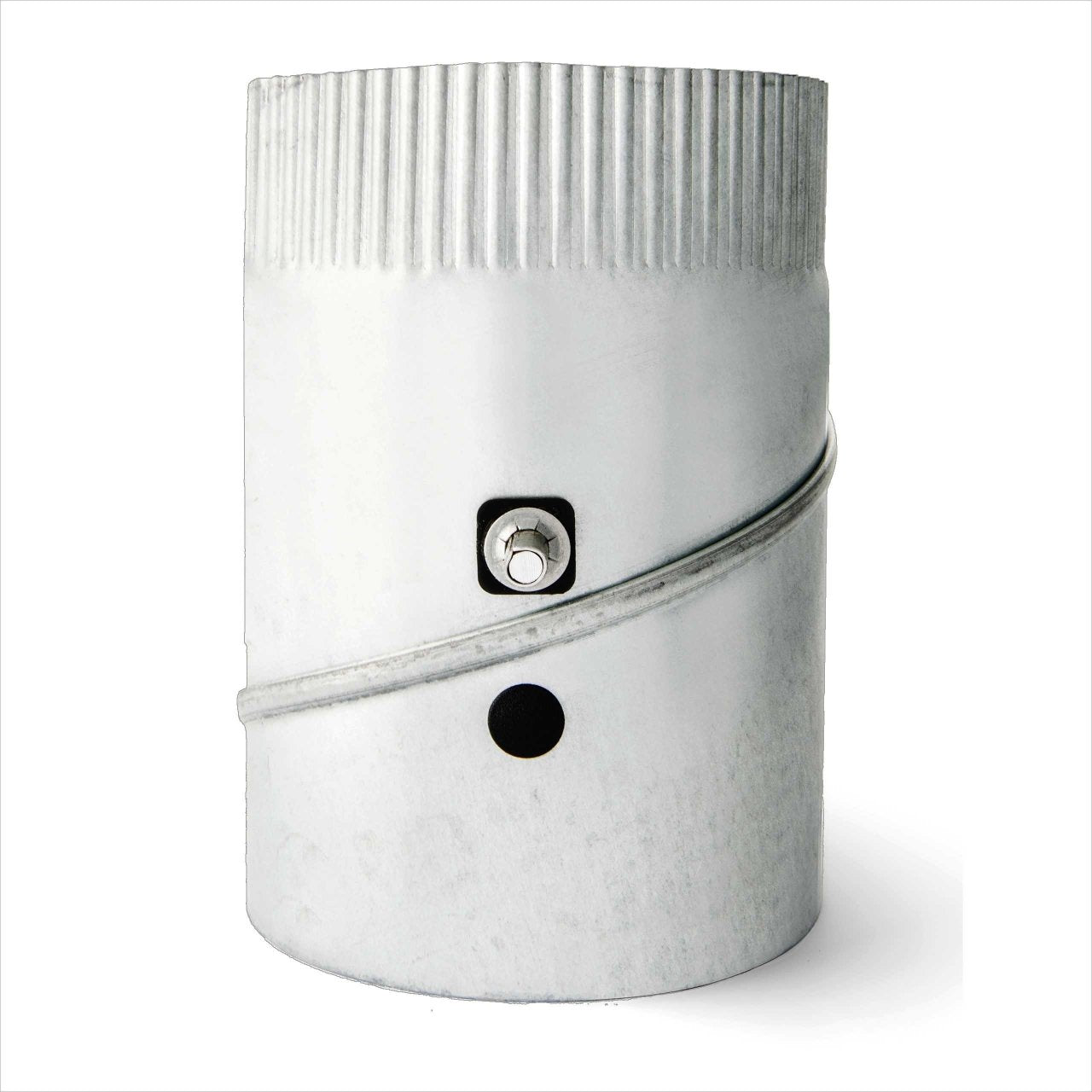

• Damper Material: Galvanized Steel
• Warranty: 1 Year
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes

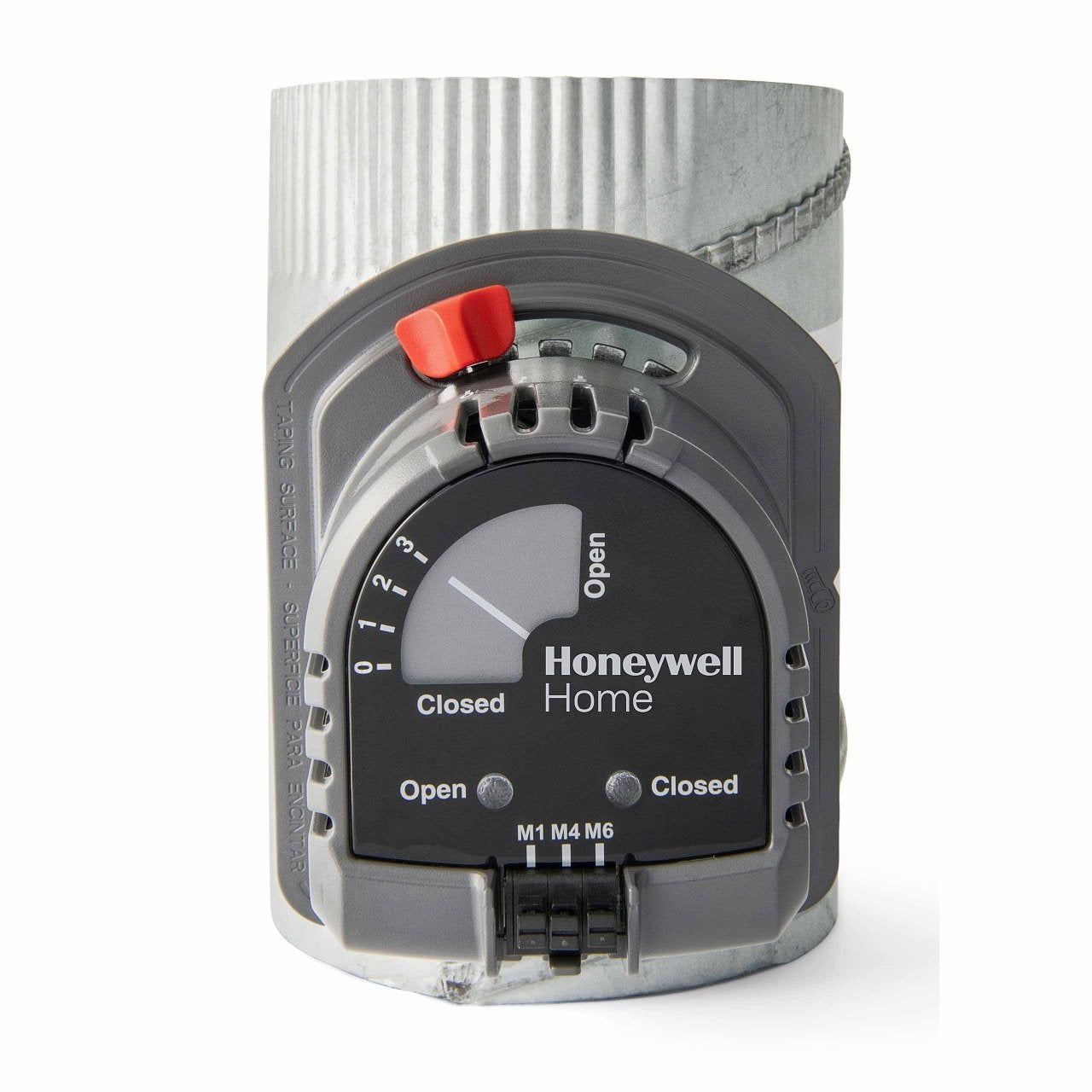

• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Type: Automatic, Round, Single Blade
• Duct Size: 5 Inch Diameter
• Material Thickness: 24 Gauge (Frame), 22 Gauge (Blade)
• Inclusions/Features: Spring Return, Adjustable Close Position Range Stop, Fail Safe, Normally Open Operation
• Warranty Length: 1 year
• Electrical Connections: 2-Wire
• Finish: Galvanized
• Material: Steel
• Motor Type: Power Closed, Reversible, Spring Open
• Rotation Angle: 90 deg
• Shape: Round
• Size: 5 in Dia
• Temperature Rating: 40 to 140 deg F
• Timing: 30 s
• Voltage Rating: 24VAC
• Motor Angular Rotation: 90 Degree
• Maximum Static Pressure Rating: 1 Inch WC
