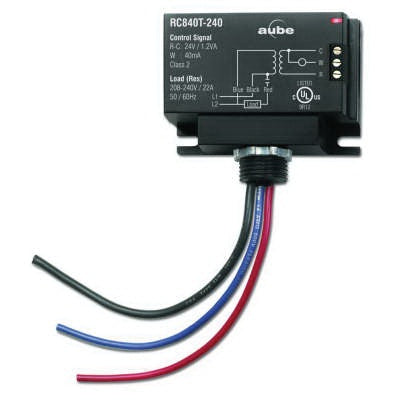

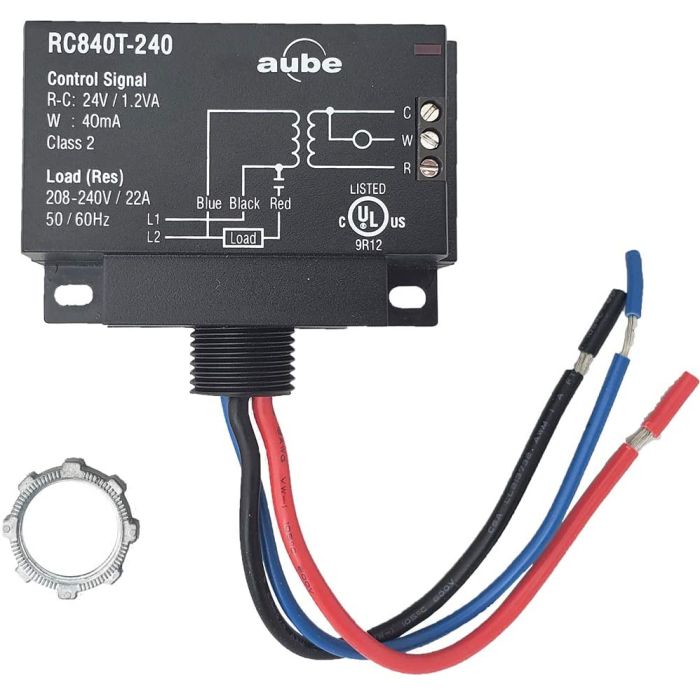

Honeywell RC840T-240/U Electromechanical Relay 24V 40 mA

Product Description

The Honeywell RC840T-240/U is an electromechanical relay designed for controlling a line voltage resistive load. It operates using a low voltage thermostat and is capable of handling control signals of 24 volts and 40 mA. This relay is a direct replacement for any brand name relay and is compatible with both 2-wire and 3-wire connections.

• Direct replacement for any brand relay.
• Compatible with 24V thermostats.
• Immediate relay activation for improved temperature control.

Product Highlights

This relay features improved comfort through quick activation and low current consumption, allowing multiple relays to be controlled by a single thermostat.

Product Information

Standard Information

• Brand: Honeywell
• MPN: RC840T-240/U

Technical Specifications

• Voltage Rating: 208 - 240 Volt AC
• Current Rating: 13 Amp at 208 Volt AC, 12 Amp at 240 Volt AC
• Frequency Rating: 60 Hz
• Conductor Size: 12 AWG
• Dimensions: 3-7/32 Inch Width x 1-13/32 Inch Depth x 2-9/32 Inch Height
• Temperature Rating: -20 to 60 deg C
• Environmental Conditions: 0 - 95% Non-Condensing Relative Humidity
• Standards: UL Listed
