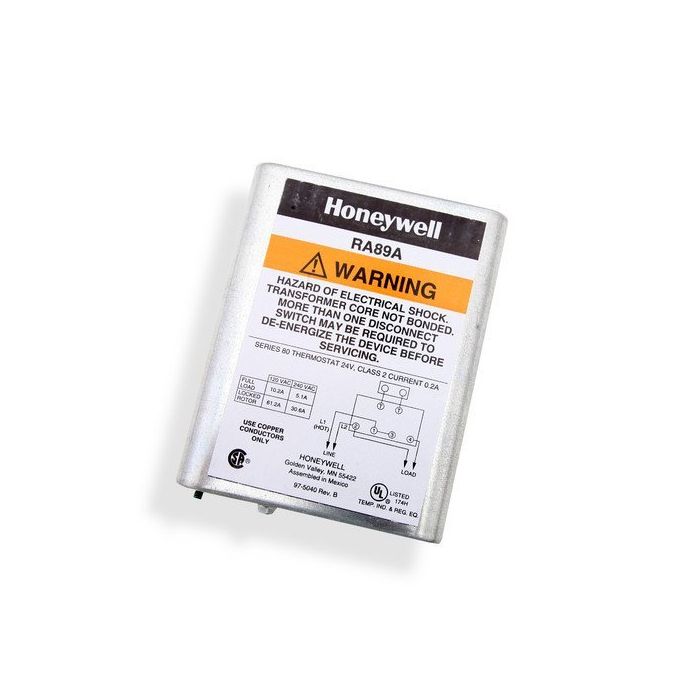

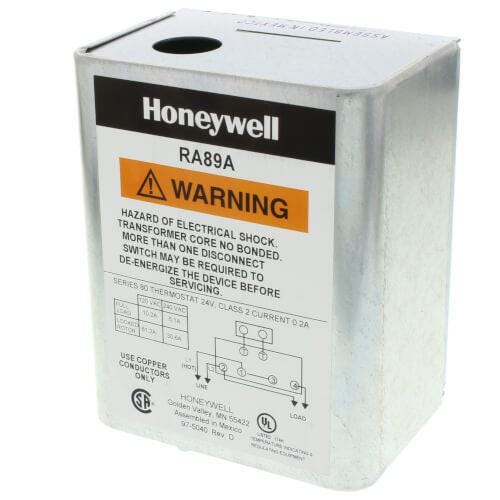

Honeywell RA89A1074/U switching relay with internal transformer 120V

Product Description

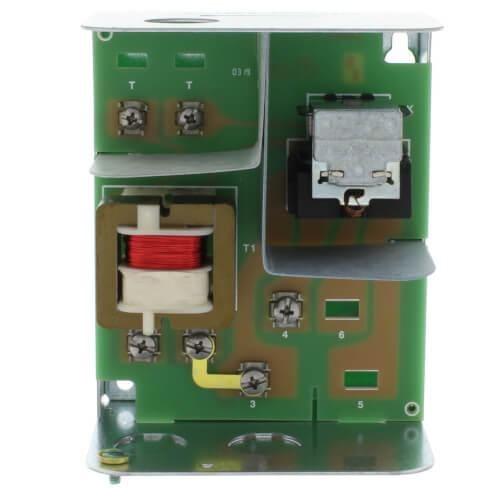

The Honeywell RA89A1074/U is a switching relay with an integral transformer, designed for intermediate switching of line voltage devices from a low voltage controller. This SPST relay features a 24 VAC coil rating and 0.4A current, with 2-wire electrical connections. It includes an integral transformer and enclosure, providing low voltage power for the control circuit, suitable for HVAC and hydronic systems.

• Integral transformer provides low voltage power for the control circuit.
• SPST switching action with a 24 VAC coil rating and 0.4A current.
• Designed for switching one line voltage load, with 2-wire electrical connections.

Product Highlights

This Honeywell RA89A1074/U relay offers reliable SPST switching for HVAC and hydronic systems, featuring an integral transformer for simplified control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RA89A1074/U
• Country of Origin: United States

Technical Specifications

• Manufacturer: Honeywell
• MPN: RA89A1074/U
• Type: SPST
• Coil Rating: 24 VAC
• Current: 0.4A
• Electrical Connections: 2-Wire
• Included Components: Integral Transformer And Enclosure
• Product Type: RELAY
• Electrical Rating: 10.2 A @ 120 VAC, 5.1 A @ 240 VAC (AFL)
• Frequency: 50/60 Hz
• Operating Temperature Range: 105°F to 115°F (ambient)
• Sub Type: LO-Switching Relay

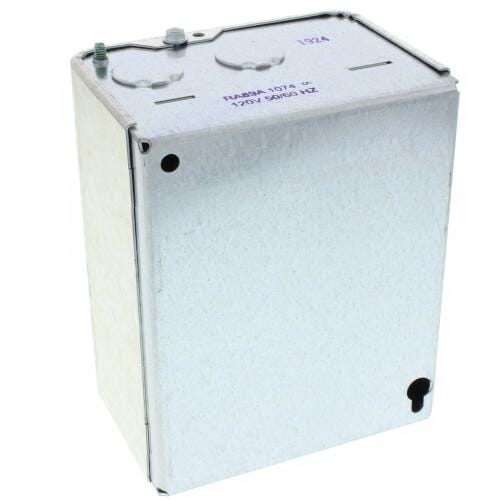

• Mounting Type: Wall
• Power Rating: 5 W
• Application: Enclosed Fan Center, Line Voltage Motor, Evaporator Fan, 1 HP Pump, Wiring Terminal Board, 45 Volt Amp Transformer
