Product Description

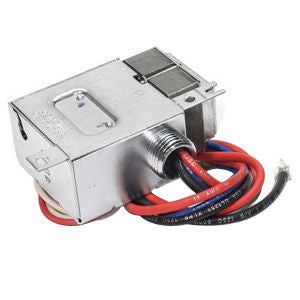

The Honeywell R841D1036 is an electric heater relay designed for use with 24V systems. This SPST relay operates with each cycle of the thermostat, providing reliable control over electric heating equipment. Suitable for various applications, including baseboard, ceiling cable, and duct heaters.
- Operates with thermostat cycles
- Switches up to a 5000 W load
- Can be mounted in any position
Product Highlights
Electric heater relay, 24V coil, SPST configuration, leadwire terminal, can be mounted in any position
Product Information
Standard Information
-
Manufacturer: Honeywell
-
MPN: R841D1036
Technical Specifications
-
Type: Electric
-
Series: R841D
-
Dimensions: 3-7/8 inches L x 2-13/16 inches W x 1-1/2 inches D
-
Coil Voltage: 24 V
-
Mounting Type: Any Position
-
Terminal Type: Leadwire
-
Contact Configuration: SPST
-
Contact ratings (AFL): 7 A at 208 VAC, 240 VAC, 277 VAC; 14 A at 120 VAC
-
Contact ratings (ALR): 84 A at 120 VAC; 42 A at 208 VAC, 240 VAC, 277 VAC
-
Contact ratings (resistive): 22 A at 120 VAC, 208 VAC, 240 VAC; 19 A at 277 VAC
-
Lead wire electrical connection: 50/60 Hz
-
Application: Baseboard, Ceiling Cable, and Duct Heaters
-
Certifications: CSA Certified, UL Listed
