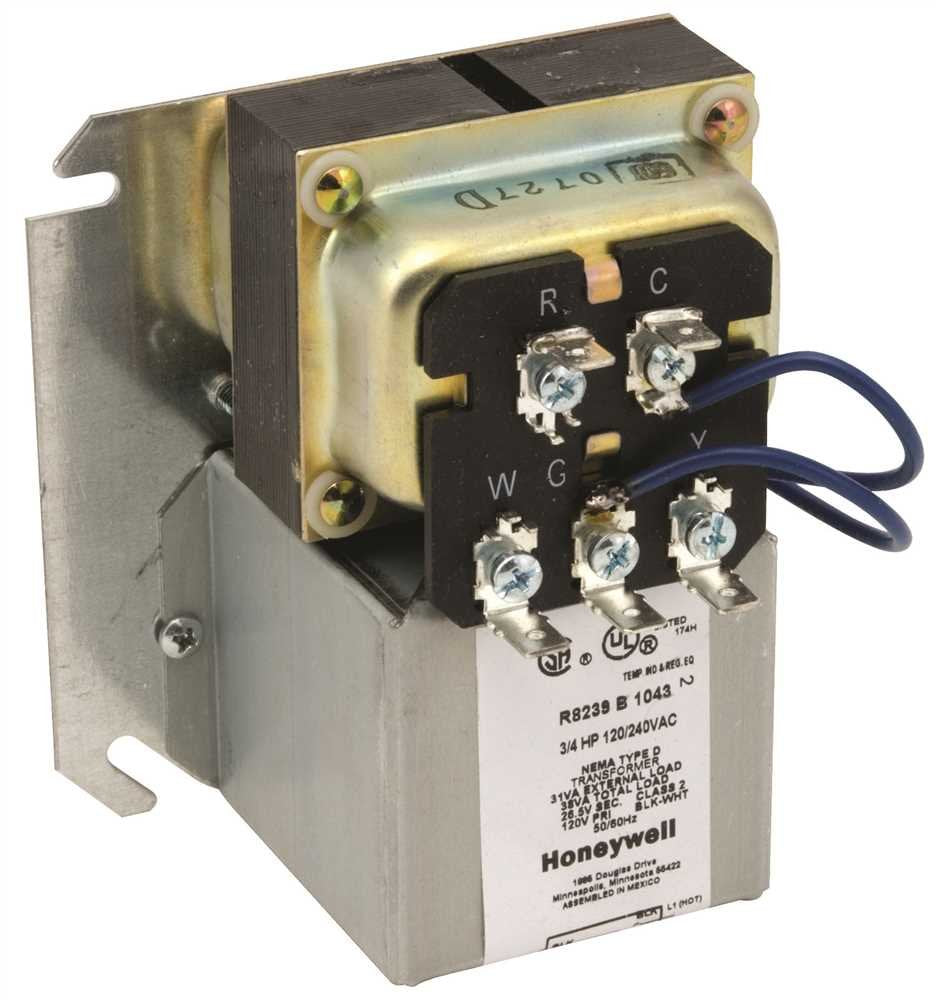

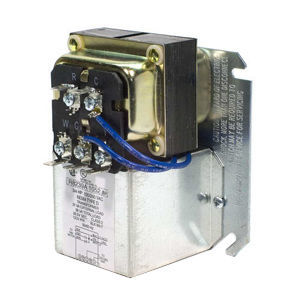

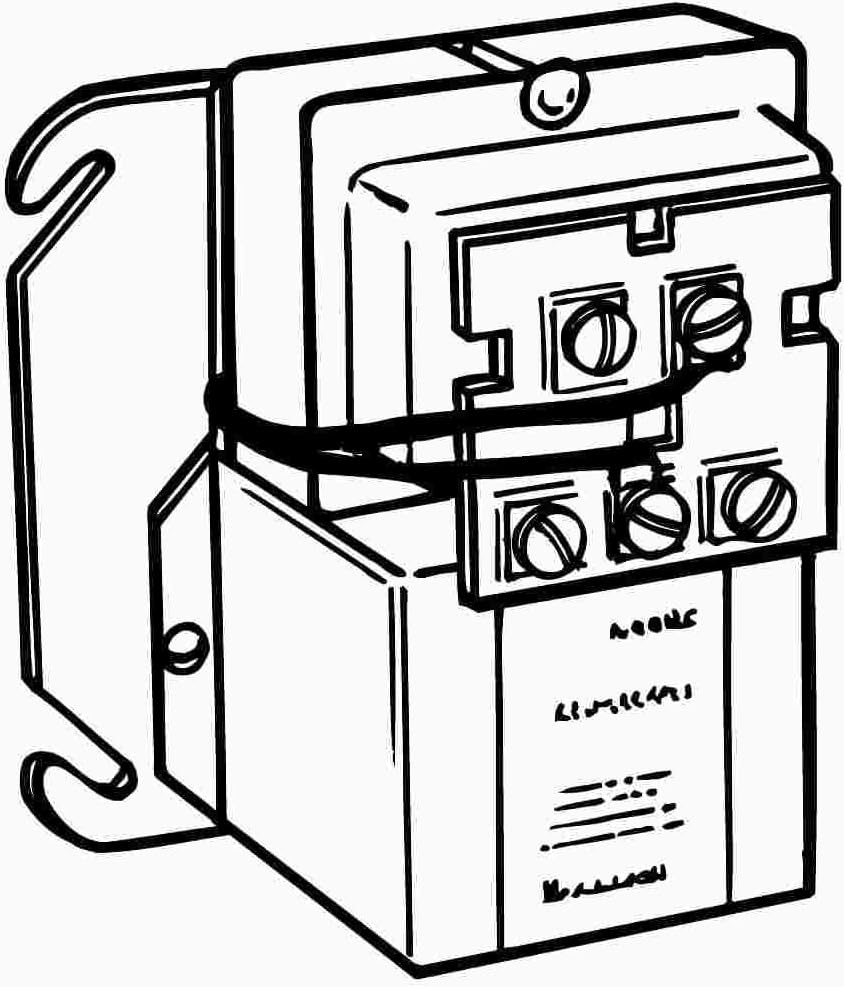

Honeywell R8239B1076 Dpdt Fan Control Center

Product Description

The Honeywell R8239B1076 Dpdt Fan Control Center is an essential component for HVAC systems. It offers precise control for fan motors and auxiliary circuits in both heating and cooling systems.

• Ensures low voltage control of line voltage fan motors.
• Includes a NEMA standard type D transformer.
• Convenient connections for wiring.

Product Highlights

Ideal for HVAC systems, the Honeywell R8239B1076 is equipped with overload protection for its transformer and mounts easily on a standard junction box. It is suitable for systems with electronic air cleaners and humidifiers.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: R8239B1076
• Color: Silver
• Warranty: 2 Years

Technical Specifications

• Dimensions: 4-1/2 inches H x 4-3/16 inches W x 3-3/32 inches D
• Voltage Rating: 120/208/240 VAC
• Power Rating: 3/4 hp
• Frequency Rating: 50/60 Hz
• Coil Voltage: 20 VA Inrush, 10 VA Sealed
• Contact Material: Silver Cadmium Oxide
• Mounting Type: 4 x 4 inches Junction Box
• Contact Configuration: DPDT
• Application: For System with F50 Electronic Air Cleaner Humidifier and Blower Motor
• Standards: CSA Approved, UL Listed, NEMA DC20-1992
