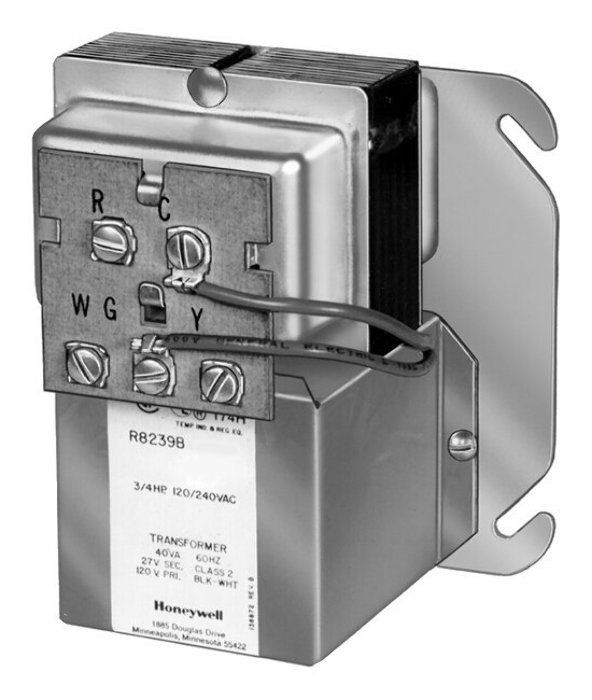

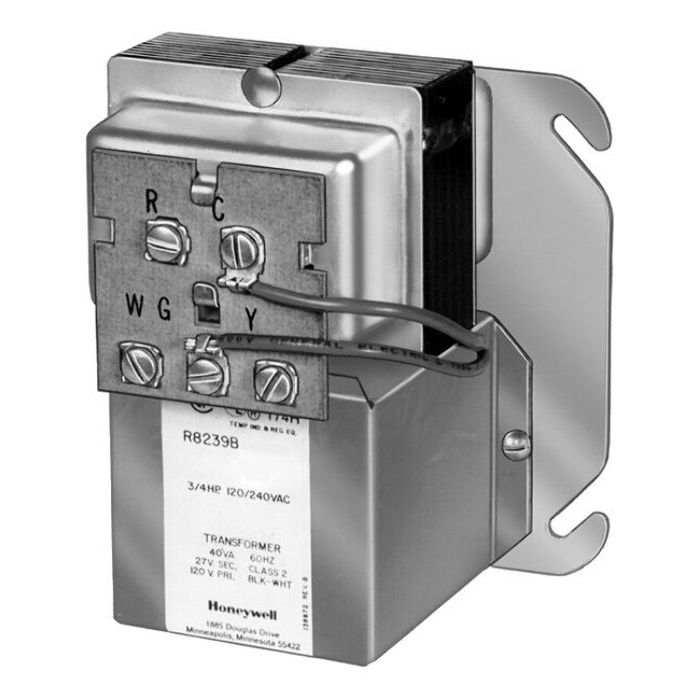

Honeywell R8239B1043/U Control Center 3/4 HP 120 VAC 40 VA 12 W Maximum DPDT Switching

Product Description

The HONEYWELL R8239B1043/U Control Center provides low voltage control for line voltage fan motors and auxiliary circuits in heating, cooling, or combined heating-cooling systems. It is suitable for applications with F50 electronic air cleaners, humidifiers, and blower motors. This unit features a 3/4 HP capacity, operates at 120 VAC, with a 40 VA rating and a maximum of 12 W, utilizing DPDT switching. A NEMA standard transformer is included for stable voltage control.

• NEMA Standard Type D Transformer powers low voltage control systems.
• Provides overload protection for the transformer.
• Offers convenient connections for thermostat and heating-cooling equipment wiring.

Product Highlights

Integrates low voltage control for HVAC systems with a NEMA standard transformer and DPDT switching.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: R8239B1043/U
• Country of Origin: United States

Technical Specifications

• Application: For System With F50 Electronic Air Cleaner Humidifier And Blower Motor
• Horsepower: 0.75 HP
• Input Voltage: 120 VAC
• VA Rating: 40 VA
• Maximum Wattage: 12 W
• Switching Type: DPDT
• Product Type: TRANSFORMER
• NEMA Standard: Type D Transformer Powers 24 VAC Control Systems and Relay Enclosure
• Certifications: CSA Certified | UL Listed
• Series: R8239B
