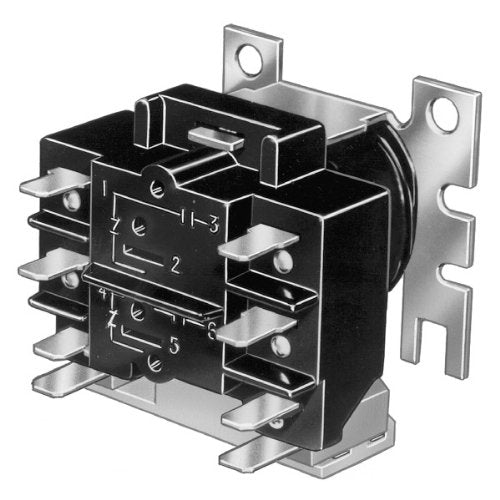

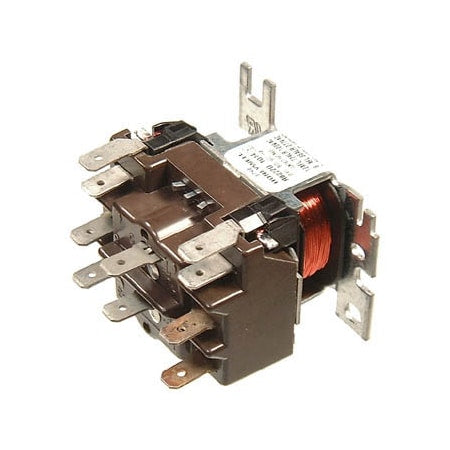

Honeywell R8228D1018 Heavy Duty Switching Relay DPST N.O. Surface Mount

Product Description

The Honeywell R8228D1018 is a dependable heavy-duty switching relay designed for various industrial applications. It operates on AC power and features a double pole single throw (DPST) normally open (N.O.) contact configuration. It is approved by UL and CSA for reliable performance.

• DPST, N.O. contact configuration
• Surface mounting for easy setup
• UL and CSA approved for safety

Product Highlights

This relay is built for use in refrigeration, air conditioning, and vending machines. It offers reliable switching with a coil voltage of 24 volts AC at 50/60 Hertz. The Honeywell R8228D1018 supports currents up to 25 amps at 277 volts AC in resistive applications and up to 15 amps at 480 volts AC in inductive applications.

Product Information

Standard Information

• Application: Refrigeration, Air Conditioner, Vending Machine
• Mounting: Surface

Technical Specifications

• Contact Configuration: DPST, N.O.
• Approval: UL, CSA
• Terminal Type: 1/4 inch Quick-Connect
• Coil Voltage: 24 Volts AC at 50/60 Hertz
• Contact Current Rating: 3 Amp at 480 Volts AC, 5.5 Amp at 120/208-240/277 Volts AC (Full Load), and 25 Amp at 277 Volts AC (Resistive)
• Contact Voltage Rating: 480 Volts AC at 50/60 Hertz
• Temperature Rating: -20 to 155 degrees Fahrenheit
• Overall Dimensions: 2-5/32 in. Width x 2-3/8 in. Depth x 1-7/8 in. Height
