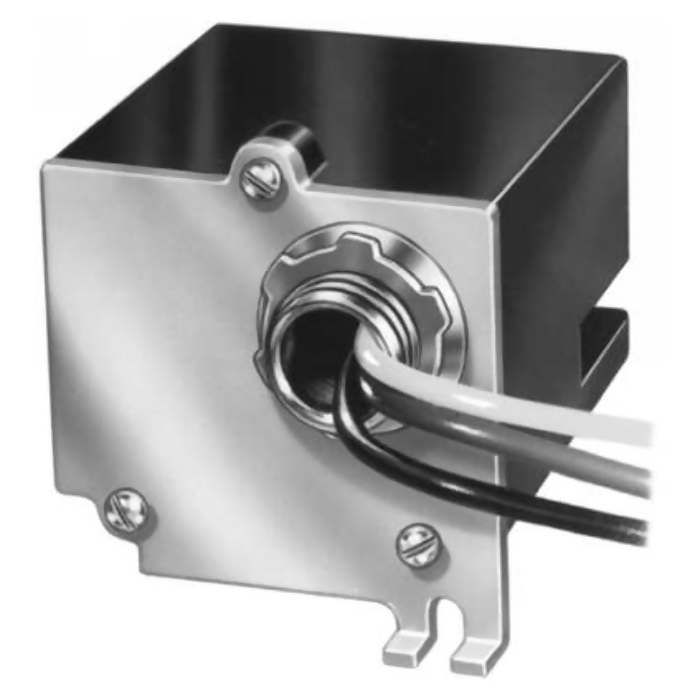

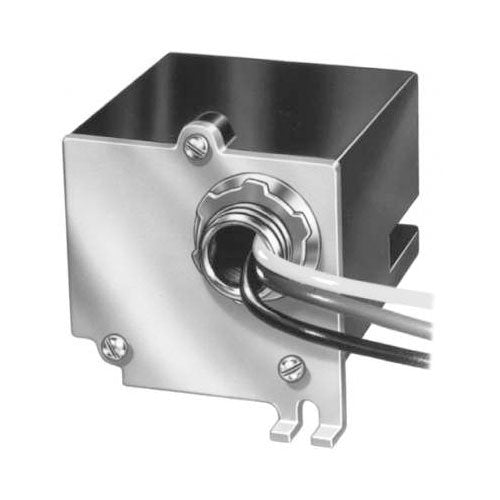

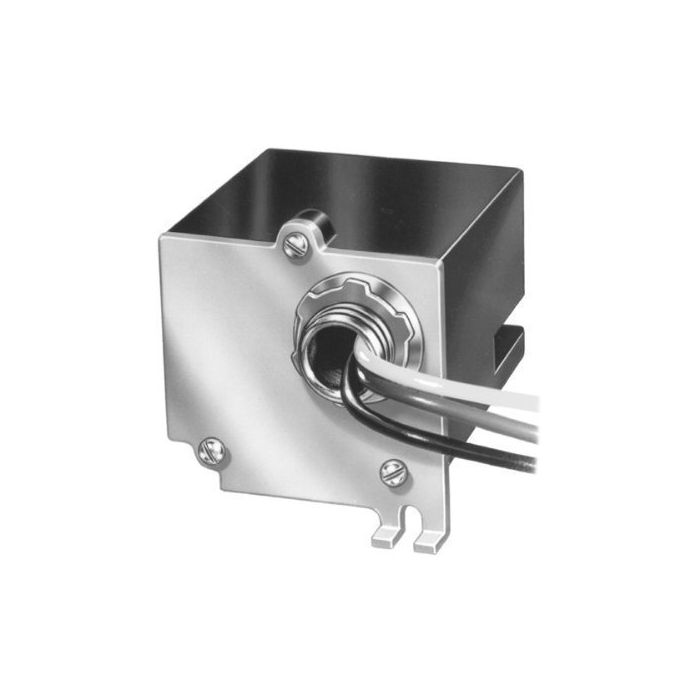

Honeywell R8225D1003/U Spud Mount DPST Fan Relay 24 VAC Coil

Product Description

The Honeywell R8225D1003/U is a spud mount DPST fan relay with a twenty-four VAC coil. This relay is suitable for general purpose and heavy-duty switching applications. It has molded terminal numbers and a circuit diagram for easy identification. The design allows for quick replacement of competing relays. The relay is used for controlling line voltage fan motors and auxiliary circuits.

• General purpose and heavy-duty switching
• Molded terminal numbers and circuit diagram on top
• Laminated magnet construction enhances efficiency

Product Highlights

Reliable relay for effective control in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R8225D1003/U

Technical Specifications

• Connector Type: Plug-In
• Contact Material: Silver
• Contact Type: DPST
• Mounting Type: Spud Mount
• Coil Voltage: 24 VAC
• Contact Rating (Amps): 7.0 F.L. Amp 240 VAC
• Country of Origin: MX
• Switch: DPST, Normally Open, 1-Main, 1-Auxiliary
• Coil Rating: 24 VAC
• Contact Position: Normally Open
