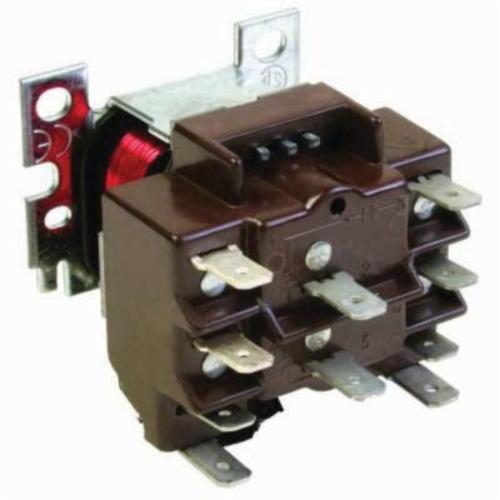

Honeywell R8222V1003/U General Purpose Relay, 24 VAC Coil

Product Description

The Honeywell R8222V1003/U is a general purpose relay with a coil voltage of 24 VAC. It is widely used in HVAC systems for controlling various electrical circuits. This relay features molded terminal numbers and a convenient circuit diagram on the relay top for easy identification during wiring and troubleshooting.

• Molded terminal numbers and circuit diagram for easy wiring
• Open coil ensures cooler operation
• Base designed for easy replacement of competitive relays

Product Highlights

This relay is built for high efficiency with laminated magnet construction. It is compatible with different systems, making it ideal for HVAC technicians.

Product Information

Standard Information

• Brand: Honeywell
• Coil Voltage: 24 VAC

Technical Specifications

• Contact Rating: 3 A
• Dimensions: 1-7/8 inches H x 2-5/32 inches W x 2-3/8 inches D
• Frequency Rating: 50/60 Hz
• Pack Quantity: 20 pk
• Package Weight: 0.45 lb
• Series: R8222
• Specifications: -20 to 115 degrees F
• Country of Origin: MX
• Mfg Standards/Approvals: CSA File No. LR35066, Guide 184-N-13.13, UL File No. E59779, Guide NLDX2
