Honeywell R8222D1014/U General Purpose Relay with DPDT Switching 24 V (Pack of 1)

Product Description

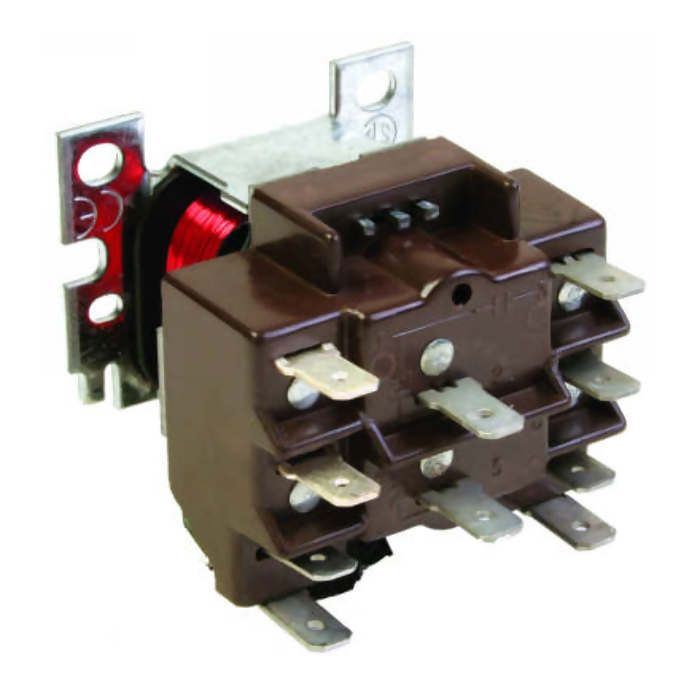

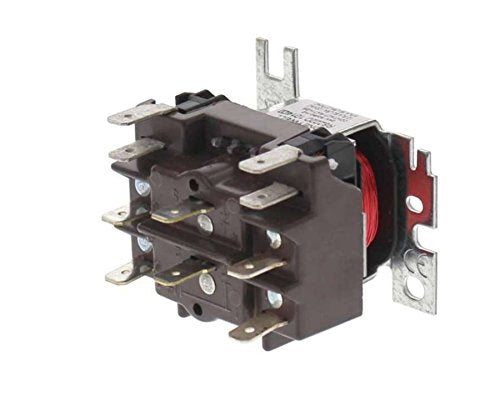

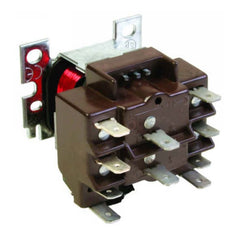

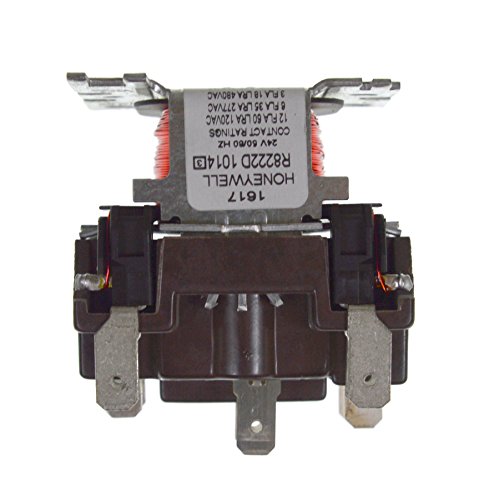

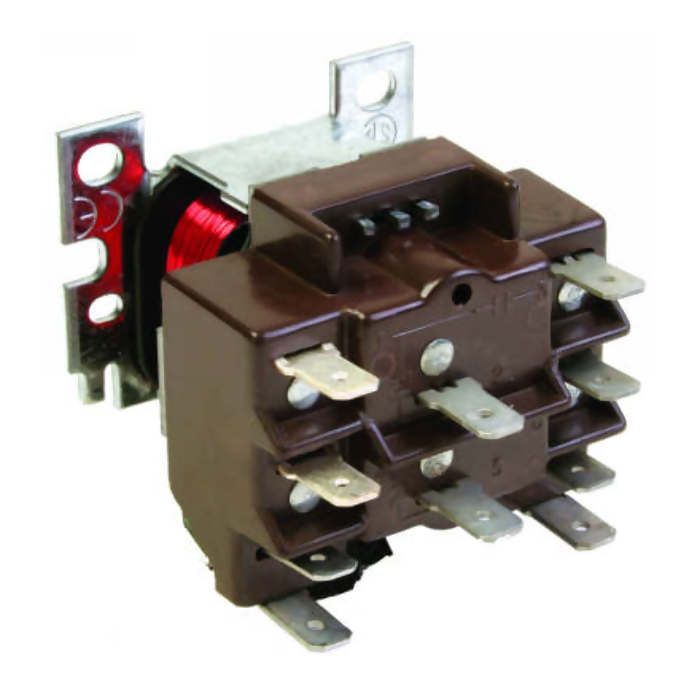

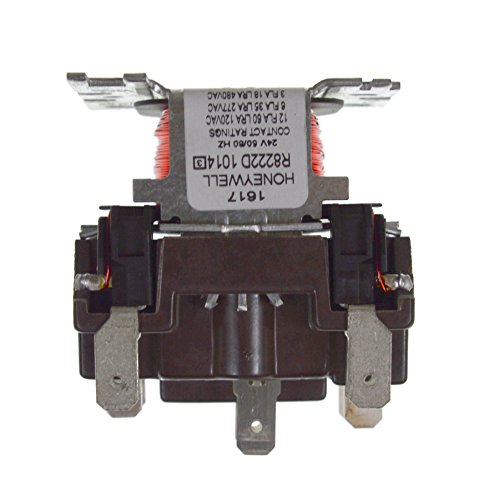

Honeywell R8222D1014/U is a general-purpose electromechanical relay with DPDT (double-pole double-throw) switching and a 24 V coil, intended for industrial and control-system switching applications. The relay features laminated magnet construction, molded terminal identification, and compact packaging (3.58 x 2.83 x 2.32 inches). Typical uses include HVAC controls, industrial equipment switching, and pilot-duty control circuits.

• DPDT (double-pole double-throw) contact configuration with two poles
• 24 V coil with 12 VA coil rating, 1/4 in quick-connect terminals (double quick-connects available on coil)
• Contacts rated up to 600 VAC; ambient operating range -20 F to 155 F (-29 C to 68 C)

Product Highlights

DPDT electromechanical relay, 24 V coil, laminated magnet construction, quick-connect terminals

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: R8222D1014/U

Technical Specifications

• Brand: Honeywell
• MPN: R8222D1014/U
• Model: R8222D1014/U
• Function: General purpose relay
• Contact Configuration: DPDT (Double Pole Double Throw)
• Number of Poles: 2
• Coil Voltage: 24 V
• Coil VA: 12 VA
• Coil Connection Size: 1/4 in (6 mm)
• Terminals: 1/4 in quick-connect terminals (double quick-connects available on coil terminals)
• Contact Voltage Rating: Up to 600 VAC
• Pilot Duty Rating: Minimum 3 VA @ 24 V AC, 120 V AC, 480 V AC; Maximum 25 VA @ 24 V AC; Maximum 125 VA @ 120 V AC, 240 V AC, 480 V AC; Resistive 3 A @ 277 V AC (0.75 power factor); PowerPile (NO contacts only) 0.25 A @ 0.25 to 12 V DC
• Construction: Laminated magnet construction
• Identification: Molded terminal numbers and circuit diagram on top
• Operating Frequency: 50 Hz | 60 Hz
• Ambient Operating Temperature: -20 F (-29 C) to 155 F (68 C)
• Dimensions: 3.58 x 2.83 x 2.32 inches
• Weight: 7.65 ounces
