Honeywell R8184G4009/U Protectorelay Oil Burner Control 120/240 VAC (1)

Product Description

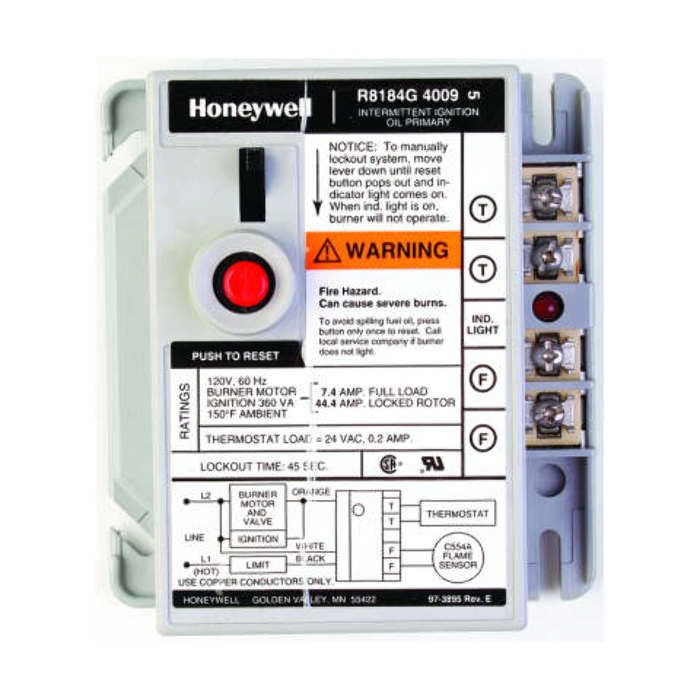

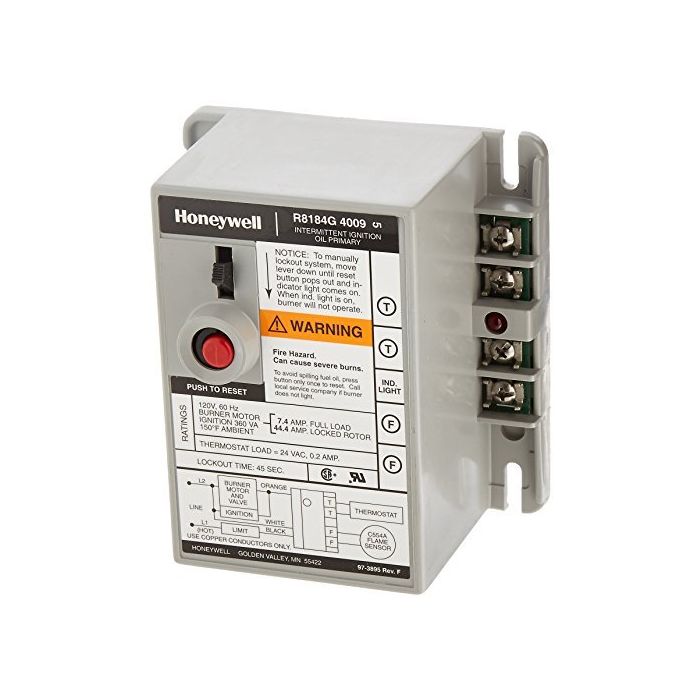

Honeywell R8184G4009/U is a protectorelay oil burner control for intermittent ignition oil burner systems that provides automatic, nonrecycling control and a 45 second lockout timing. It senses flame with a solid-state circuit and controls the burner, optional oil valve, and ignition transformer in response to a call for heat. The unit mounts to a standard 4 in. x 4 in. junction box or directly to burner housing.

• Intermittent ignition control with 45 second lockout and LED lockout indication
• Solid-state flame sensing circuit; requires C554A cadmium sulfide flame detector and 24 VAC thermostat
• Enclosed safety switch with external reset and manual trip lever; mounts on 4 in. x 4 in. junction box or burner housing

Product Highlights

Protectorelay oil burner control, intermittent ignition, 45 s lockout, solid-state flame sensing; mounts to 4 x 4 junction box; requires C554A detector and 24 VAC thermostat.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: R8184G4009/U

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: R8184G4009/U
• Model: R8184G4009
• Product Type: Protectorelay oil burner control
• Input Voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Full Load Current: 7.4 A @ 120 VAC; 3.7 A @ 240 VAC
• Locked Rotor Current: 44.4 A @ 120 VAC; 22.2 A @ 240 VAC
• Alarm Load Rating: Pilot duty
• Operating Temperature: -40 to 130 F
• Ignition Type: Intermittent
• Lockout Timing: 45 seconds
• Mounting: Mounts on a standard 4 in. x 4 in. junction box or direct mounting on burner housing
• Flame Detector Requirement: Requires C554A cadmium sulfide flame detector
• Thermostat Requirement: Requires 24 VAC thermostat
• Controls: Controls oil burner, optional oil valve, and ignition transformer in response to a call for heat
• Safety Switch: Enclosed safety switch with external reset and manual trip lever
