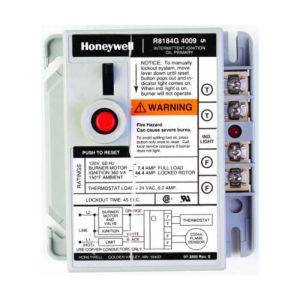

Honeywell R8184G4009/U Protectorelay Oil Burner Control

Product Description

The Honeywell R8184G4009/U is an oil burner control designed for HVAC applications. This device features a 45-second lockout timing and intermittent ignition type. It includes an LED for lockout indication and a manual trip lever on the safety switch to ensure safe burner shutdown during service.

• Mounting options on a standard four inches by four inches junction box or direct mounting on the burner housing.
• Enclosed safety switch with an external reset button for convenience.
• Controls the oil burner, oil valve, and ignition transformer in response to heating demands.

Product Highlights

The Honeywell R8184G4009/U offers reliable performance with solid-state flame sensing circuits. It requires a C554A cadmium sulfide flame detector and a twenty-four VAC thermostat for optimal functionality.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R8184G4009/U

Technical Specifications

• Lock Out Timing: 45 seconds
• Ignition Type: Intermittent
• Safety Switch: Enclosed with external reset
• Flame Detection: C554A cadmium sulfide
• Power Requirement: 24 VAC
• Mounting Options: Standard four by four junction box or burner housing
