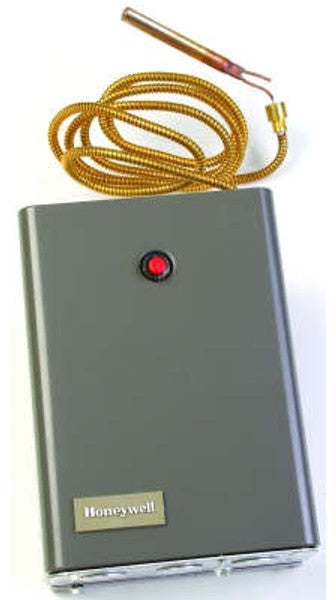

Honeywell R8182D1111/U Triple Aquastat Relay

Product Description

The Honeywell R8182D1111/U is a horizontal mount aquastat controller. It is designed for use in oil-fired hydronic heating systems. This device acts as both a controller and an oil burner primary control. It features high limit and low limit/circulator control functionality.

• Flame failure during operation triggers a safety restart attempt.
• Allows for zone control with zone valves.
• Features a manual reset safety switch with a 45-second timing.

Product Highlights

This aquastat relay is suitable for intermittent ignition applications and has multiple safety features that enhance its reliability.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R8182D1111/U

Technical Specifications

• Application: Oil Fired, Hydronic Heating System
• Mounting: Horizontal
• Limit Type: High and Low
• Temperature Range (F): Maximum--250 F
• Operating Temperature Range (F): High Limit--130 F to 240 F; Low Limit--110 F to 220 F
• Maximum Safe Operating Pressure: 200 PSI (Immersion Well), 100 PSI (Direct Immersion)
• Contact Configuration: SPST
• Electrical Ratings: 4.4 Amp at 120 Volt AC Full Load
• Power Consumption: 9 W
• Overall Dimension: 5-1/4 Inch Width x 3-7/16 Inch Depth x 7-1/8 Inch Height
• Product Weight: 4.6 Pounds
• UL Listed: Yes
• CSA Listed: Yes
