Honeywell R7851B1000/U flame signal amplifier FFRT 2, 3 sec

Product Description

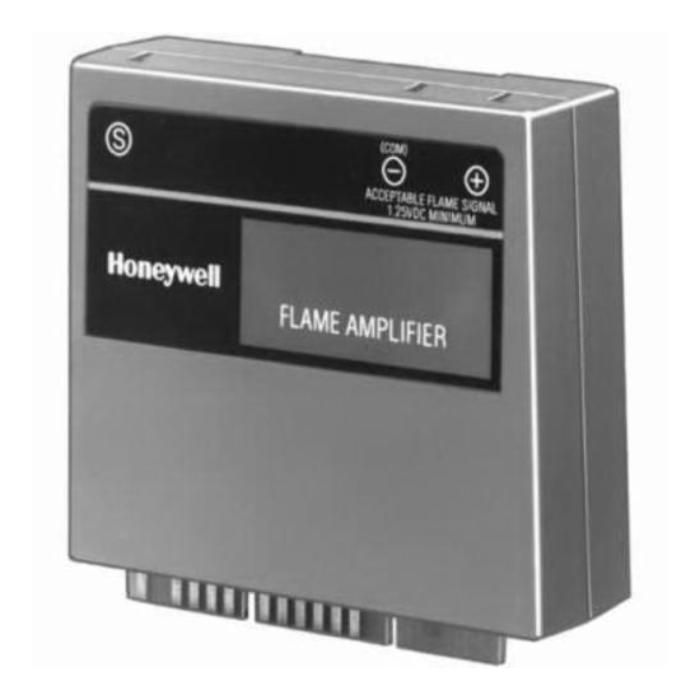

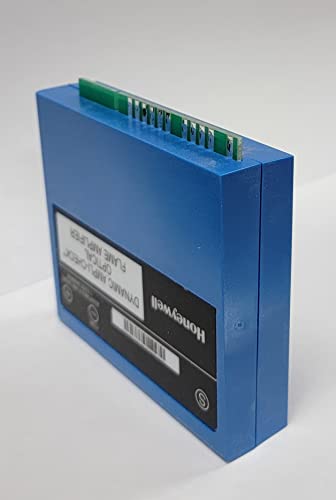

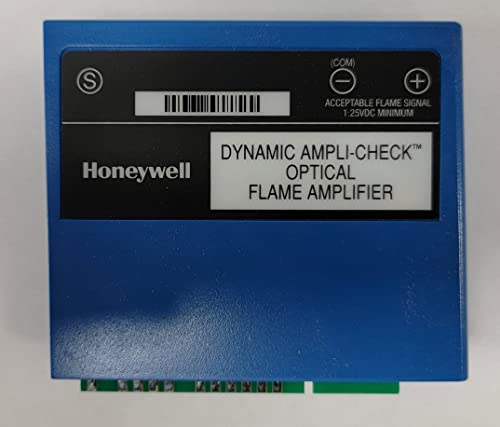

The Honeywell R7851B1000/U is a solid state plug-in flame signal amplifier designed for use with 7800 Series relay modules. It features a 2.0 or 3.0 second flame failure response time and Ampli-Check self-checking capabilities. This amplifier responds to flame detector inputs to indicate flame presence, with flame signal strength ranging from 0.0 to 5.0 VDC. It is compatible with optical (UV, Visible light) C7927 and C7962 flame sensors for gas, oil, and coal applications.

• Use with optical (UV, Visible Light) C7927, C7962 flame sensors.
• Integrates with 7800 Series Relay Modules for primary safety control.
• Provides flame signal strength from 0.0 to 5.0 VDC.

Product Highlights

Solid state plug-in amplifier with Ampli-Check self-checking and 2.0 or 3.0 second flame failure response time.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: R7851B1000/U
• Country of Origin: United States

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT
• Manufacturer: Honeywell
• Self Check: AMPLI-CHECK
• Flame Signal Type: OPTICAL
• MPN: R7851B1000/U
• Standard Approvals: CSA File No LR95329-3, Guide No MCCZ, UL File No MP268
