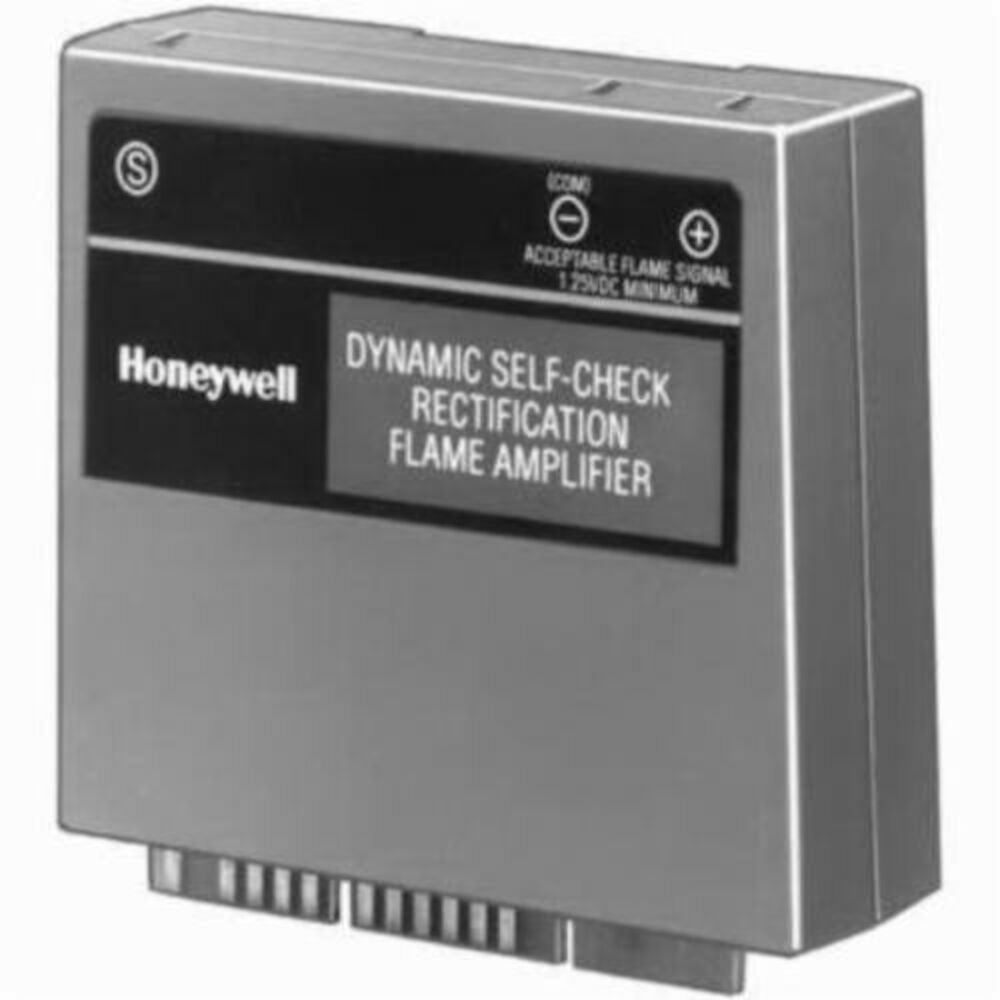

Honeywell R7849A1023/U Flame Signal Amplifier

Product Description

The Honeywell R7849A1023/U is a flame signal amplifier designed for gas and oil applications. This device features a flame failure response time of either two seconds or three seconds. It operates with various flame sensors, and its signal strength ranges from zero to five volts direct current.

• Flame signal strength measures from 0.0 to 5.0 VDC
• Compatible with Honeywell 7800 series relay modules
• Easy installation with keyed printed circuit board edge connector

Product Highlights

This amplifier provides reliable flame detection and is essential for safe operation in combustion systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R7849A1023/U

Technical Specifications

• Flame Failure Response Time: 2.0 or 3.0 seconds
• Use with Flame Sensors: Gas, Oil, Minipeeper Models C7027A, C7035A, C7044
• Connection Type: Plug into 7800 relay module
• Signal Test Jacks: To measure amplifier flame signal voltage
• Color-Coded Labels: Identify flame detection type
