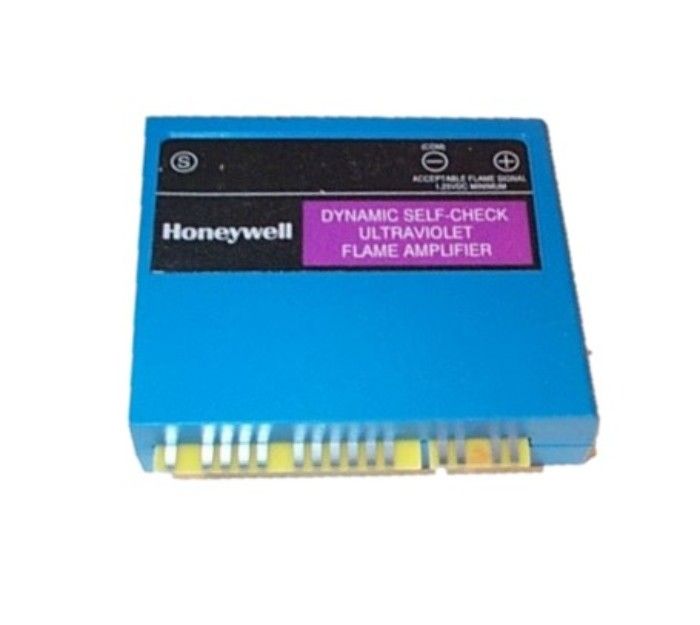

Honeywell R7849A1015/U Flame Signal Amplifier Power 1 Pack Replacement MPN

Product Description

The Honeywell R7849A1015/U Flame Signal Amplifier is designed for use with various flame sensors. This amplifier ensures reliable flame detection and is compatible with both gas and oil systems. It features a response time of zero point eight seconds or one second for flame failure, which is critical for safety in burner controls.

• Compatible with Minipeeper sensors such as C7027A, C7035A, C7044.
• Works seamlessly with 7800 Series Relay Modules.
• Measures flame signal strength from zero to five volts DC.

Product Highlights

The amplifier interacts with the 7800 Relay Module via a printed circuit board edge connector. This design guarantees proper orientation and connection. Additionally, it includes flame signal test jacks for measuring the flame signal voltage, ensuring effective testing and maintenance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R7849A1015/U

Technical Specifications

• Flame Failure Response Time: 0.8 seconds or 1.0 second
• Flame Signal Strength: 0.0 to 5.0 VDC
• Connection Type: Plug into 7800 Relay Module
• Flame Sensor Compatibility: Gas, Oil: C7027A, C7035A, C7044
• Test Jacks: Available to measure amplifier flame signal voltage
• Labeling: Color-coded labels for flame detection types
