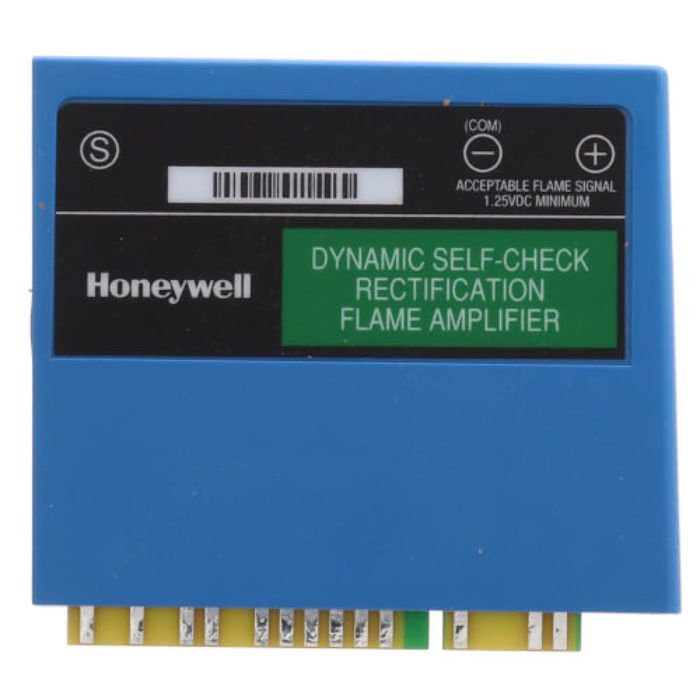

Honeywell R7847C1005/U Flame Signal Amplifier

Product Description

The Honeywell R7847C1005/U is a flame signal amplifier designed for optimized performance in burner combustion controls. It operates with a flame response time of either two or three seconds. This device analyzes the flame signal strength, making it compatible with gas, oil, and coal systems using UV flame sensors like the C7012E/F.

• Dynamic self-check functionality
• Flame signal strength ranges from 0.0 to 5.0 VDC
• Color-coded labels for easy identification

Product Highlights

This amplifier integrates seamlessly with 7800 Series Relay Modules and tests flame signal voltage through dedicated test jacks, ensuring precise monitoring of the flame signal.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R7847C1005/U
• Minimum Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Flame Failure Response Time: 2.0 or 3.0 seconds
• Flame Sensor Compatibility: Gas, Oil, Coal (UV Flame Sensor C7012E/F)
• Primary Safety Control: 7800 Series Relay Modules
• Flame Signal Test Jacks: Yes
