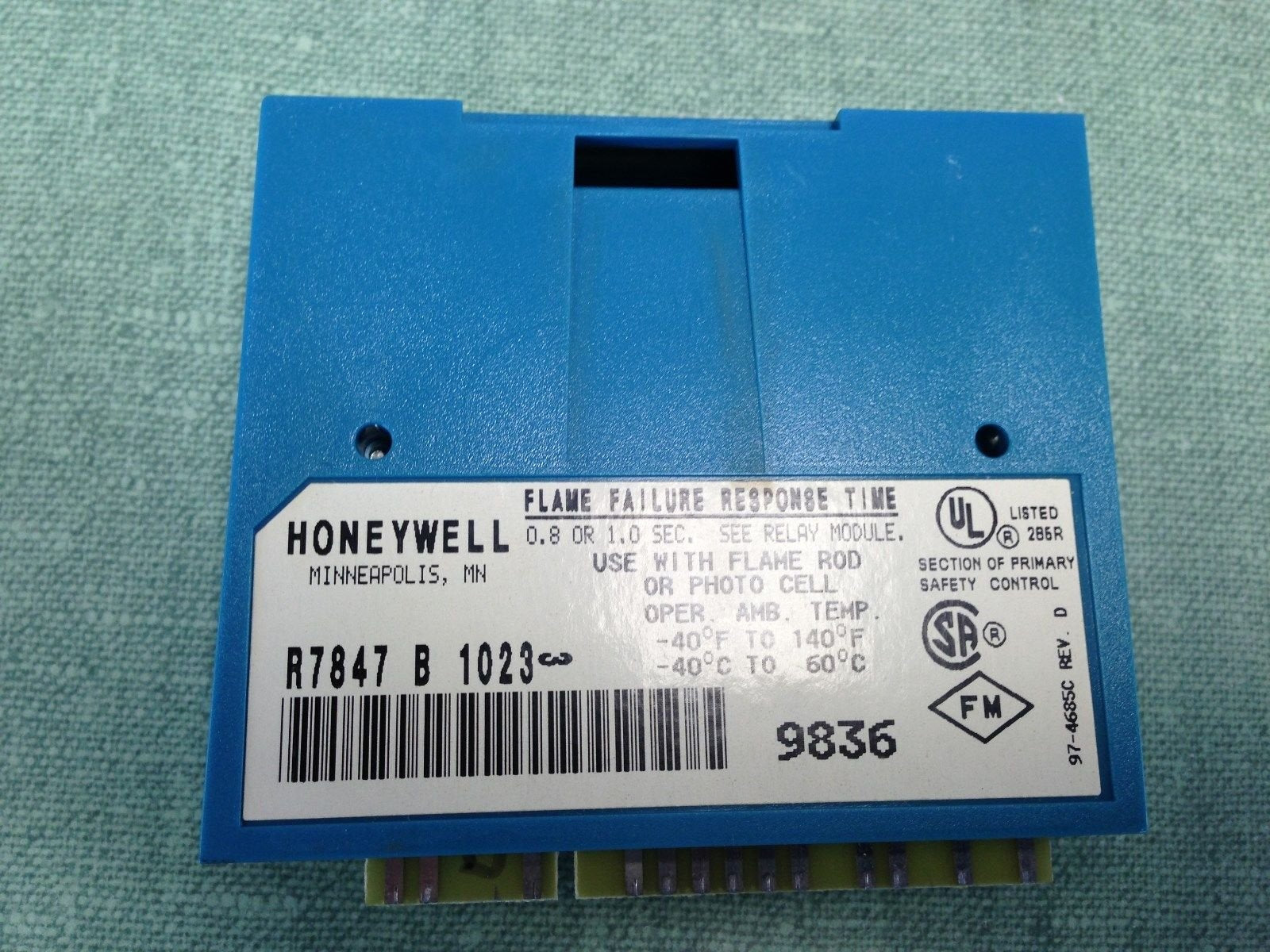

Honeywell R7847B1023 Flame Signal Amplifier 0.8 or 1.0 Second Response Time

Product Description

The Honeywell R7847B1023 Flame Signal Amplifier is an essential device for modern HVAC systems, ensuring efficient operation through precise flame monitoring. Ideal for use with 7800 series and R7140 relay modules, this amplifier offers a swift response time of either 0.8 or 1.0 second to flame signals, facilitating rapid system adjustments.

• Fast response to flame detector signals
• Compatible with 7800 series and R7140 relay modules
• Dynamic self-check features enhance system reliability

Product Highlights

This amplifier is engineered to improve the safety and efficiency of heating systems. It verifies flame presence, conducts system checks, and integrates with various Honeywell flame detectors.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R7847B1023

Technical Specifications

• Type: Rectification or Ampli-Check
• Flame Failure Response Time: 0.8 or 3.0 seconds
• Flame Signal Strength: 0.0 to 5.0 Vdc
• Connectivity: Plug into 7800 relay module via PCB edge connector
• Additional Feature: Flame signal test jacks for voltage measurement
