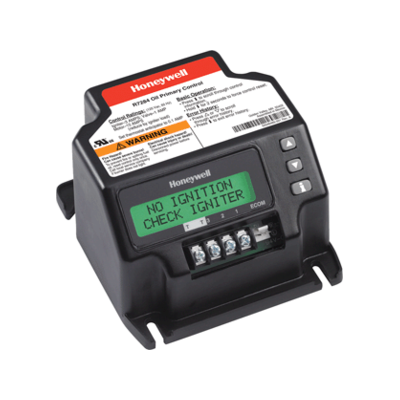

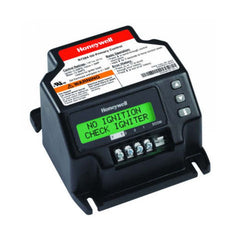

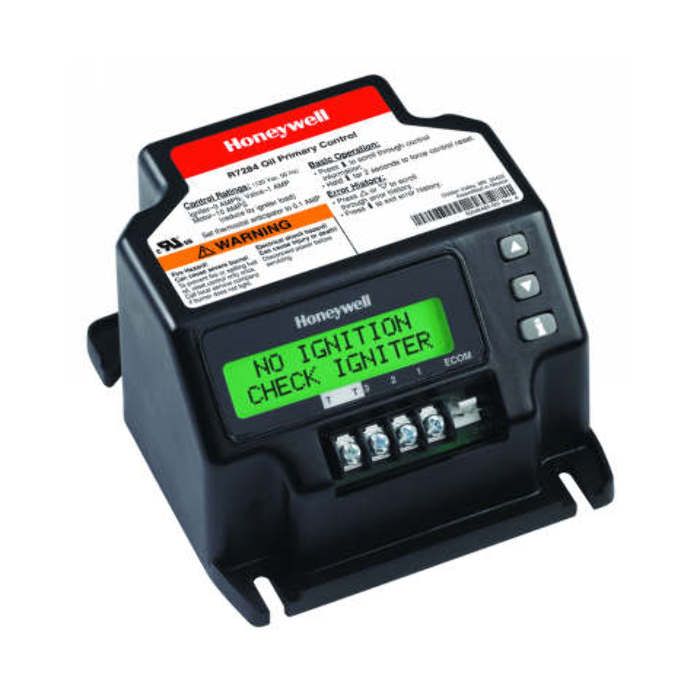

Honeywell R7284U1004/U Universal Electronic Oil Primary 120V (Each) R7284U1004/U

Product Description

Honeywell R7284U1004/U is a universal electronic oil primary control for oil-fired burners that provides programmable parameters and an LCD display for status and configuration. It supports interrupted and intermittent ignition, operates burner motor, spark igniter and optional oil valve with a cad cell flame sensor, and offers selectable 15, 30, or 45 second lockout timing with configurable valve and blower delays for hydronic and forced-air systems.

• Programmable parameters with two-line LCD display for settings and diagnostics
• Selectable 15, 30, or 45 second lockout timing and configurable valve and blower delays
• Electrical connections for burner motor, oil valve, ignition, cad cell, limit, thermostat and alarm; mounts in junction box on main burner

Product Highlights

120V line-voltage operation, 44.4A rating, two-line LCD, selectable 15/30/45s lockout, UL and cULus listed

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: R7284U1004/U

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: R7284U1004/U
• Product Name: Universal electronic oil primary control
• Input Voltage: 120V
• Amperage: 44.4 A
• Lockout Timing: Selectable 15, 30, or 45 seconds
• Display: Two-line LCD display
• Programmable Parameters: Yes
• Connections: Burner motor, oil valve, ignition, cad cell, limit, thermostat, alarm
• Mounting Type: Junction box on main burner
• Temperature Range: -40 to 147 F (-40 to 64 C)
• Listings: UL and cULus listed
• Dimensions: 4-5/32" x 4-11/32" x 2-1/2"
• Item Weight: 1.50 lbs
• UPC: 085267344708
• ASIN: B072KKVTBX
• Date First Available: June 14, 2017
• Application: Boilers, forced-air furnaces, water heaters, hydronic and forced-air systems
• Features: Interrupted and intermittent ignition control; EnviraCOM bus alarm notification; Works with low-voltage and optional high-voltage thermostats
• Product Highlights: 120V line-voltage operation, 44.4A rating, two-line LCD, selectable 15/30/45s lockout, UL and cULus listed
