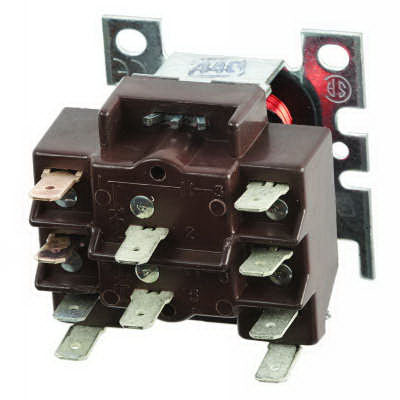

Honeywell R4222B1082/U General Purpose Switching Relay 120V

Product Description

The Honeywell R4222B1082/U is a general purpose switching relay designed for refrigeration and air conditioning equipment. This reliable relay features a 120V coil rating and is suitable for a variety of applications, including vending machines and appliances.

• Heavy duty switching capability
• Single pole double throw (SPDT) design
• Quick-connect terminals for easy installation

Product Highlights

This relay provides robust functionality with molded terminal numbers for straightforward wiring identification. Its laminated magnet construction ensures higher efficiency, while the open coil design promotes cooler operation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R4222B1082/U

Technical Specifications

• Coil Voltage: 120 VAC
• Contact Form: SPDT
• Terminal Type: Quick-Connect
• Number of Poles: 1
• Frequency Rating: 50/60 Hz
• Temperature Rating: -20 to 150 degrees F
• Dimensions: 2-5/32 inches W x 2-3/8 inches D x 1-7/8 inches H
• Country of Origin: MX
