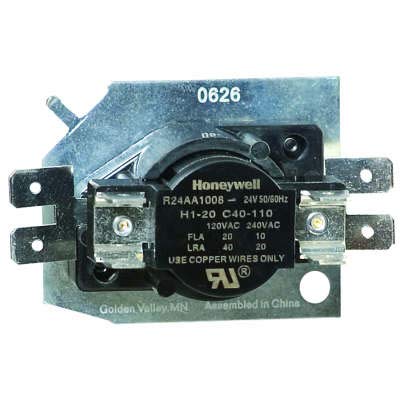

Honeywell R24AA1008 Heat Sequencer 24V 1 Switch 20 Sec Delay

Product Description

The Honeywell R24AA1008 Heat Sequencer is an essential component for HVAC systems. This sequencer ensures that electrical circuits are activated in a specific order to properly manage heating elements. Designed with a 24V control voltage, it operates with a 1-20 second delay to switch on and a 40-110 second delay to switch off. It supports resistive loads up to 25A.

• Ensures proper sequencing of HVAC heating elements
• Operates with a 20 seconds delay on switch on
• Handles resistive loads up to 25A

Product Highlights

This Honeywell heat sequencer is perfect for baseboard heaters, duct heaters, electric furnaces, and suspension heaters. It features quick-connect terminals and a compact size of 2 inches by 3 inches by 3 inches, allowing for versatile mounting options.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: R24AA1008

Technical Specifications

• Series: R24
• Dimensions: 2 inches H x 3 inches W x 3 inches D
• Mounting Type: Any Position
• Switch On Time: 1 - 20 sec Delay
• Control Voltage: 24 V
• Switch Off Time: 40 - 110 sec Delay
• Inductive Rating: 14A at 120 VAC
• Resistive Rating: 25A
• Number of Timings: 1
• Pilot Duty Rating: 125 VA
• Number of Switches: 1
