Honeywell Q605H1024/U damper linkage for Mod IV motor and damper 1/2 inch shaft

Product Description

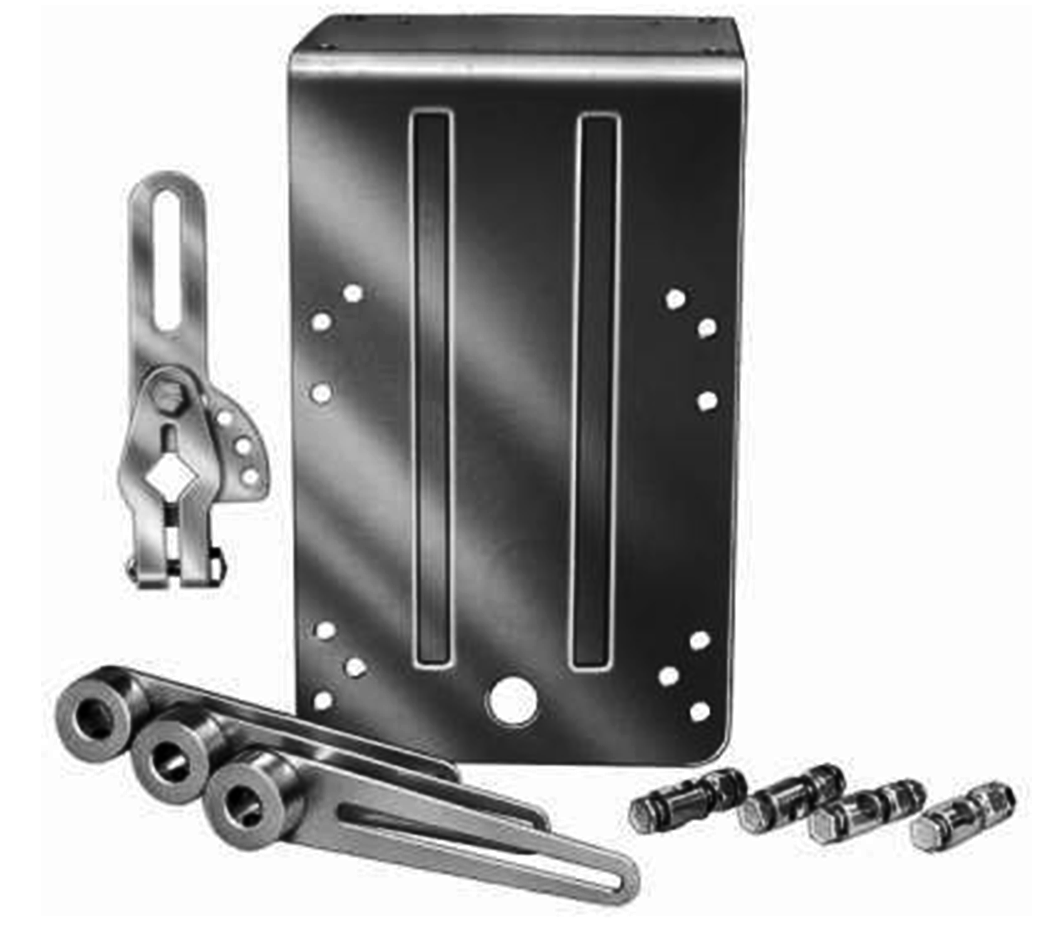

The HONEYWELL Q605H1024/U is a damper linkage kit designed for Modutrol Motors and Mod IV motors and dampers. It connects a Modutrol motor to a standard damper or set of dampers, enabling precise control of duct airflow. This linkage is adjustable to any desired degree of damper opening and supports both internal and external mounting. The kit includes a motor bracket, three damper arms, a motor crankarm, four balljoints, a lefthand drive ear, and a crankarm adapter, accommodating 1/2 inch shafts.

• Adjustable to any desired degree of damper opening
• Connects Modutrol motor to standard or multiple dampers for airflow control
• Suitable for internal or external mounting, includes motor bracket and various linkage components

Product Highlights

This linkage kit provides precise airflow control for Modutrol and Mod IV motors, featuring adjustable damper opening and versatile mounting options.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q605H1024/U

Technical Specifications

• Category: Commercial Building Controls
• Product Type: Dampers and Damper Actuators
• Style: Dampers and Damper Actuators
• Mounting Type: External; Internal
• Linkage Type: Damper
• Actuator Compatibility: Modutrol Motor
• Shaft Diameter: 1/2 in.
