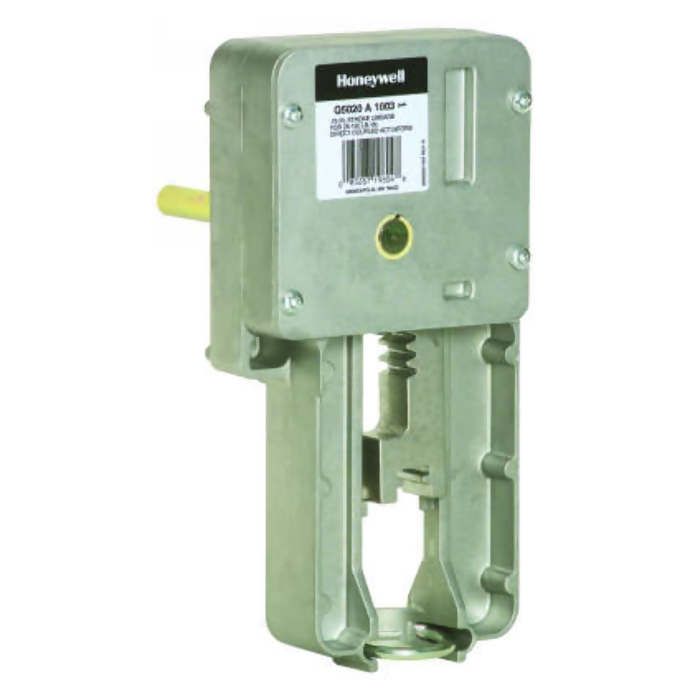

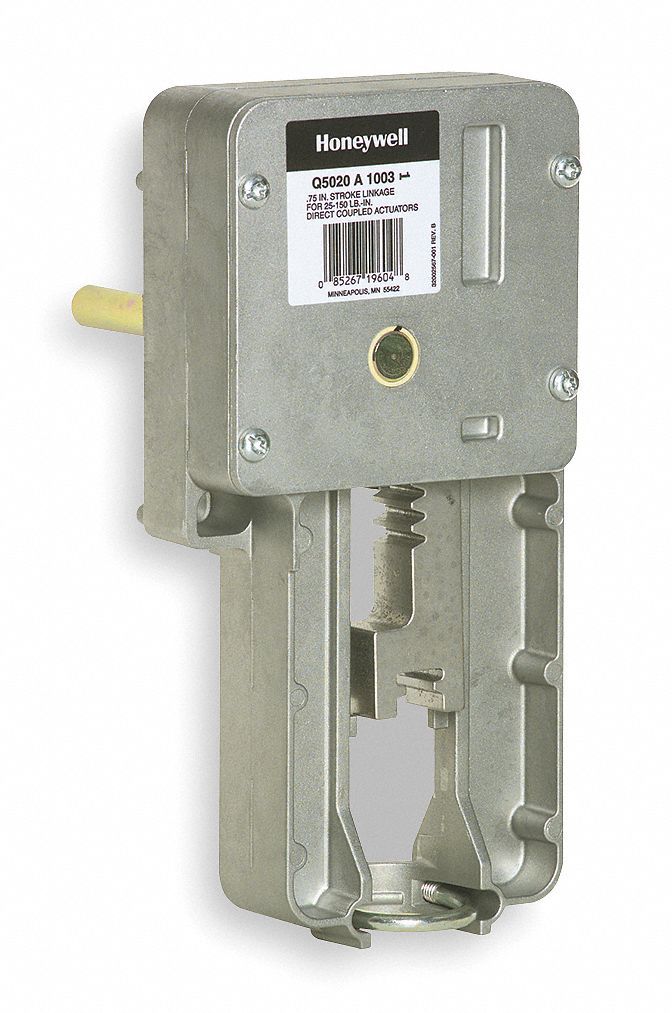

Honeywell Q5020D1007/U Valve Linkage

Product Description

The Honeywell Q5020D1007/U is a valve linkage designed for valve stroke applications. It connects a Honeywell direct coupled actuator (DCA) to steam or water globe valves, compatible with two-way and three-way globe valves up to 3 inches (DN80). This linkage is suitable for use with 25, 50, and 142 lb-in spring return and 35, 70, 150, and 300 lb-in non-spring return direct coupled actuators. It offers flexible actuator mounting orientation and can be used with specific non-Honeywell valves.

• Quick and simple installation with no disassembly required.
• Compatible with various spring return and non-spring return direct coupled actuators.
• Features heavy-duty self-lubricating powdered metal rack and pinion construction.

Product Highlights

This Honeywell Q5020D1007/U valve linkage facilitates connection between direct coupled actuators and two-way or three-way globe valves, offering robust and maintenance-free operation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q5020D1007/U

Technical Specifications

• Drive Shaft Diameter: 1/2 in.
• Compatible Valves: T.A.C., Siemens, Johnson
• Mounting: Linkage mounts directly to valve bonnet; actuator mounts on linkage
• Linkage Type: Valve
• Actuator Compatibility: Direct Coupled Actuator
• Bonnet Size: 1 3/8 in.
• Stroke: 1/2 in.
• Category: Commercial Building Controls
• Manufacturer: Honeywell
• Product Type: Valves and Valve Actuators
• Part Number: Q5020D1007/U
• RoHS Status: Lead free / RoHS Compliant
