Honeywell Q5001D1000/U Valve Linkage for Mod III, Mod IV Motors, -40 Degree - 150 Degree F Temperature Range

Product Description

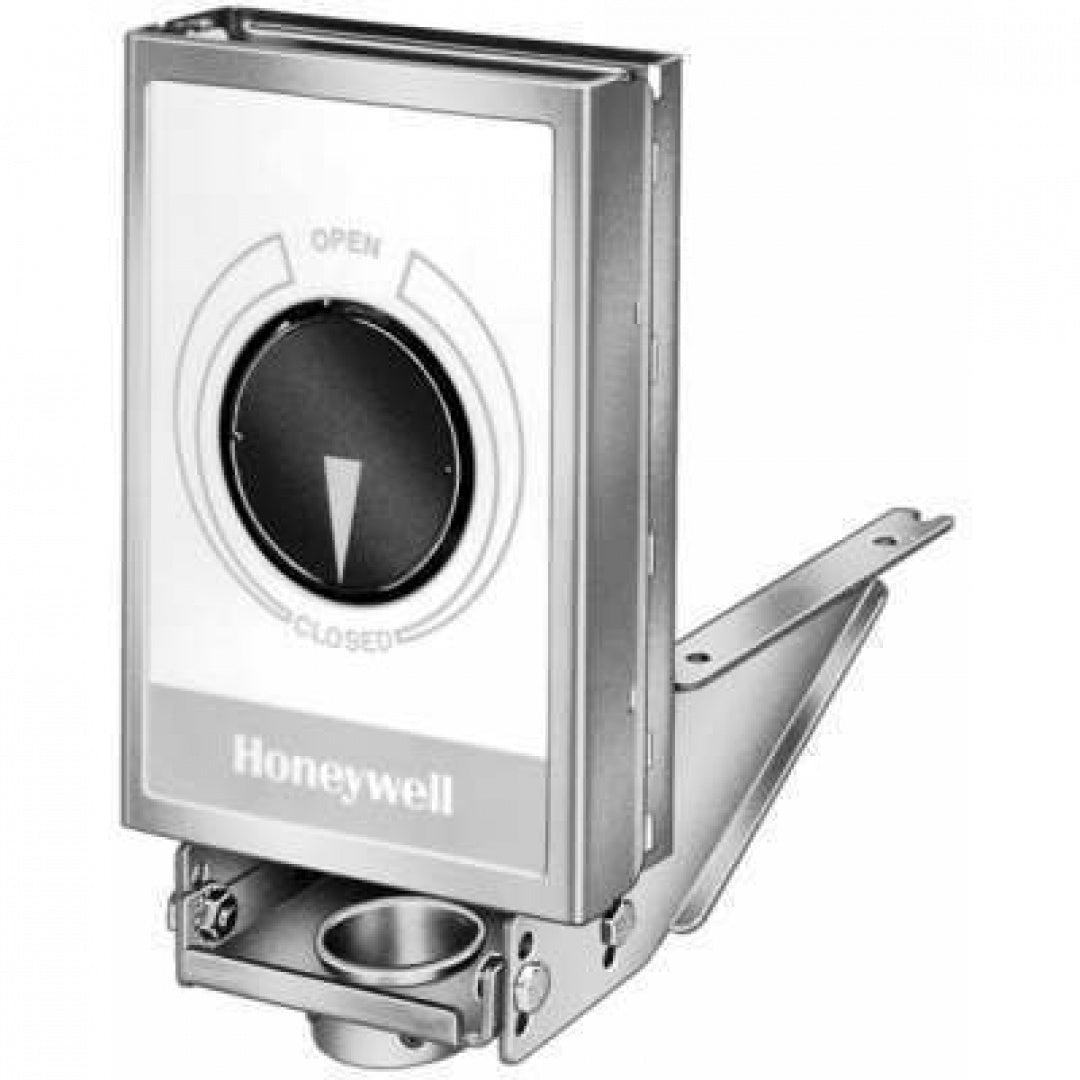

The Honeywell Q5001D1000/U Valve Linkage connects a Modutrol motor to a 2-way or 3-way valve, designed primarily for V5011 or V5013 steam and water valves. It replaces older Q601 and Q618 valve linkages, offering enhanced functionality and compatibility.

• Easy-to-read position indicator
• Available in three stem force models: 80 lb, 160 lb, and 320 lb
• Anti-spin clips for added security

Product Highlights

This valve linkage mounts directly to the valve bonnet with the motor attaching to the linkage bracket. The reversible cams allow for field selection of normally open or normally closed valve operation, providing versatile control options. It ensures tight close-off without excessive motor strain, making it reliable for various applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Country of Origin: United States
• Unit count: 1.0

Technical Specifications

• MPN: Q5001D1000/U
• Category: HVAC Controls
• Product Type: Valve Linkage
• Stem Force: 80 lb, 160 lb, 320 lb
• Temperature Range: -40 F to 150 F
• Package Dimensions: 29.9 H x 16.1 L x 23.3 W (centimetres)
• Package Weight: 3.129 kilograms
