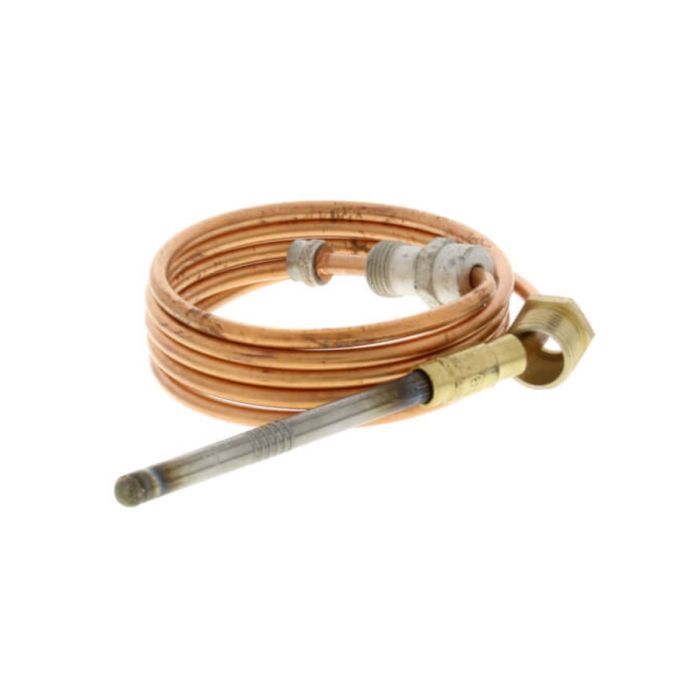

Honeywell Q390A1061/U Thermocouple 30 mV (36 in.) Q390A1061/U

Product Description

The Honeywell Q390A1061/U thermocouple senses pilot flames on standing-pilot gas-fired systems and produces approximately 30 mV with a 36 in. lead. It features an 11/32-32 male nut connector, very low resistance (0.02 ohm), and includes an adapter and push-in clip for installation. The device generates millivoltage from the heated tip and is suited for pilot burner and Pilotstat safety control power units.

• Produces 30 mV output (open-circuit ~26 to 32 mV) for pilot flame sensing
• 36 in. lead with 11/32-32 male nut connector and 0.02 ohm resistance

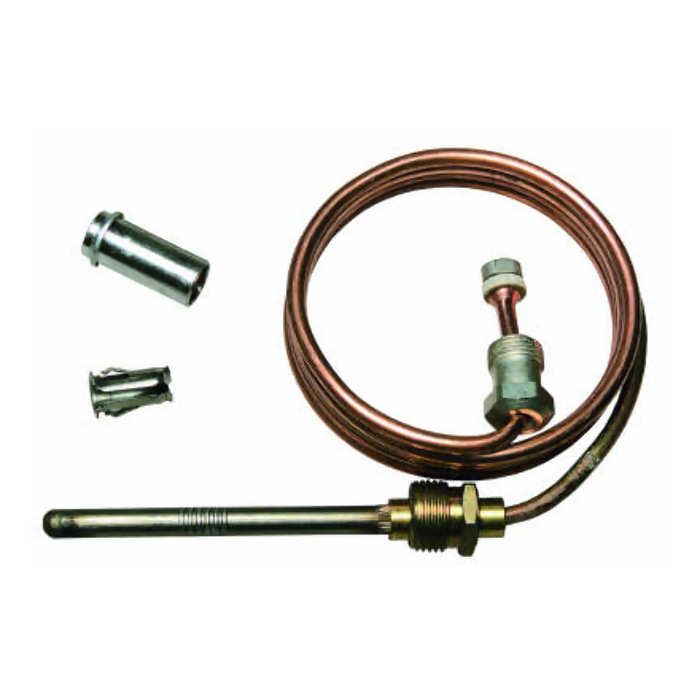

• Includes adapter and push-in clip; spade or quick-connect terminals available

Product Highlights

Pilot flame sensing thermocouple for standing-pilot gas systems; 36 in. lead; 11/32-32 male nut; 30 mV output.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q390A1061/U
• Country of Origin: Import

Technical Specifications

• Brand: Honeywell
• MPN: Q390A1061/U
• Product Type: Thermocouple
• Output Voltage: 30 mV (typical)
• Open Circuit Output: 26 to 32 mV
• Lead Length: 36 in.
• Connector: 11/32-32 male nut
• Connection Type: Male nut
• Resistance: 0.02 ohm
• Includes: Adapter and push-in clip
• Terminals: Spade or quick-connect available
• Application: Pilot burner; standing-pilot gas-fired heating system; safety control power units
• Fuel Compatibility: Natural gas; Liquid propane
• Approval: CSA
• Maximum Hot-Junction Temperature: 1400 F
• UPC / GTIN: 085267069281
• Manufacturer: Honeywell
