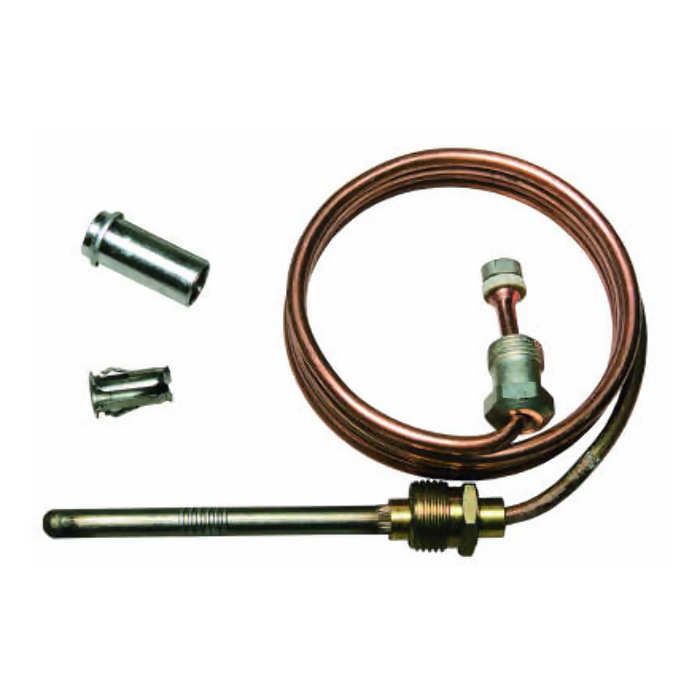

Honeywell Q390A1046/U Thermocouple 30 mV LP/Natural Gas 24 in L

Product Description

The Honeywell Q390A1046/U Thermocouple generates a thermoelectric current to sense a pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base, generating a small amount of DC power, measured in millivolts.

• Push-in clip, split nut or adapter assembly available for easy pilot burner installation
• Male nut connector for Pilotstat safety control power units
• 26 to 32 mV open circuit output

Product Highlights

This thermocouple features a male nut connector for Pilotstat safety control power units and is suitable for LP/Natural Gas applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q390A1046/U
• Country of Origin: MX

Technical Specifications

• Gas Type: LP/Natural Gas
• Package Length: 24 IN
• Voltage Rating: 30 mV
• Product Category: Thermostats and Controls
• UPC: 085267069267
• Product Line: Q390
• Dimensions Connection Size: 17/48 Inch
• Product Weight: 0.13 Pounds
• Voltage: 30 mV
• Lead Length: 24 in.
• Connector: 11/32 32 Male Connect Nut
